C9-LFP105W

The EcoPower C9-LFP105W has a capacity of 105Ah and dimensions of 130.3mm*36.35mm*200.5mm. It can provide you with an adequate and stable energy supply, whether it is in the field of domestic energy storage or commercial and industrial energy storage.


ItemSpecification

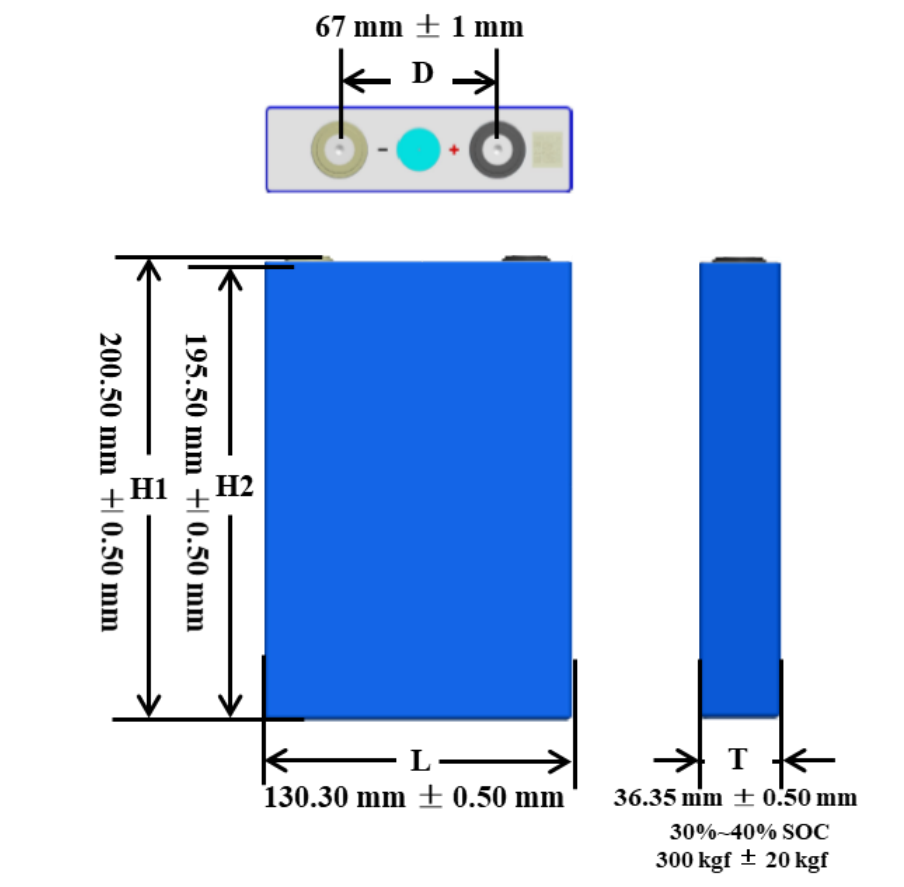

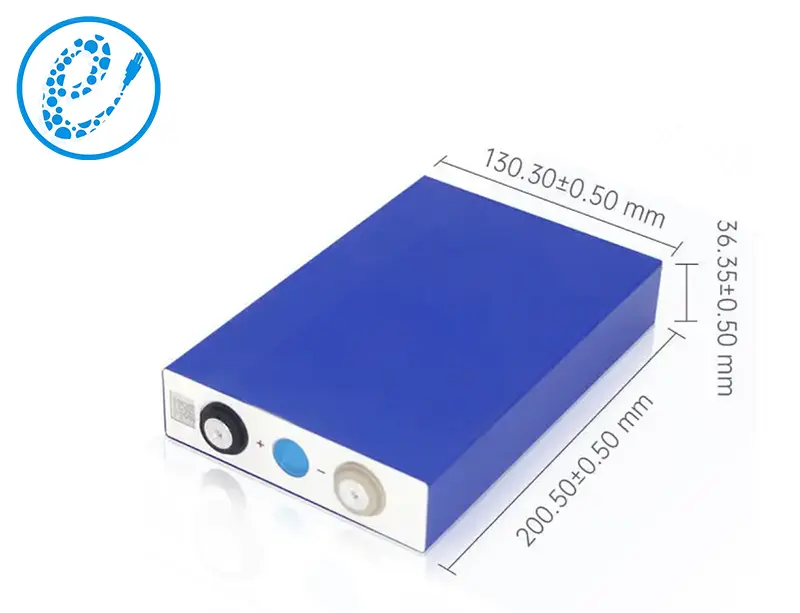

Dimension130.3mm*36.35mm*200.5mm
Weight1980 g ±60 g
Min.   capacity105Ah (1C) @ 25℃
Min.   energy336Wh (1C) @ 25℃
Recommended SOC usage window10   ~ 90%
TerminalWelding Terminal
Impedance(1kHz)≤1mΩ
VoltageMax.3.65V
Nominal3.2V
Min.2.0V (T≤0℃)
    2.5V (T>-0℃)
CurrentStandard   charging current52.5A
Standard discharging current52.5A
Energy densityGravimetric169.69Wh/kg
Volumetric358.81Wh/L
Temp. ConditionOperation   (Charge)0~ 65℃
Operation (Discharge)-35 ~ 65℃
Storage-20 ~ 45℃
Cycle Life1C/1C,   100% DOD 25℃4000   cycles
Abuse testOvercharge,   Over-discharge, Short, HeatGB/T   31485-2015
