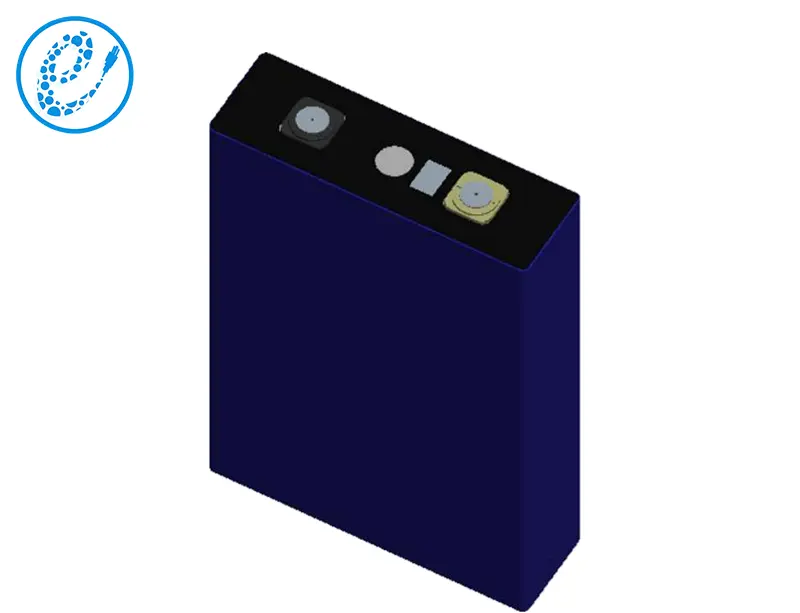

The LFP200Ah LiFePO4 cell offers exceptional capacity, energy density, and performance, making it a reliable and versatile energy storage solution for various applications where reliable and high-capacity power is essential.
| Item | Specification | |
| Dimension | 54*173*207 mm | |
| Min. capacity | 200Ah @1C, 25℃ ± 2℃ | |
| Min. energy | 640Wh | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.4mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V | |
| Current | Maximum continuous charge power | 1P |
| Maximum continuous discharge power | 1P | |
| Energy density | Gravimetric | 156Wh/kg |
| Volumetric | 330Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Storage | -30 ~ 55℃, 20-50%SOC，≤90%RH | |
| Cycle Life | 80%SOH, 25℃ | 8000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
