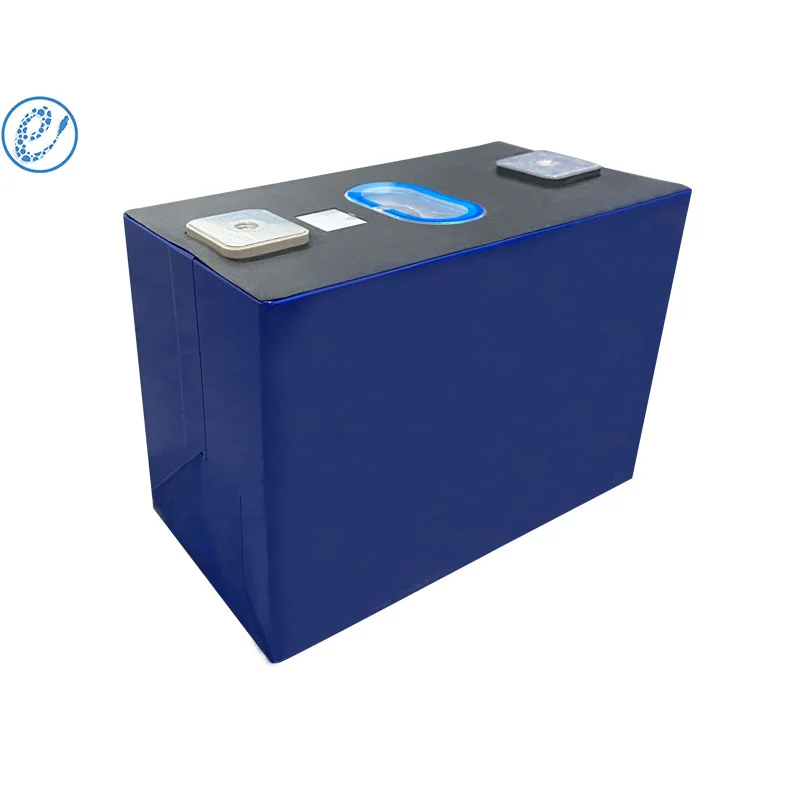

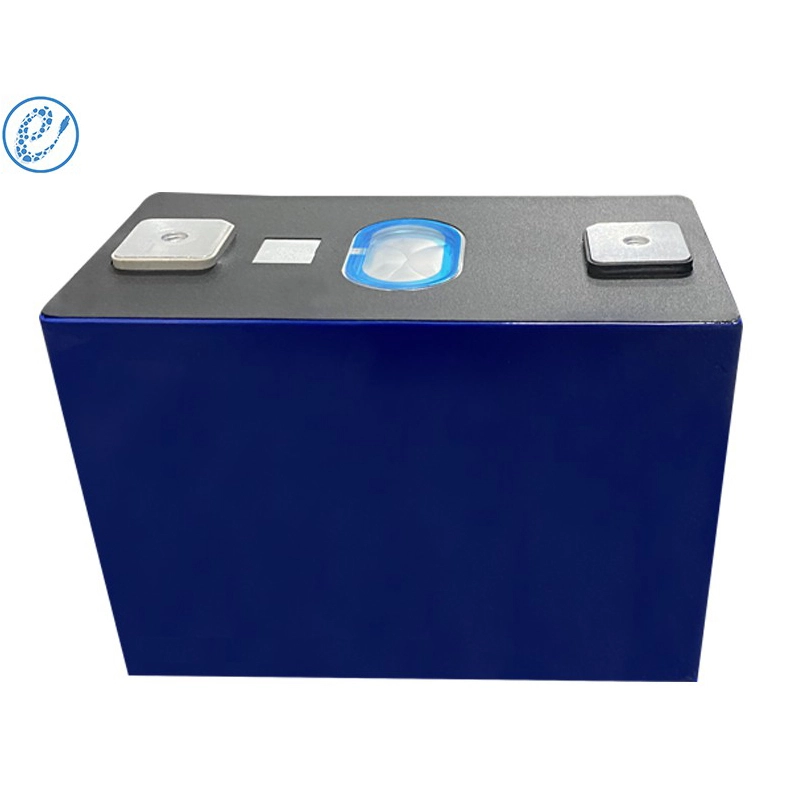

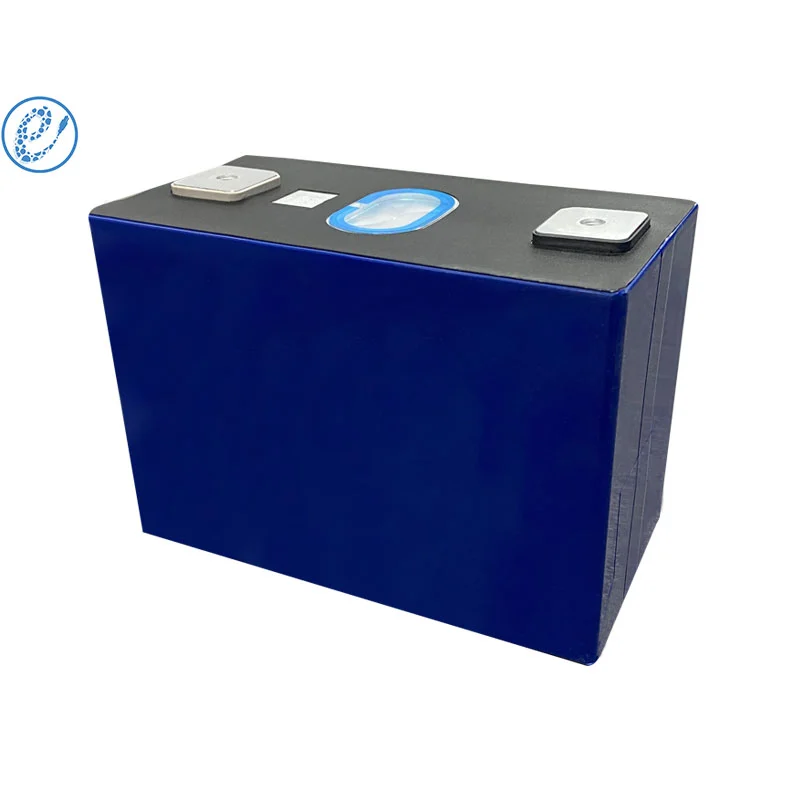

The 135Ah LiFePO4 is a powerful and reliable battery. It is lightweight and offers a high energy density, making it perfect for a variety of uses. This lithium ion phosphate battery is ideal for use in electric vehicles, solar energy systems, and other applications.
| Item | Specification | |

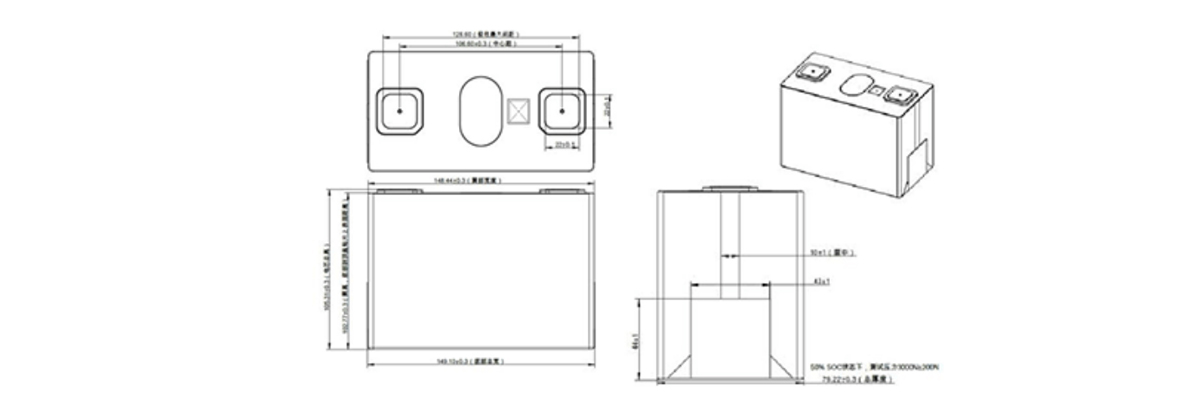

| Dimension (Welding terminal) | 79.3mm *148.6mm *105.2mm | |
| Weight | 2.58±0.1kg | |
| Min. capacity | 137Ah(1/3C) 135Ah (1C) | |
| Min. energy | 441.14Wh (1/3C) | |
| SOC window | 10 ~90% | |
| Terminal | Welding/Screw terminal-Nut | |
| Impedance (1kHz) | ≤0.5mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.17V (1C) 3.22V (1/3C) | |
| Min. | 2.5V (T＞0℃) 2.0V (T≤0℃） | |
| Current | Maximum Pulse Charging Current | 280A |
| Maximum Pulse Discharging Current | 479A | |
| Energy density | Gravimetric | 170Wh/kg(1/3C) |
| Volumetric | 355Wh/L(1/3C) | |
| Temp. Condition | Operation (Charge) | 0~55℃ |
| Operation (Discharge) | -30~55℃ | |
| Storage | -20~55℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Charge to 50%SOC and storage at 25+2°C for 1 month | ≤2% |
| Cycle Life | 0.5C/1C,80%DOD 25℃ | 3500 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
