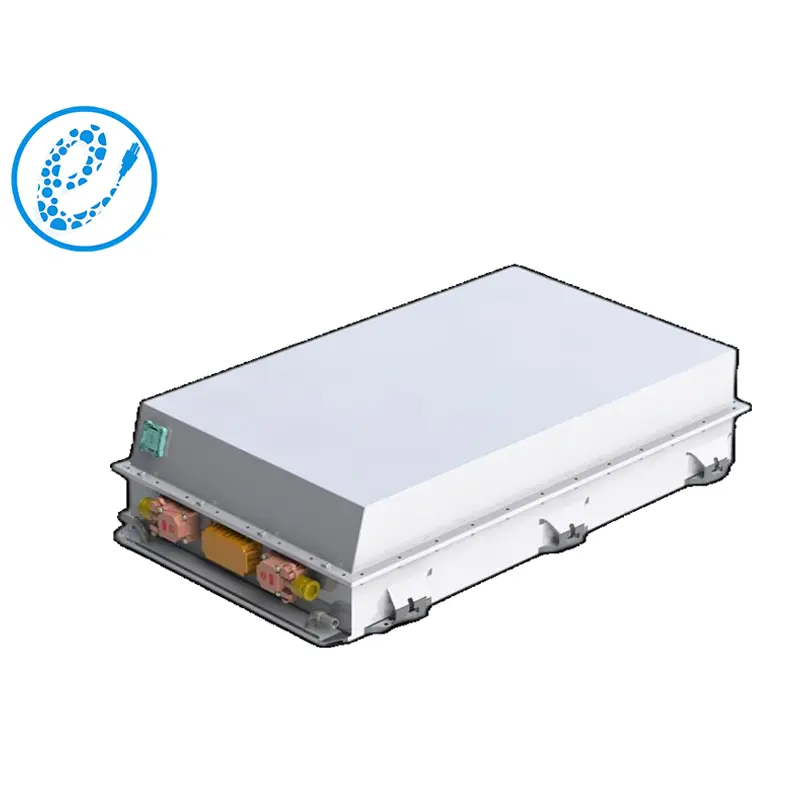

PS020510-153.6V206A(206AH1P48S) lithium battery pack is engineered for versatility, accommodating a wide range of applications effortlessly. From powering electric vehicles to supporting industrial equipment, this li ion pack battery seamlessly adapts to your diverse energy needs. Experience the flexibility to tailor your energy solutions to your specific requirements.
| No. | Items | EP-LFP 206Ah STADARD PACK | Note | |
| PS020510-153.6V206A | ||||
| 206AH1P48S | ||||
| 1 | Nominal voltage(V) | 153.6 | ||
| 2 | Operating voltage(V) | min | 120 | |
| 3 | max | 175.2 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 31.6 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 206 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 103 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 206 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1064 | ||
| Dimension B (mm) | 624 | |||
| Dimension H (mm) | 240 | |||
