The MS1723-21.96V104Ah（104Ah1P6S） has a standard capacity of 304Ah and a standard voltage of 21.96V. The 21.96V output voltage of the LiFePO4 battery charger module provides power supply for a wide range of applications.
It can meet a wide range of application requirements and is ideal for power tools, electric vehicles, and renewable energy systems.
.png "ms1723-21_(1).png")
| No. | Items | EP-NCM104Ah STANDARD MODULE | Note | |
| MS1723-21.96V104A | ||||
| 104AH1P6S | ||||
| 1 | Nominal voltage(V) | 21.96 | ||
| 2 | Operating voltage(V) | min | 16.8 | |
| 3 | max | 25.2 | ||
| 4 | Nominal capacity(Ah) | 104 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 2.284 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P6S | ||
| 7 | SOC operating range（%） | 10~90 | ||
| 8 | Insulation requirements(MΩ) | ≥20 | ||
| 9 | Module cooling method | Natural cooling | ||
| 10 | Module heating method | No | Or heating film | |
| 11 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 12 | Dimension L （mm） | 355 | ||
| Dimension B （mm） | 151.5 | |||
| Dimension H （mm） | 108 | |||

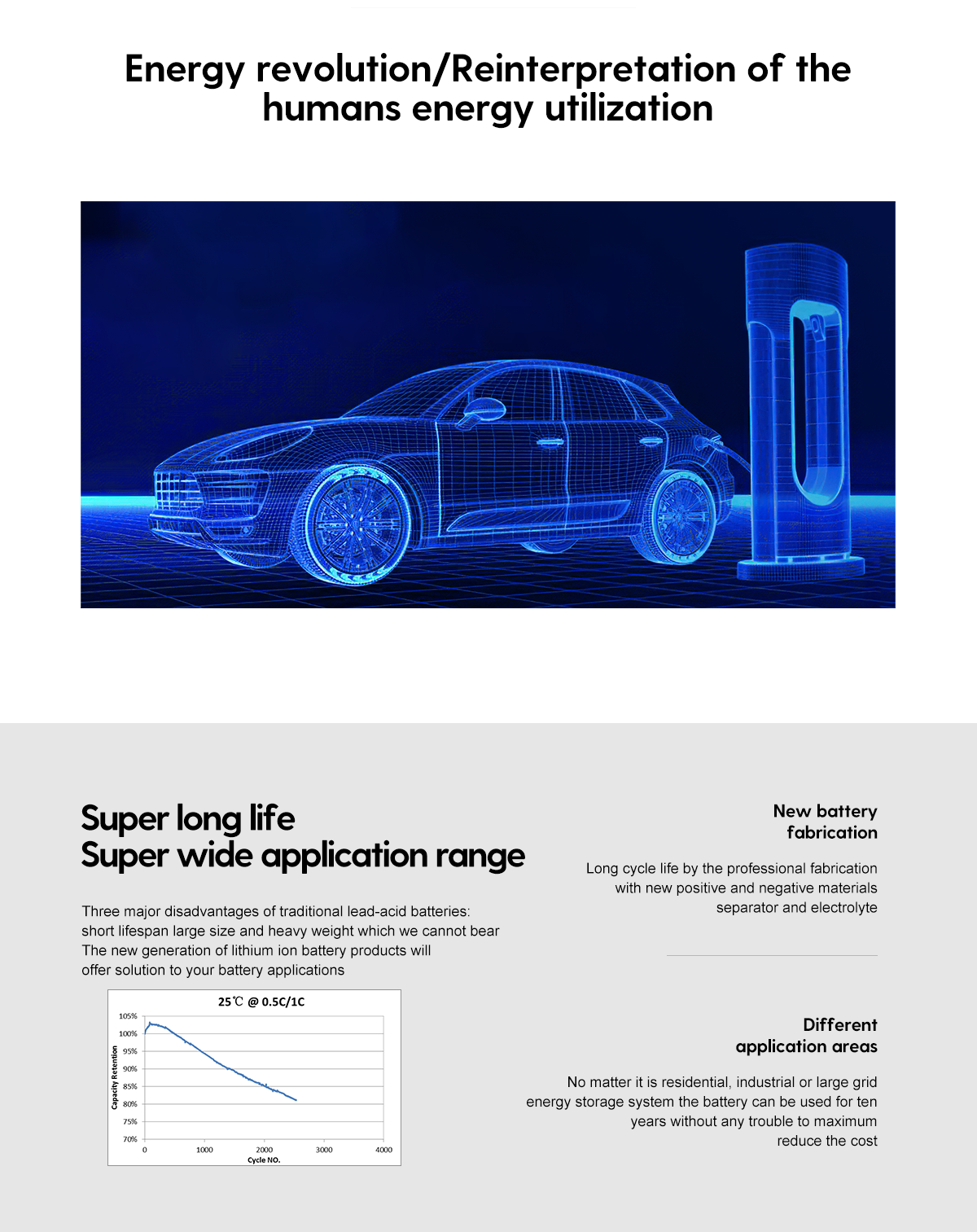

.png "ms1723-21_(3).png")

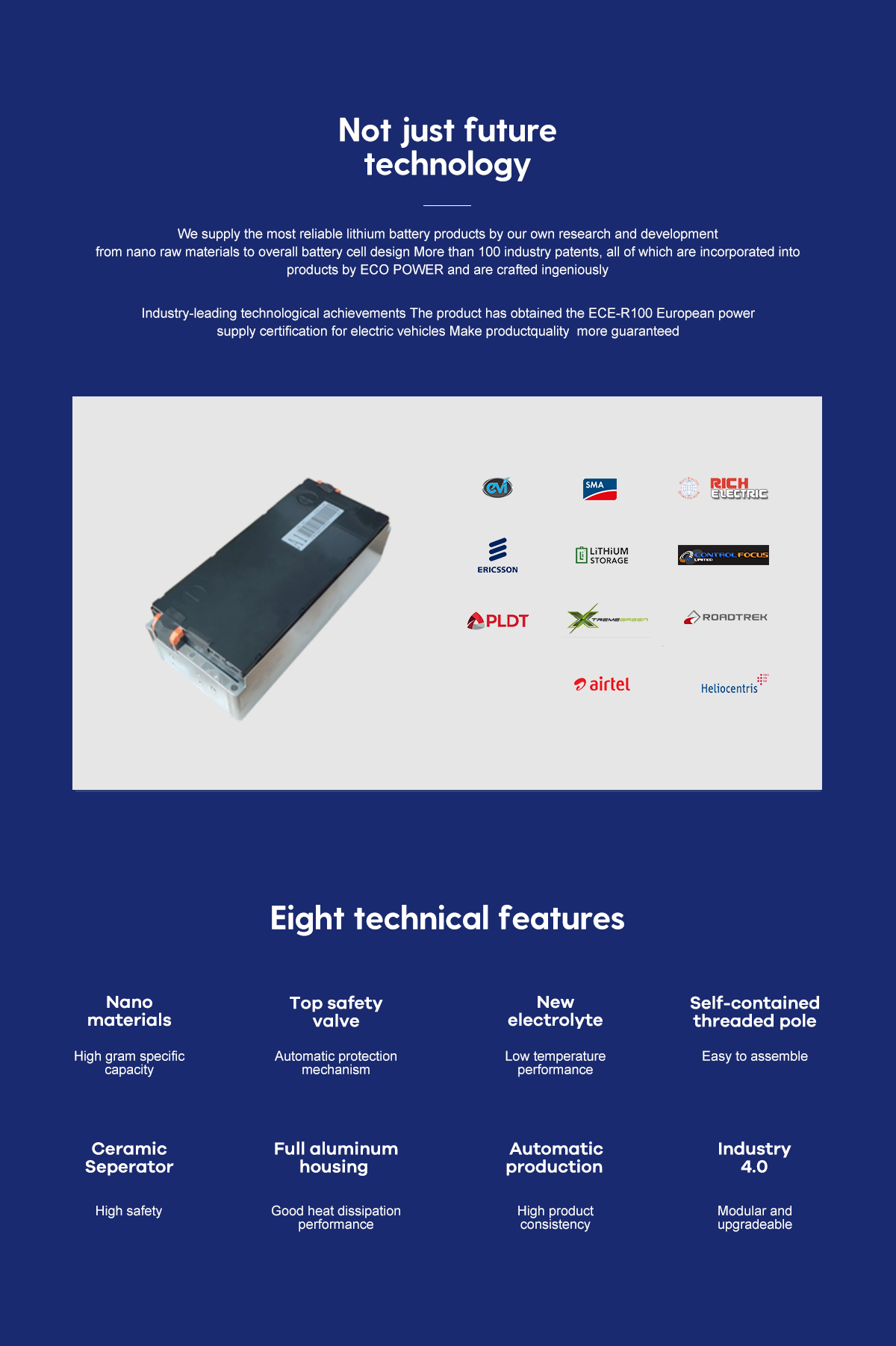

.png "ms1723-21_(4).png")

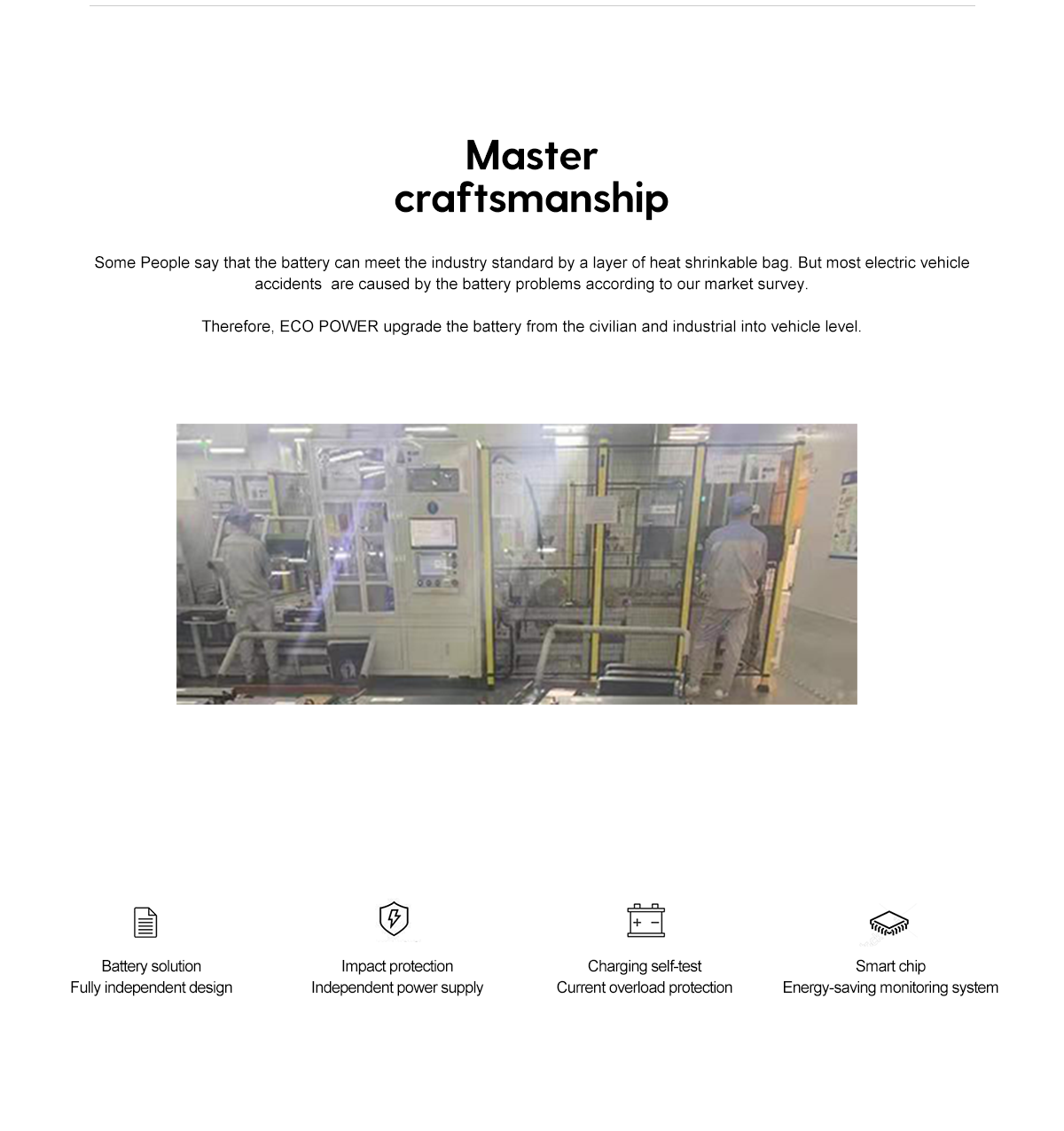

.png "ms1723-21_(5).png")

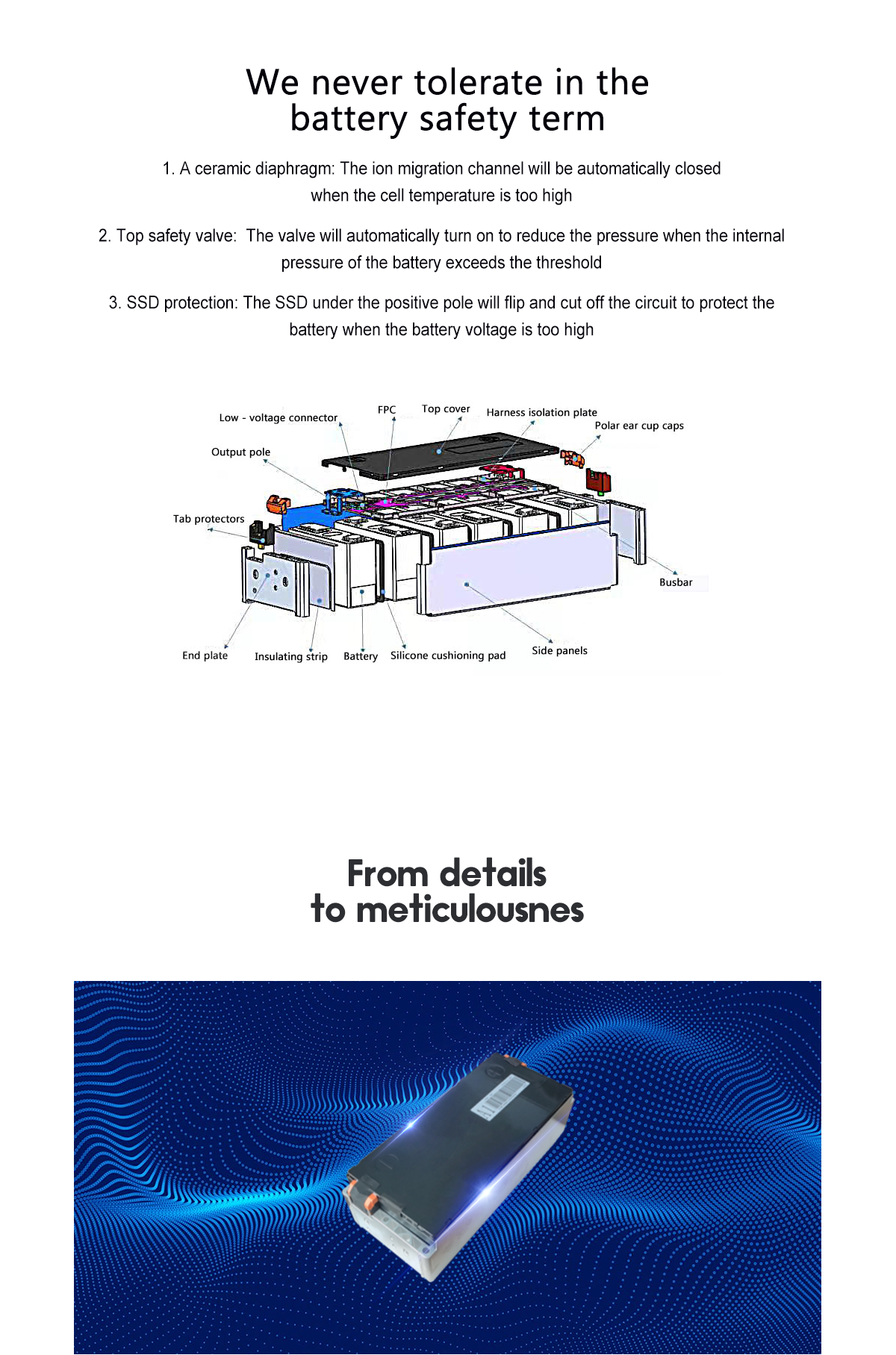

.png "ms1723-21_(6).png")

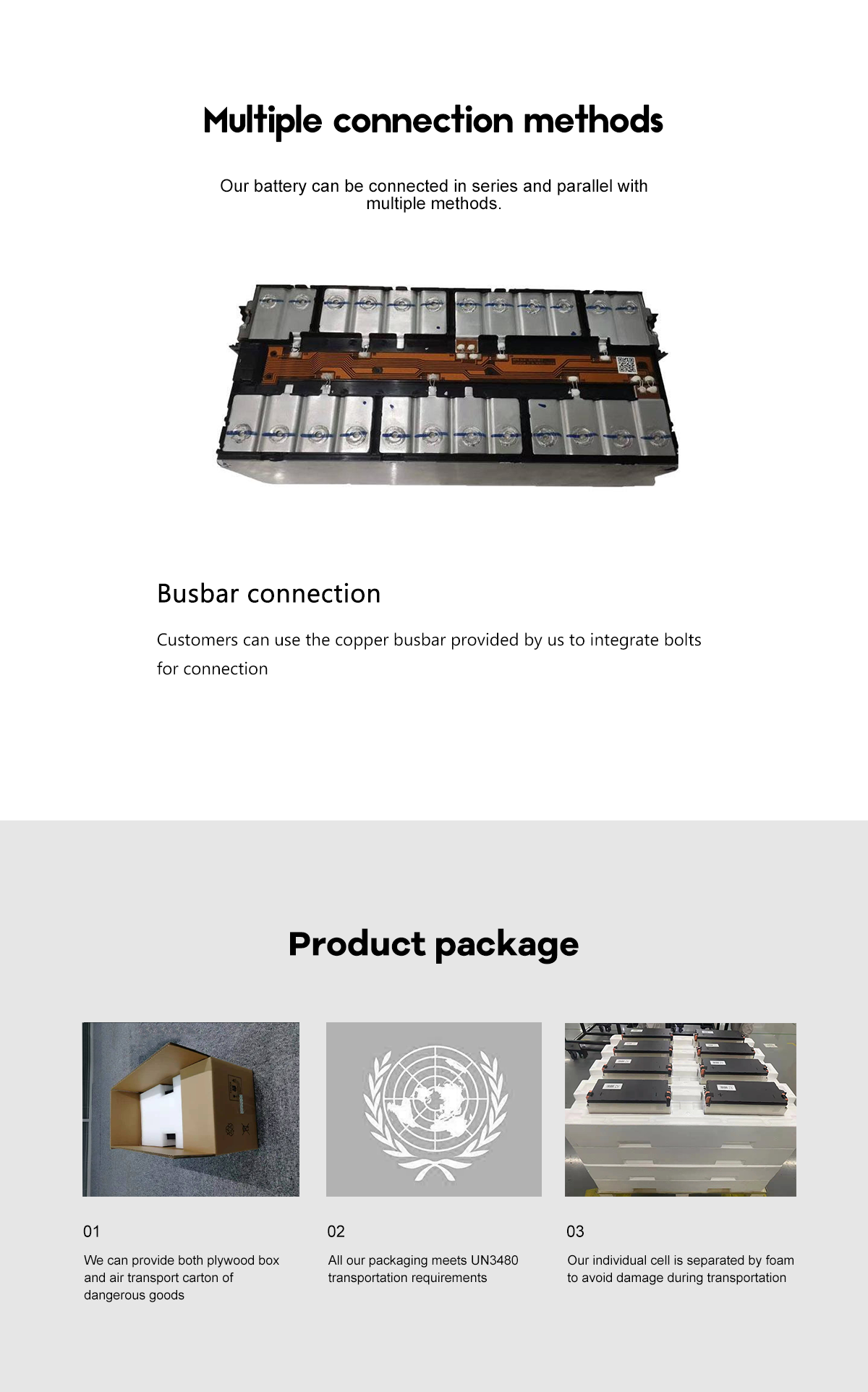

.png "ms1723-21_(7).png")
.png "ms1723-21_(8).png")
.png "ms1723-21_(9).png")
