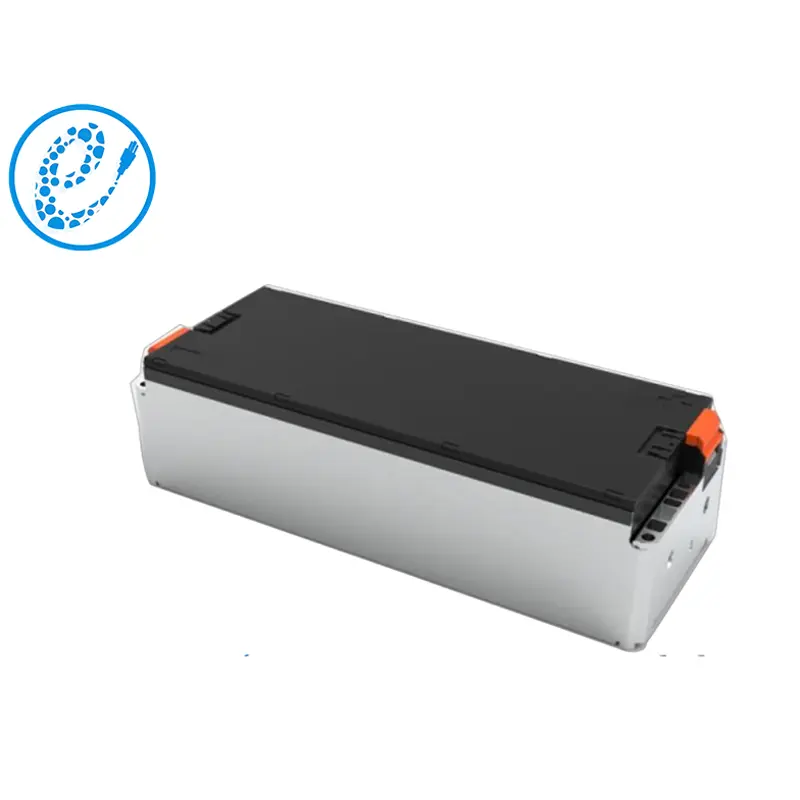

MCXX23-52.08V50A-(NCM50AH1P14S) has a battery capacity of 50AH and a rated voltage of 52.08V, which provides stable performance and long-lasting power for a variety of applications.For example, electric boats, use as a backup power source and so on.
| No. | Items | MCXX23-52.08V50A | Note | |
| 50Ah1P14S | ||||
| 1 | Nominal voltage(V) | 52.08 | ||
| 2 | Operating voltage(V) | min | 39.2 | |
| 3 | max | 60.9 | ||
| 4 | Nominal capacity(Ah) | 50 | 25°C, 1/3C | |
| 5 | Nominal energy（KWh ） | 2.604 | 25°C, 1/3C | |
| 6 | Cell Configuration | 1P14S | ||
| 7 | Module weight（Kg） | 14.05 | ||
| 8 | Maximum continuous charge current（A） | ≤50A | ||
| 9 | Maximum continuous discharge current（A） | ≤100 A | ||
| 10 | Maximum pulse discharge current（≤30s）（A） | ≤150A | ||
| 11 | SOC operating range（%） | 5~100 | ||
| 12 | Insulation requirements(MΩ) | ≥200 | ||
| 13 | Module cooling method | Natural cooling | ||
| 14 | Module heating film | NO | ||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 16 | Dimension L （mm） | 412.42 | ||
| Dimension B （mm） | 151.5 | |||
| Dimension H （mm） | 108.5 | |||
