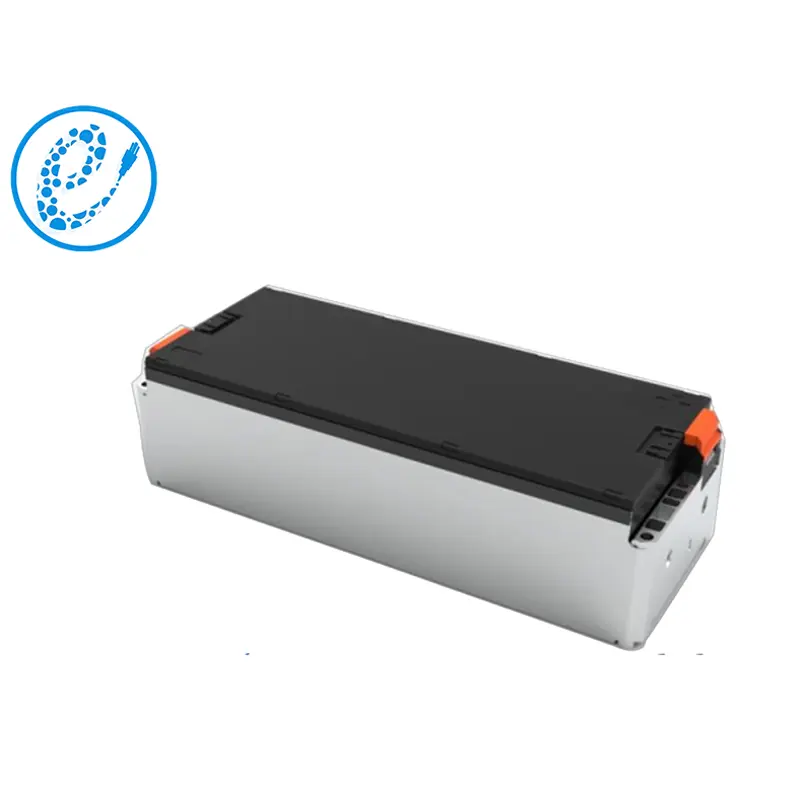

MS1723-22.44V114A-(114AH1P6S)-BJ

The MS1723-22.44V114A-(114AH1P6S) has a rated capacity of 114Ah, a rated voltage of 22.44V and a 1P6S connection. The LiFePO4 battery module is carefully designed and precision manufactured for unrivaled performance. Its high energy density and powerful capacity make it ideal for demanding applications, providing a stable and reliable power source, such as electric trucks, electric vehicles and other applications.


No.ItemsEP-NCM114Ah   STANDARD MODULENote
MS1723-22.44V114A
114Ah1P6S
1Nominal   voltage(V)22.441/3C22.081C25±2,1/3C
2Operating   voltage(V)min16.8
5max26.1
6Nominal   capacity(Ah)1141/3C1101C25±2,1/3C
7Nominal   energyKWh 2.55811/3C2.42881C25±2,1/3C
8Cell   Configuration1P6S
9Module   weightKg12.1±0.3
10Maximum   continuous charge currentA125
11Maximum   short pulse charge current(≤10s410
12Maximum   continuous discharge currentA150
13Maximum   short pulse discharge current(≤10s)(A700
14SOC   operating range%10~90
15Insulation   requirements(MΩ)≥5001000V   DCHigh voltage output to   battery module shell, at the normal temperature and humidity
16Module  cooling methodNatural   cooling
17Module  heating filmNo
18Shipping   capacity (SOC)30%~70%SOC   is consistency in the same batch
19Shipping   consistencymv20Voltage   difference between cell of module20mV
20Coulomb   efficiency 95%
21Module   self-discharge3%25±2,50%SOC
22Dimension   L mm355
Dimension B mm151.5
Dimension H mm108.5
