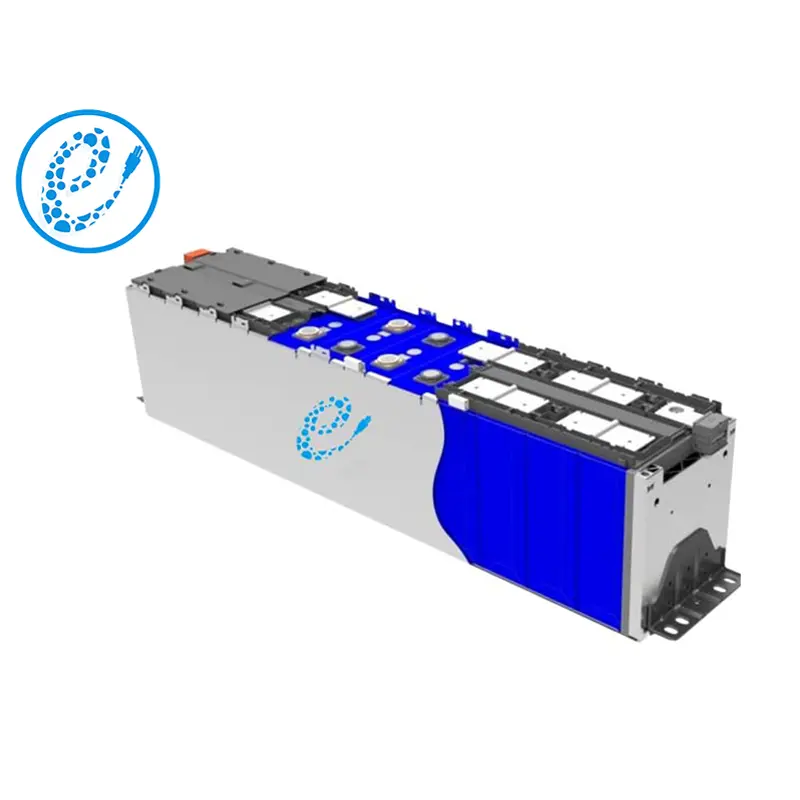

MS0202-35.42V304A-(304AH1P11S) uses a design with a standard capacity of 304Ah and a standard voltage of 35.42V. The internal power management system allows for precise control of the battery according to actual battery demand when charging and discharging the module, which avoids battery depletion during prolonged charging or discharging, thus improving the efficiency of battery use.
| No. | Items | EP-LFP304Ah STANDARD MODULE | Note | |||||
| MS0202-12.88V304A | MS0202-19.32V304A | MS0202-25.76V304A | MS0202-35.42V304A | MS0202-38.64V304A | ||||
| 304Ah1P4S | 304AH1P6S | 304Ah1P8S | 304Ah1P11S | 304Ah1P12S | ||||
| 1 | Nominal voltage(V) | 12.88 | 19.32 | 25.76 | 35.42 | 38.64 | ||
| 2 | Operating voltage(V) | min | 10 | 15 | 20 | 27.5 | 30 | T＞0℃ |
| 3 | max | 14.6 | 21.9 | 29.2 | 40.15 | 43.8 | ||
| 4 | Nominal capacity(Ah) | 304 | 1/3C，100%DOD | |||||
| 5 | Nominal energy（KWh ） | 3.915 | 5.873 | 7.831 | 10.767 | 11.746 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P4S | 1P6S | 1P8S | 1P11S | 1P12S | ||
| 7 | End of life residual capacity (Ah) | 304 | ||||||
| 8 | Maximum continuous charge current（A） | 152 | ||||||
| 9 | Maximum continuous discharge current（A） | 304 | ||||||
| 10 | Maximum pulse discharge current（≤180s）（A） | 608 | ||||||
| 11 | SOC operating range（%） | 10~90 | ||||||
| 12 | Insulation requirements(MΩ) | ≥20 | ||||||
| 13 | Module cooling method | Natural cooling | ||||||
| 14 | Module heating film | No | Or heating film | |||||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||||
| 16 | Dimension L （mm） | 321 | 465 | 608 | 824 | 895 | ||
| Dimension B （mm） | 179 | 179 | 179 | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | 220 | 220 | 220 | |||
