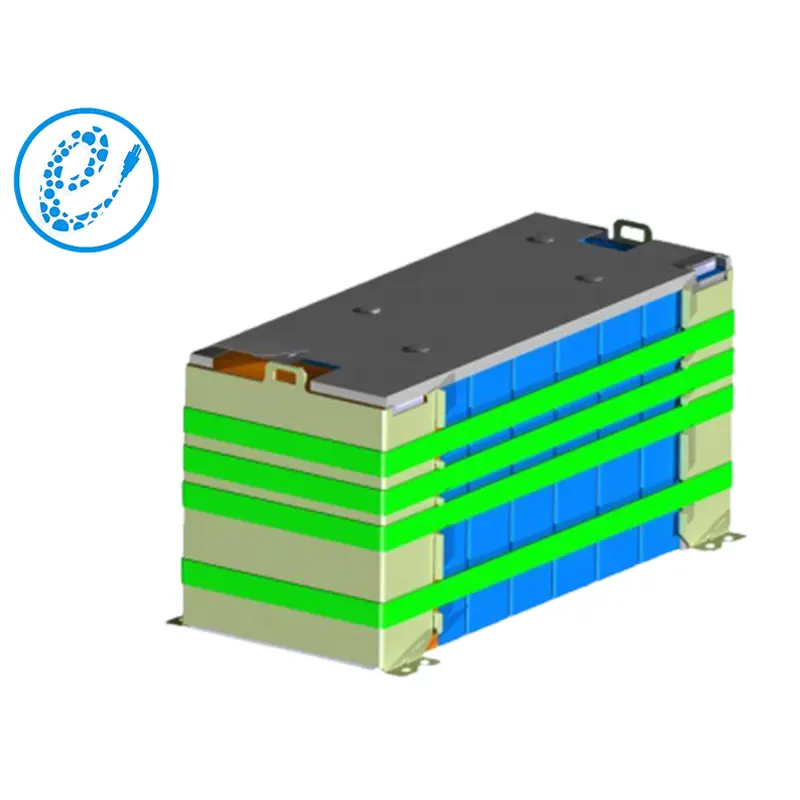

The MS1010-25.6 V206A-(206AH1P8S) is designed with a rated voltage of 25.6V and a rated capacity of 206Ah. Manufactured with high quality materials and components, it can withstand severe environments. The sheet metal design makes the structure of the module more stable and can withstand severe environments. In addition, Ecopower has rigorously evaluated the safety performance of the modules to ensure your safety when using them.
.png "2_(1).png")
| No. | Items | EP-LFP206Ah STANDARD MODULE | Note | |
| MS1010-25.6V206A | ||||
| 206AH1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | ||
| 2 | Operating voltage(V) | min | 20 | Cell 2.5V~3.65V |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity ( Ah) | 206 | 25±2℃ | |
| 5 | Nominal energy (KWh) | 5.273 | 25±2℃ | |
| 6 | Module weight ( Kg） | 36 | ||
| 7 | Maximum continuous charge current (A) | 1C | 25±2℃ | |
| 8 | Maximum continuous discharge current (A) | 1C | 25±2℃ | |
| 9 | Maximum short pulse discharge current (≤10s)(A) | ≤2C | 25±2℃ | |
| 10 | SOC operating range (%) | 20~100 | ||
| 11 | Insulation requirements (MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating film | No | ||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Module self-discharge | ≤3% | 25±2℃,50%SOC | |
| 16 | Dimension L (mm) | 469 | ||
| Dimension W (mm) | 177.5 | |||
| Dimension H (mm) | 226 | |||
