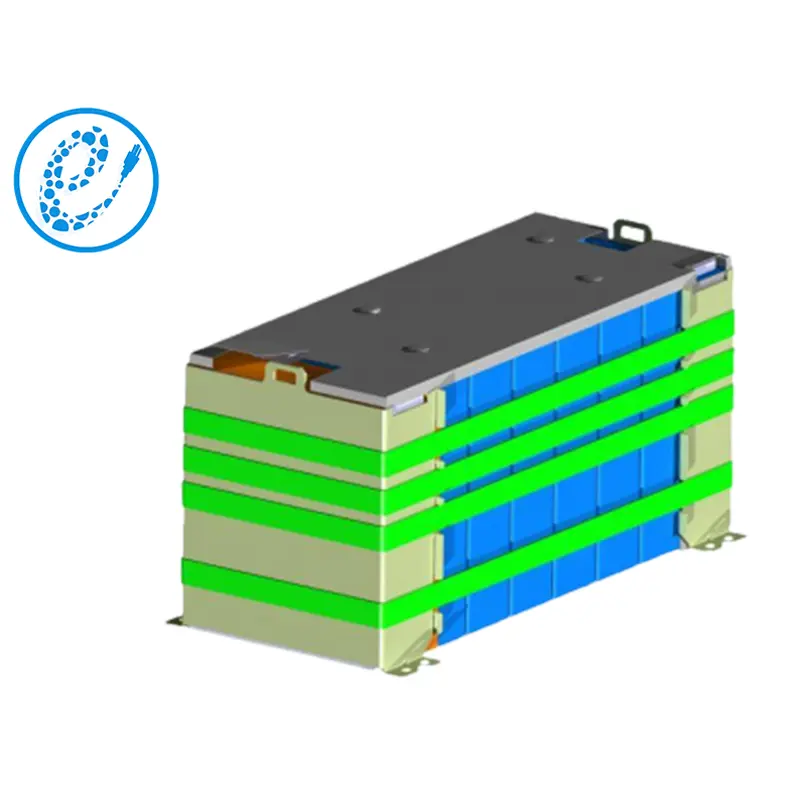

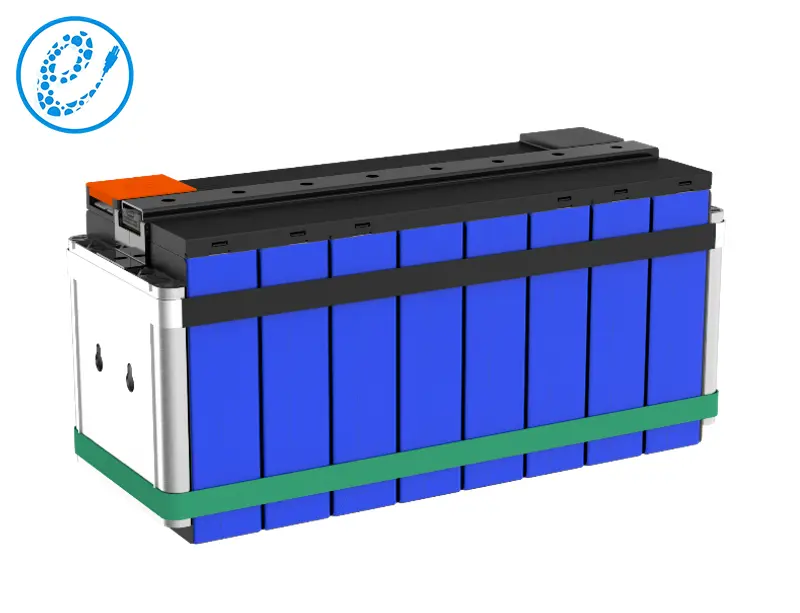

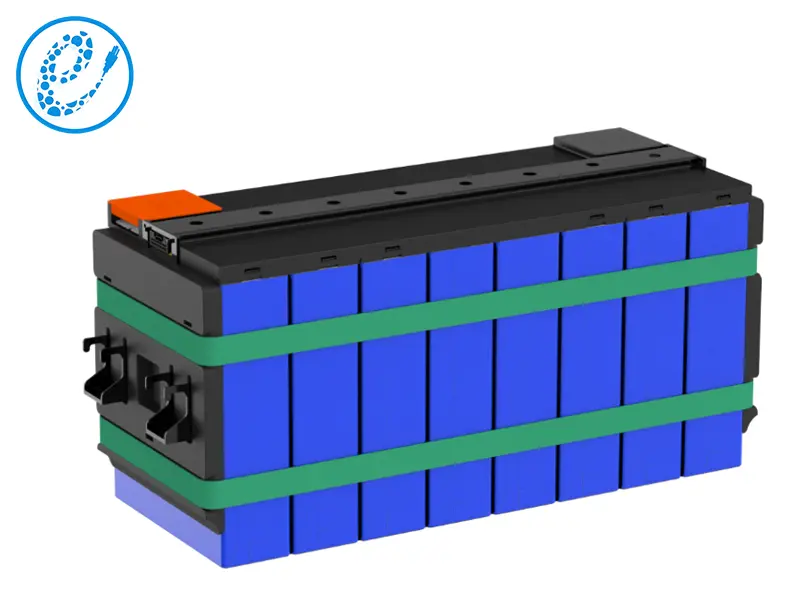

MS0302-25.76V206A-(206AH1P8S)-2C-ZD

Featuring a 1P8S arrangement, this battery has a rated capacity of 206Ah and a rated voltage of 25.76V, providing exceptional power and reliability for a variety of applications. Whether you're powering an electric vehicle, building an off-grid energy system, or looking for reliable backup power, the MS0302-25.76V206A LiFePO4 battery charger module delivers performance you can count on.



No.ItemsEP-LFP206Ah   STANDARD MODULENote
MS0302-25.6V206A
206AH1P8S
1Nominal voltage(V)25.76
2Operating voltage(V)min20T>0℃
3max29.2
4Nominal capacity(Ah)2061/3C,100%DOD
5Nominal energy(KWh )5.3061/3C,100%DOD
6Cell Configuration1P8S
7Maximum  continuous charge current(A)206
8Maximum continuous   discharge current(A)206
9Maximum pulse discharge   current(≤180s)(A)412
10SOC operating range(%)10~90
11Insulation requirements(MΩ)≥20
12Module cooling methodNatural   cooling
13Module heating filmNoOr  heating film
14Shipping capacity (SOC)≈30%SOC   is consistency in the same batch
15Dimension (Aluminium Profile End Plate)

473*176*227(mm)

L*B*H
Dimension(Assembly End Plate)

498*176*227(mm)
