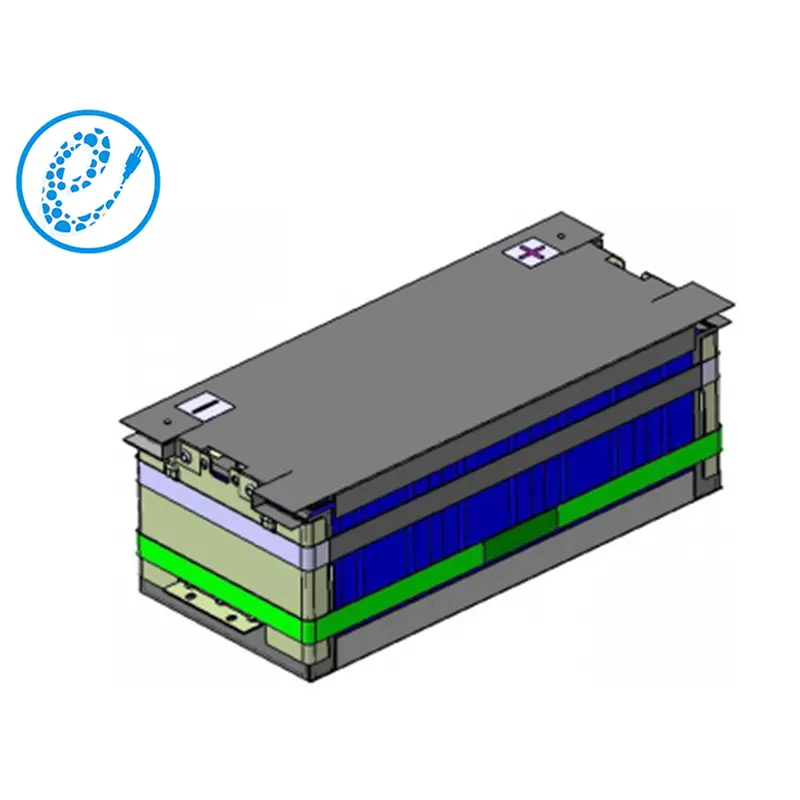

EcoPowerBattery MS0302-25.6V88A-(88AH1P8S) has a standard voltage of 25.6V and a standard capacity of 88Ah. It adopts a high-performance and cost-effective lithium-ion battery module that carries an internal BMS battery management system to optimise energy distribution and improve efficiency and performance. Minimises energy loss and extends overall battery life.
| No. | Items | EP-LFP88Ah STANDARD MODULE | Note | |
| MS0302-25.6V88A | ||||
| 88Ah1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | ||
| 2 | Operating voltage(V) | min | 20 | Cell 2.5V~3.65V |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity ( Ah) | 88 | 25±2℃ | |
| 5 | Nominal energy (KWh) | 2.252 | 25±2℃ | |
| 6 | Maximum continuous charge current (A) | 44 | 25±2℃ | |
| 7 | Maximum continuous discharge current (A) | 88 | 25±2℃ | |
| 8 | Maximum short pulse discharge current (≤10s)(A) | 196 | 25±2℃ | |
| 9 | SOC operating range (%) | 20~100 | ||
| 10 | Insulation requirements (MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating film | No | ||
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Module self-discharge | ≤3% | 25±2℃,50%SOC | |
| 15 | Dimension L (mm) | 426.5 | ||
| Dimension W (mm) | 187 | |||
| Dimension H (mm) | 145 | |||
