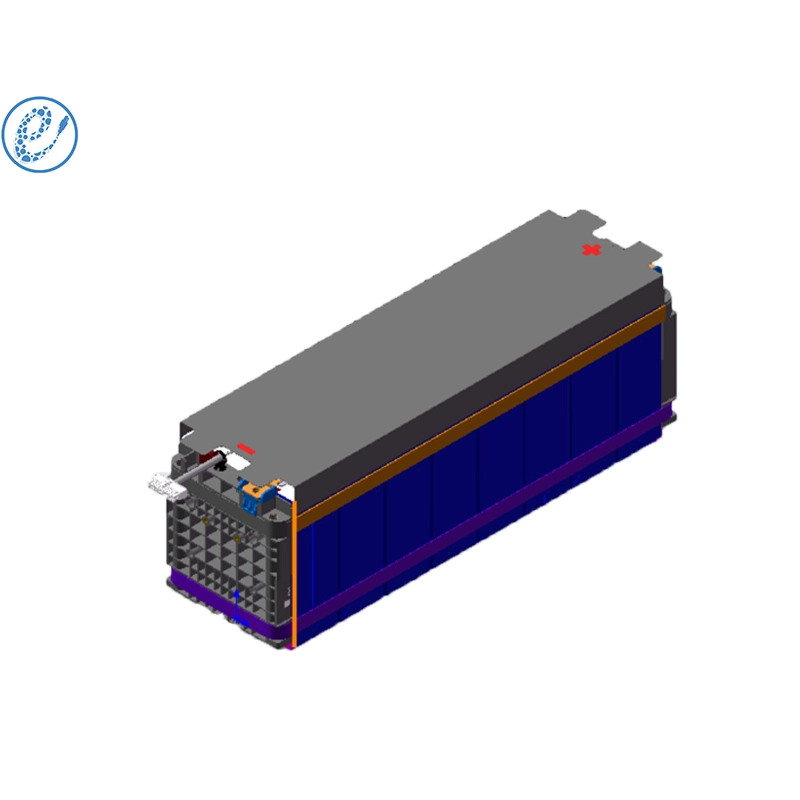

The MS0602-25.76V302A-(302Ah1P8S) features a 1P8S configuration with a rated capacity of 302Ah and a rated voltage of 25.76V. Its internal BMS power management system provides efficient power distribution and seamless integration into a variety of applications, and prevents overcharging or over-discharging of the battery during module charging and discharging, reducing battery wear and prolonging battery life.
| No. | Items | EP-LFP302Ah STANDARD MODULE | Note | |
| MS0602-25.76V302A | ||||
| 302Ah1P8S | ||||
| 1 | Nominal voltage(V) | 25.76 | ||
| 2 | Operating voltage(V) | min | 20 | Cell 2.5V~3.65V |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity ( Ah) | 302 | 25±2℃ | |
| 5 | Nominal energy (KWh) | 7.779 | 25±2℃ | |
| 6 | Cell Configuration | 1P8S | ||
| 7 | End of life residual capacity (Ah) | 241.6 | ||
| 8 | Module weight (Kg) | 44.92 | ||
| 9 | Maximum continuous charge current (A) | 302 | 25±2℃ | |
| 10 | Maximum continuous discharge current (A) | 302 | 25±2℃ | |
| 11 | Maximum short pulse discharge current (≤30s)(A) | 604 | 25±2℃ | |
| 12 | SOC operating range (%) | 20~100 | ||
| 13 | Insulation requirements (MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 14 | Module cooling method | Natural cooling | ||
| 15 | Module heating film | No | ||
| 16 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 17 | Dimension L (mm) | 677.6 | ||
| Dimension W (mm) | 180 | |||
| Dimension H (mm) | 225 | |||
