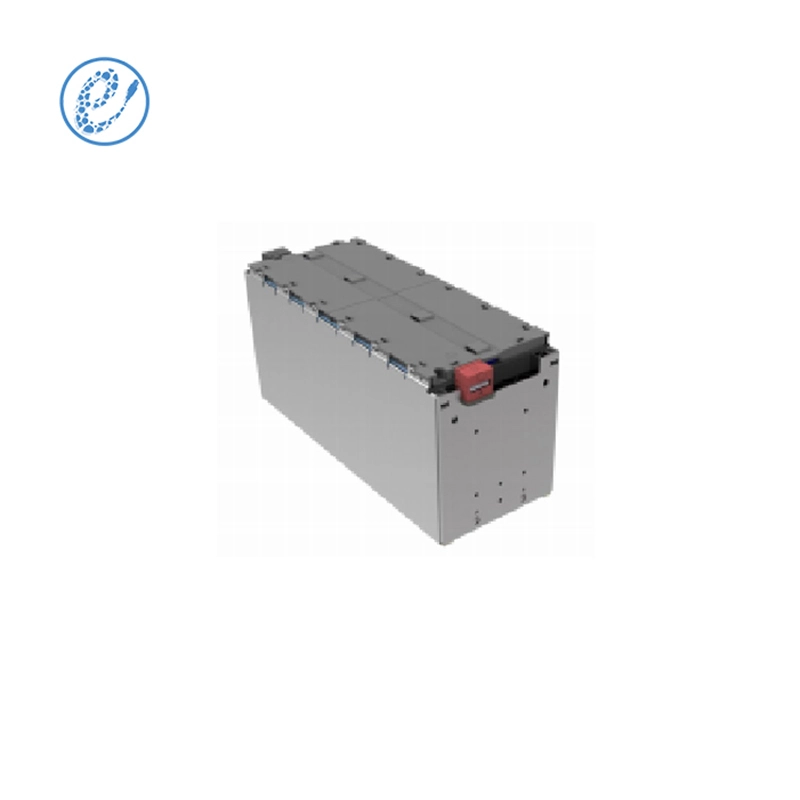

The MS0202-19.32V277A-(277AH1P6S) has a rated capacity of 277Ah and a rated voltage of 19.32 V. Whether you work in the electric vehicle industry, renewable energy, or are looking for powerful energy storage for your electronic devices, the MS0202-19.32V277A-(277AH1P6S) batteries will meet your needs.
| No. | Items | EP-LFP277Ah STANDARD MODULE | Note | ||||
| MS0202-19.32V277A | MS0202-25.76V277A | MS0202-35.42V277A | MS0202-38.64V277A | ||||
| 277AH1P6S | 277AH1P8S | 277AH1P11S | 277AH1P12S | ||||
| 1 | Nominal voltage(V) | 19.32 | 25.76 | 35.42 | 38.64 | ||
| 2 | Operating voltage(V) | min | 15 | 20 | 27.5 | 30 | T＞0℃ |
| 3 | max | 21.9 | 29.2 | 40.15 | 43.8 | ||
| 4 | Nominal capacity(Ah) | 277 | 1/3C，100%DOD | ||||
| 5 | Nominal energy（KWh ） | 5.351 | 7.135 | 9.811 | 10.703 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P6S | 1P8S | 1P11S | 1P12S | ||
| 7 | Maximum continuous charge current（A） | 277 | |||||
| 8 | Maximum continuous discharge current（A） | 277 | |||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 554 | |||||
| 10 | SOC operating range（%） | 10~90 | |||||
| 11 | Insulation requirements(MΩ) | ≥20 | |||||
| 12 | Module cooling method | Natural cooling | |||||
| 13 | Module heating film | No | Or heating film | ||||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||||
| 15 | Dimension L （mm） | 465 | 608 | 824 | 895 | ||
| Dimension B （mm） | 179 | 179 | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | 220 | 220 | |||
