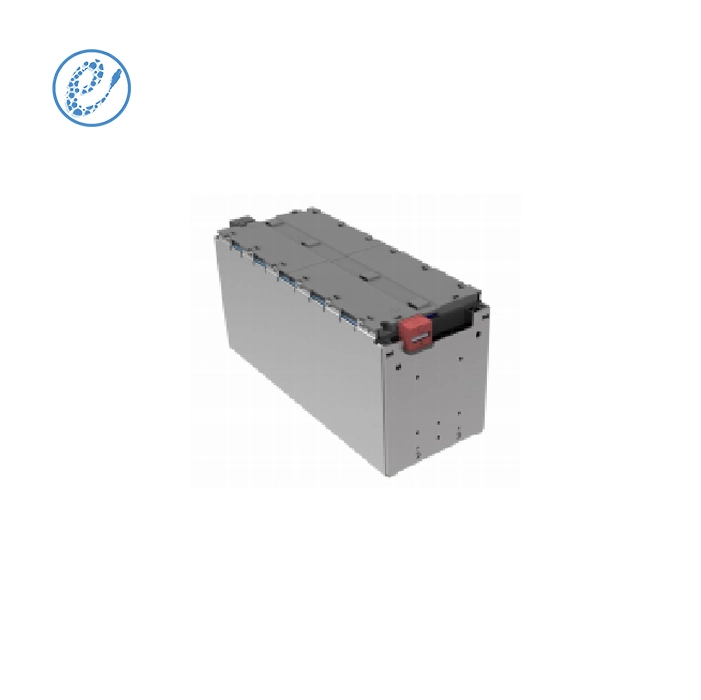

MS0505-12.88V135A-(135AH1P4S) has a rated voltage of 12.88V and a rated capacity of 135Ah. The module is equipped with a BMS battery management system, which avoids over-charging or over-discharging of the batteries during charging and discharging of the module, and reduces the loss of batteries and prolongs the service life of batteries.
.png "2_(1).png")
| No. | Items | MS0505-12.88V135A | Note | |
| 135Ah1P4S | ||||
| 1 | Nominal voltage(V) | 12.88 | ||
| 2 | Operating voltage(V) | min | 8 | |
| 3 | max | 14.6 | ||
| 4 | Nominal capacity (Ah) | 137 | 25℃ | |
| 5 | Nominal energy (KWh) | 1.764 | 25℃ | |
| 7 | Cell Configuration | 1P4S | ||
| 8 | End of life residual capacity (Ah) | 108 | ||
| 9 | Module weight (Kg) | 11.6 | ||
| 10 | Maximum continuous discharge current (A) | 202.5 | ||
| 11 | Maximum pulse charge current (≤10s) | 280 | ||
| 12 | Maximum pulse discharge current (≤10s) | 479 | ||
| 13 | SOC operating range (%) | 10~90 | ||
| 14 | Insulation requirements(MΩ) | ≥20 | 500V DC. High voltage output to battery module shell, at the normal temperature, and humidity | |
| 15 | Module cooling method | Natural cooling | ||
| 16 | Module heating film | No | ||
| 17 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 18 | Dimension L (mm) | 355 | ||
| Dimension B (mm) | 151.5 | |||
| Dimension H (mm) | 108.5 | |||
.png "2_(3).png")
.png "2_(4).png")
.png "2_(5).png")
.png "2_(6).png")
.png "2_(7).png")
.png "2_(8).png")
.png "2_(9).png")
