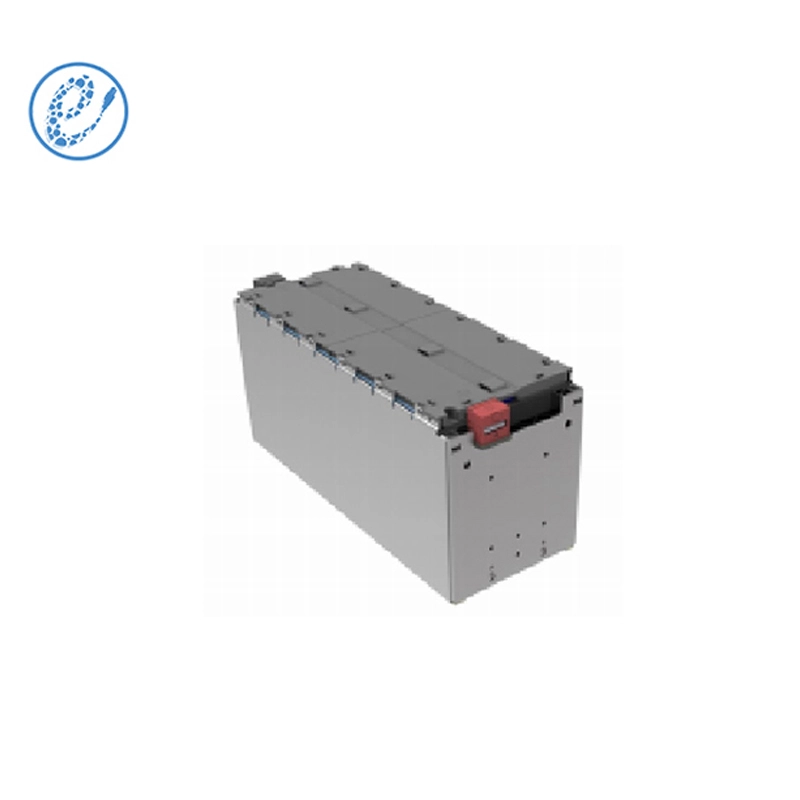

MS0202-12.88V277A-(227Ah1P4S) consists of 4 cells connected in series, with a rated voltage of 12.88V and a rated capacity of 227Ah. You can browse through our product details page for an in-depth understanding of the technical specifications, features and benefits of this module. Feel free to contact us for further energy solutions.
| Items | EP-LFP277Ah STANDARD MODULE | Note | |
| MS0202-12.88V277A | |||
| 277Ah1P4S | |||
| Nominal voltage(V) | 12.88 | ||
| Operating voltage(v) | min | 10 | |
| max | 14.6 | ||
| Nominal capacity (Ah) | 277 | 25±2℃ 1C | |
| Nominal energy (KWh) | 3.567 | 25±2℃ 2C | |
| Group mode | 1P4S | ||
| Module weight (Kg) | ≈24.5 | ||
| Maximum continuous charge current (A) | 277 | ||
| Maximum continuous discharge current (A) | 277 | ||
| Maximum pulse discharge current (≤30s) (A) | 554 | ||
| SOC operating range (%) | 20~100 | ||
| Insulation requirements(MΩ) | ≥20 | 500V DC. High voltage output to battery module shell, at the normal temperature, and humidity | |
| Module cooling method | Natural cooling | ||
| Module heating film | No | ||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L (mm) | 321 | ||
| Dimension B (mm) | 179 | ||
| Dimension H (mm) | 220 | ||
