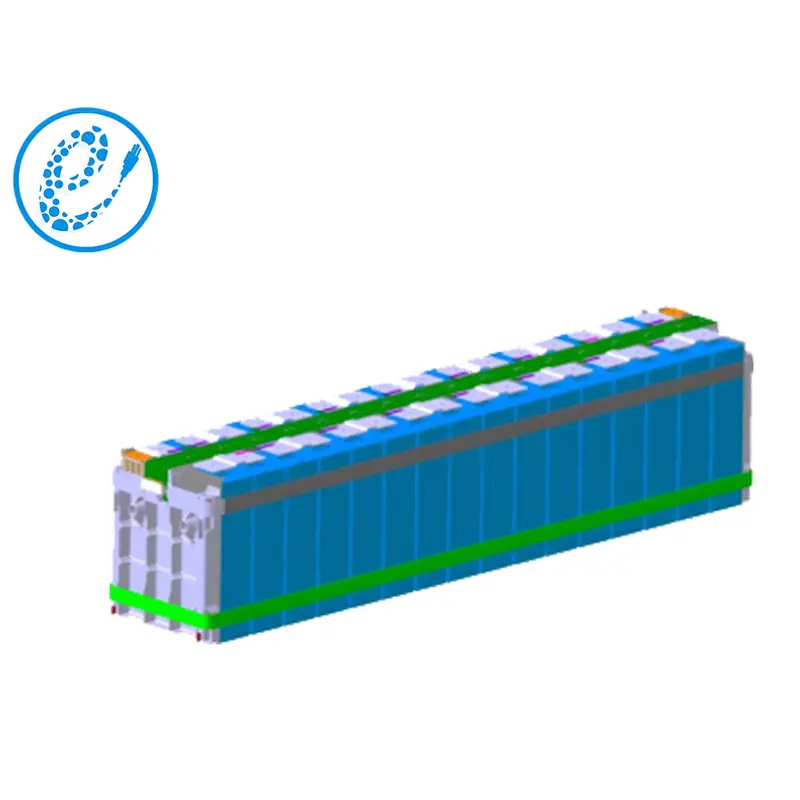

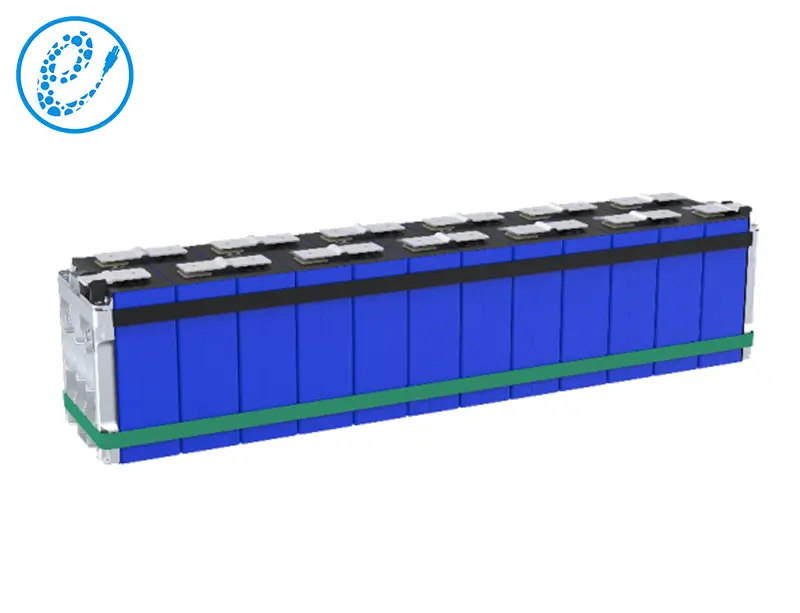

MS0302-38.64V302A-(302AH1P12S) is designed with a rated voltage of 38.64V, a rated capacity of 302Ah and a 1P12S arrangement. The internal BMS battery management system is set up to avoid over-charging or over-discharging of the battery when charging and discharging the module, which reduces the loss of the battery and prolongs the service life of the battery. This enables a perfect combination of efficiency and life span, making it the best choice for companies seeking a reliable high-capacity energy storage solution.
| No. | Items | EP-LFP302Ah STANDARD MODULE | Note | |
| MS0302-38.64V302A | ||||
| 302AH1P12S | ||||
| 1 | Nominal voltage(V) | 38.64 | ||
| 2 | Operating voltage(V) | min | 30 | T＞0℃ |
| 3 | max | 43.8 | ||
| 4 | Nominal capacity(Ah) | 302 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 11.669 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P12S | ||
| 7 | Maximum continuous charge current（A） | 151 | ||
| 8 | Maximum continuous discharge current（A） | 302 | ||
| 9 | Maximum pulse discharge current（≤180s）（A） | 604 | ||
| 10 | SOC operating range（%） | 10~90 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | ||
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating film | No | Or heating film | |
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension L （mm） | 903.7 | ||
| Dimension B （mm） | 178 | |||
| Dimension H （mm） | 212 | |||
