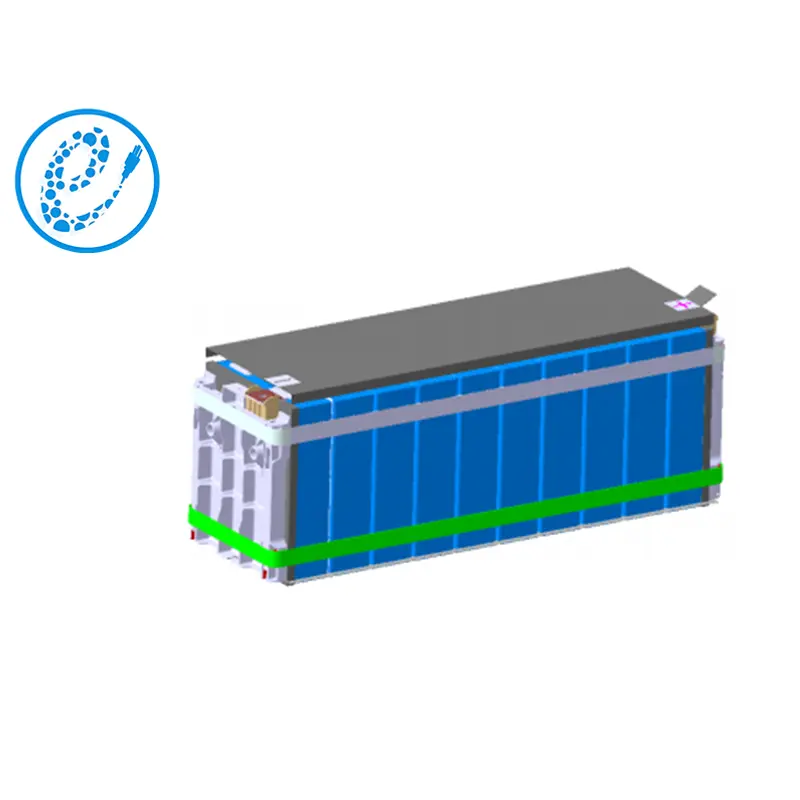

The MS0202-25.76V230A- (230AH1P8S) Li-ion battery charging module has a capacity of 230Ah and a rated voltage of 25.76 V. The sheet metal design allows for a more robust structure to ensure durability and longevity, making it an excellent choice for your energy solution.
| Items | MS0202-230A | Note | |||
| 25.76V230A1P8S | 38.64V230A1P12S | 51.52V230A-1P16S | |||
| Nominal voltage(V) | 25.76 | 38.64 | 51.52 | ||
| Operating voltage(V) | min | 20 | 30 | 40 | |
| max | 29.2 | 43.8 | 58.4 | ||
| Nominal capacity(Ah) | 230 | 25±2℃ | |||
| Nominal energy（KWh ） | 5.924 | 8.887 | 11.849 | 25±2℃ | |
| Cell Configuration | 1P8S | 1P12S | 1P16S | ||
| Maximum continuous charge current（A） | 165 | 25±2℃ | |||
| Maximum continuous discharge current（A） | 230 | 25±2℃ | |||
| Maximum pulse discharge current（≤10s)(A） | 460 | 25±2℃ | |||
| SOC operating range（%） | 20~100 | ||||
| Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |||
| Module cooling method | Natural cooling | ||||
| Module heating film | NO | ||||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||
| Dimension L （mm） | 467 | 683 | 900 | ||
| Dimension B （mm） | 179 | 179 | 179 | ||
| Dimension H （mm） | 220 | 220 | 220 | ||
