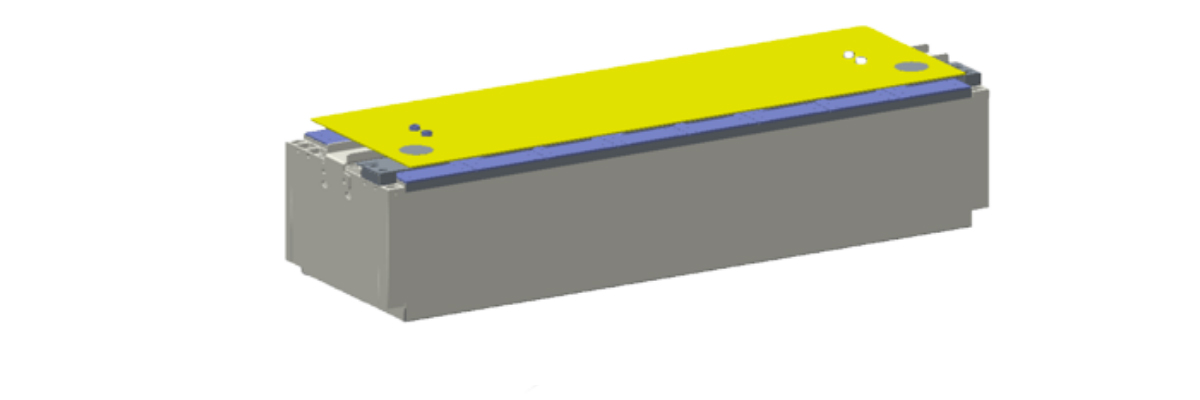

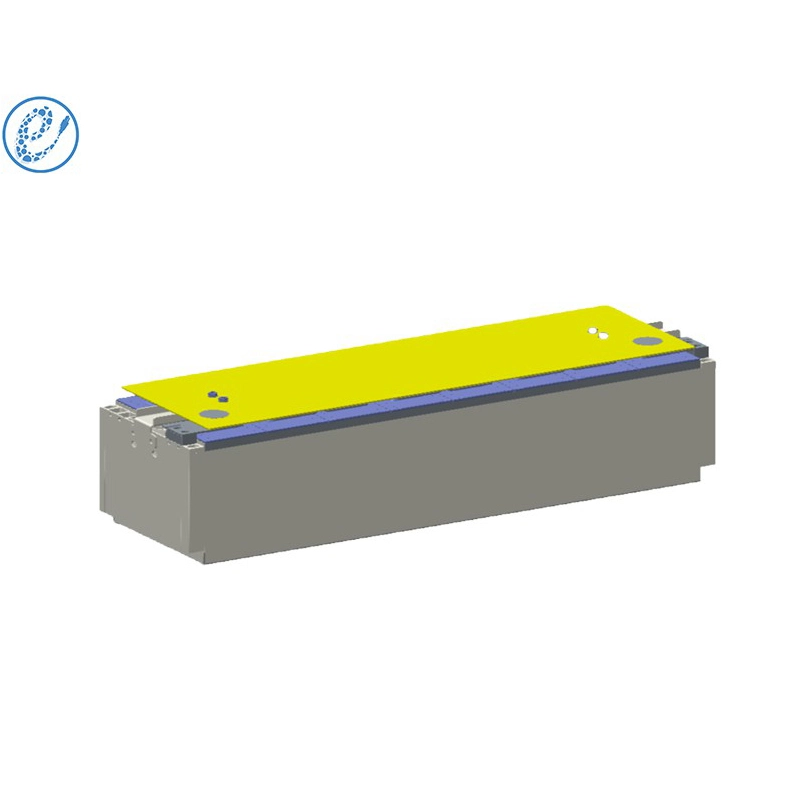

MS1010-25.6V100A-(100AH 1P8S) module has a rated voltage of 25.6V and a rated capacity of 100Ah. It is a powerful, reliable and durable battery module, which is a good choice to meet the needs of electric energy storage, such as electric excavator, electric truck, etc.
| No. | Items | MS1010-25.6V100A | Note | |
| 100Ah1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | ||
| 2 | Operating voltage(V) | min | 20 | |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity (Ah) | 100 | 0.5C, 25℃ | |
| 5 | Nominal energy (KWh) | 2.56 | 0.5C, 25℃ | |
| 6 | Cell Configuration | 1P8S | ||
| 7 | End of life residual capacity (Ah) | 80 | ||
| 8 | Module weight (Kg) | 20 | ||
| 9 | Maximum continuous charge current (A) | 100 | ||
| 10 | Maximum continuous discharge current (A) | 100 | ||
| 11 | Maximum pulse discharge current (≤30s) (A) | 200 | ||
| 12 | SOC operating range (%) | 10~90 | ||
| 13 | Insulation requirements(MΩ) | ≥20 | 500V DC. High voltage output to battery module shell, at the normal temperature, and humidity | |
| 14 | Module cooling method | Natural cooling | ||
| 15 | Module heating film | No | ||
| 16 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 17 | Dimension L (mm) | 434±2 | ||
| Dimension B (mm) | 179±2 | |||
| Dimension H (mm) | 147±2 | |||
