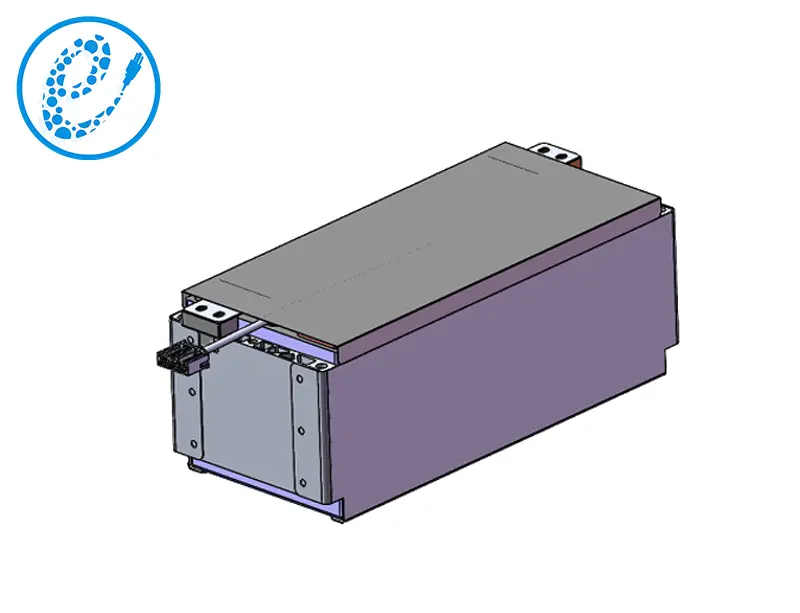

The 19.2V80A-40Ah2P6S -6C LiFePO4 battery module offers efficient energy storage and reliable performance. With a voltage of 19.2 volts, a capacity of 80 ampere-hours (Ah), and configured as 2 parallel cells of 6 series cells each, it delivers robust power output suitable for various applications, from electric vehicles to renewable energy systems.
| No. | Items | EP-LFP40Ah STANDARD MODULE | Note | |
| MSXX21-19.2V80A | ||||
| 40Ah2P6S | ||||
| 1 | Nominal voltage(V) | 19.2 | 25℃，1C | |
| 2 | Operating voltage(V) | min | 15.6 | |
| 3 | max | 21.9 | ||
| 4 | Nominal capacity(Ah) | 80 | 25℃,1/3C, Fresh cell status | |
| 5 | Nominal energy（KWh ） | 1.536 | 25°C,1/3C, 4.3V-2.8V Fresh cell status | |
| 6 | Cell Configuration | 2P6S | Serial and parallel schemes | |
| 7 | Maximum continuous charge current（A） | 480A（6C） | 25+2°C, individual cell, fresh status | |
| 8 | Maximum continuous discharge current（A） | 480A（6C） | 25+2°C, individual cell, fresh status | |
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | 500MΩ, 5S | 500V DC, High voltage outputto battery module shell, at thenormal temperature and humidity | |
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L （mm） | 372.1 | ||
| Dimension B （mm） | 150.4 | |||
| Dimension H （mm） | 137 | |||
