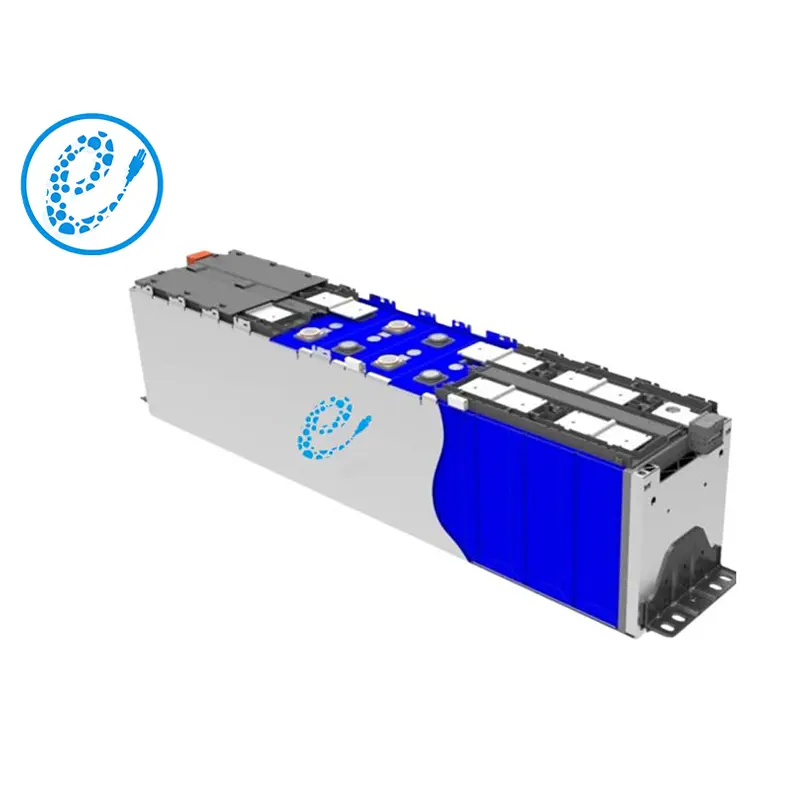

The MS0202-38.64V304A-(304AH1P12S) has a standard voltage of 38.64V and a standard capacity of 304Ah. The internal battery management system monitors key parameters such as voltage, current and temperature in real time. You can control the performance of the battery at any time, thus effectively optimising the use of the battery.
| No. | Items | EP-LFP304Ah STANDARD MODULE | Note | |||||
| MS0202-12.88V304A | MS0202-19.32V304A | MS0202-25.76V304A | MS0202-35.42V304A | MS0202-38.64V304A | ||||
| 304Ah1P4S | 304AH1P6S | 304Ah1P8S | 304Ah1P11S | 304Ah1P12S | ||||
| 1 | Nominal voltage(V) | 12.88 | 19.32 | 25.76 | 35.42 | 38.64 | ||
| 2 | Operating voltage(V) | min | 10 | 15 | 20 | 27.5 | 30 | T＞0℃ |
| 3 | max | 14.6 | 21.9 | 29.2 | 40.15 | 43.8 | ||
| 4 | Nominal capacity(Ah) | 304 | 1/3C，100%DOD | |||||
| 5 | Nominal energy（KWh ） | 3.915 | 5.873 | 7.831 | 10.767 | 11.746 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P4S | 1P6S | 1P8S | 1P11S | 1P12S | ||
| 7 | End of life residual capacity (Ah) | 304 | ||||||
| 8 | Maximum continuous charge current（A） | 152 | ||||||
| 9 | Maximum continuous discharge current（A） | 304 | ||||||
| 10 | Maximum pulse discharge current（≤180s）（A） | 608 | ||||||
| 11 | SOC operating range（%） | 10~90 | ||||||
| 12 | Insulation requirements(MΩ) | ≥20 | ||||||
| 13 | Module cooling method | Natural cooling | ||||||
| 14 | Module heating film | No | Or heating film | |||||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||||
| 16 | Dimension L （mm） | 321 | 465 | 608 | 824 | 895 | ||
| Dimension B （mm） | 179 | 179 | 179 | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | 220 | 220 | 220 | |||
