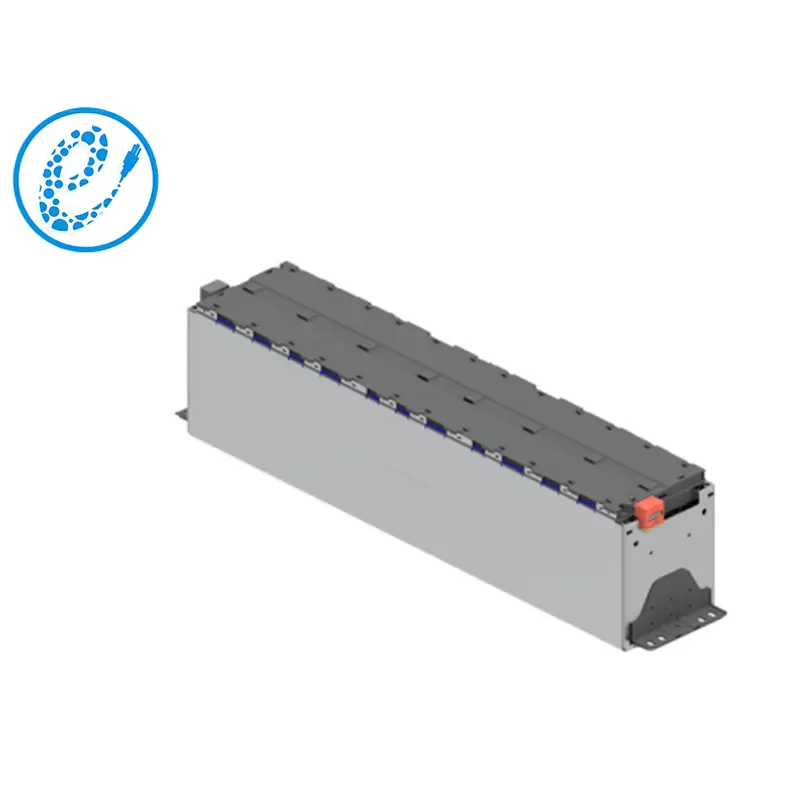

MS0202-38.64V230A-(230AH1P12S)-BJ

MS0202-38.64V230A-(230AH1P12S) consists of 12 cells connected in series, with a rated voltage of 38.64V and a rated capacity of 230Ah.This rechargeable module has excellent performance and can provide a reliable and stable energy supply for your commercial and industrial pure energy, domestic energy storage and container energy storage.



ItemsMS0202-230ANote
25.76V230A1P8S38.64V230A1P12S51.52V230A-1P16S
Nominal voltage(V)25.7638.6451.52
Operating voltage(V)min203040
max29.243.858.4
Nominal capacity(Ah)23025±2
Nominal energyKWh   5.9248.88711.84925±2
Cell Configuration1P8S1P12S1P16S
Maximum   continuous charge currentA16525±2
Maximum   continuous discharge currentA23025±2
Maximum   pulse discharge current(≤10s)(A46025±2
SOC operating range%20~100
Insulation requirements(MΩ)20500V   DCHigh voltage output to   battery module shell, at the normal temperature and humidity
Module cooling methodNatural   cooling
Module heating filmNO
Shipping capacity (SOC)≈30%SOC   is consistency in the same batch
Dimension L mm467683900
Dimension B mm179179179
Dimension   H mm220220220
