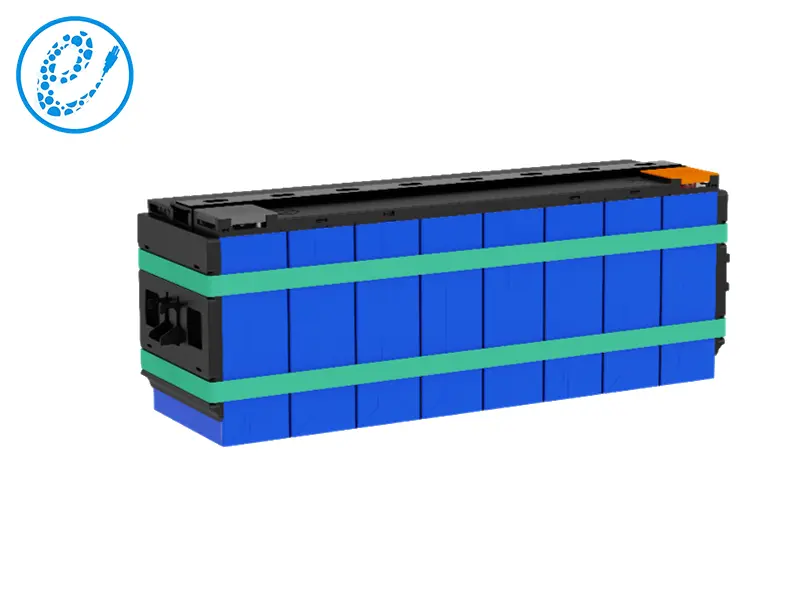

The MS0302-25.6V314A-(314AH1P8S)-ZD module is a versatile energy storage solution suitable for various applications.
Whether deployed in commercial settings to optimize energy usage and reduce utility costs or integrated into large-scale energy storage systems to support grid stability and renewable energy integration, the MS0302-25.6V314A-(314AH1P8S)-ZD module delivers dependable performance and flexibility to adapt to diverse energy storage needs.
-ZD_01.png "MS0302-25.6V314A-(314AH1P8S)-ZD_01.png")
| No. | Items | EP-LFP314Ah STANDARD MODULE | Note | |
| MS0302-25.6V314A | ||||
| 314AH1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | ||
| 2 | Operating voltage(V) | min | 20 | |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity(Ah) | 314 | ||
| 5 | Nominal energy（KWh ） | 8.038 | ||
| 6 | Cell Configuration | 1P8S | ||
| 7 | Maximum continuous charge current（A） | 0.5P | ||
| 8 | Maximum continuous discharge current（A） | 0.5P | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |

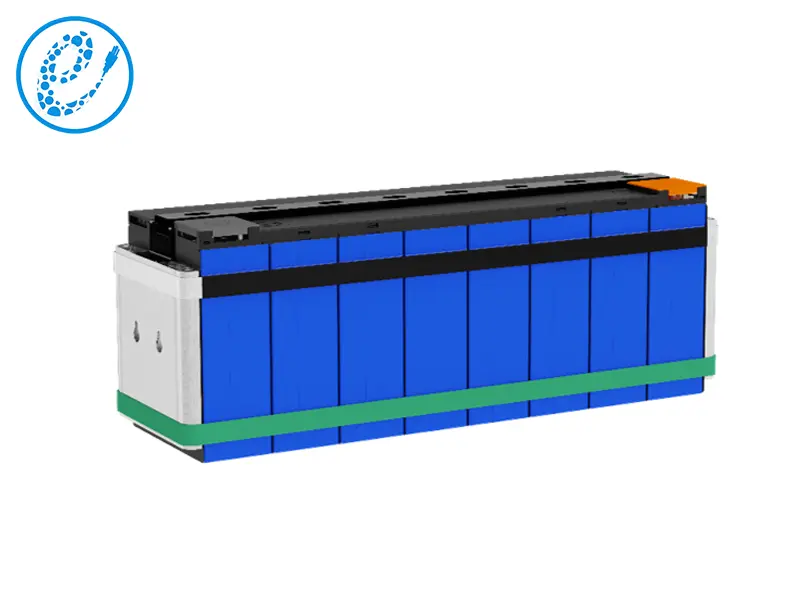

| 14 | Dimension （Aluminium Profile End Plate） | 617×176×227mm | L*B*H | |
| Dimension（Assembly End Plate） | 642×176×227mm | |||
-ZD_03.png "MS0302-25.6V314A-(314AH1P8S)-ZD_03.png")
-ZD_04.png "MS0302-25.6V314A-(314AH1P8S)-ZD_04.png")
-ZD_05.png "MS0302-25.6V314A-(314AH1P8S)-ZD_05.png")

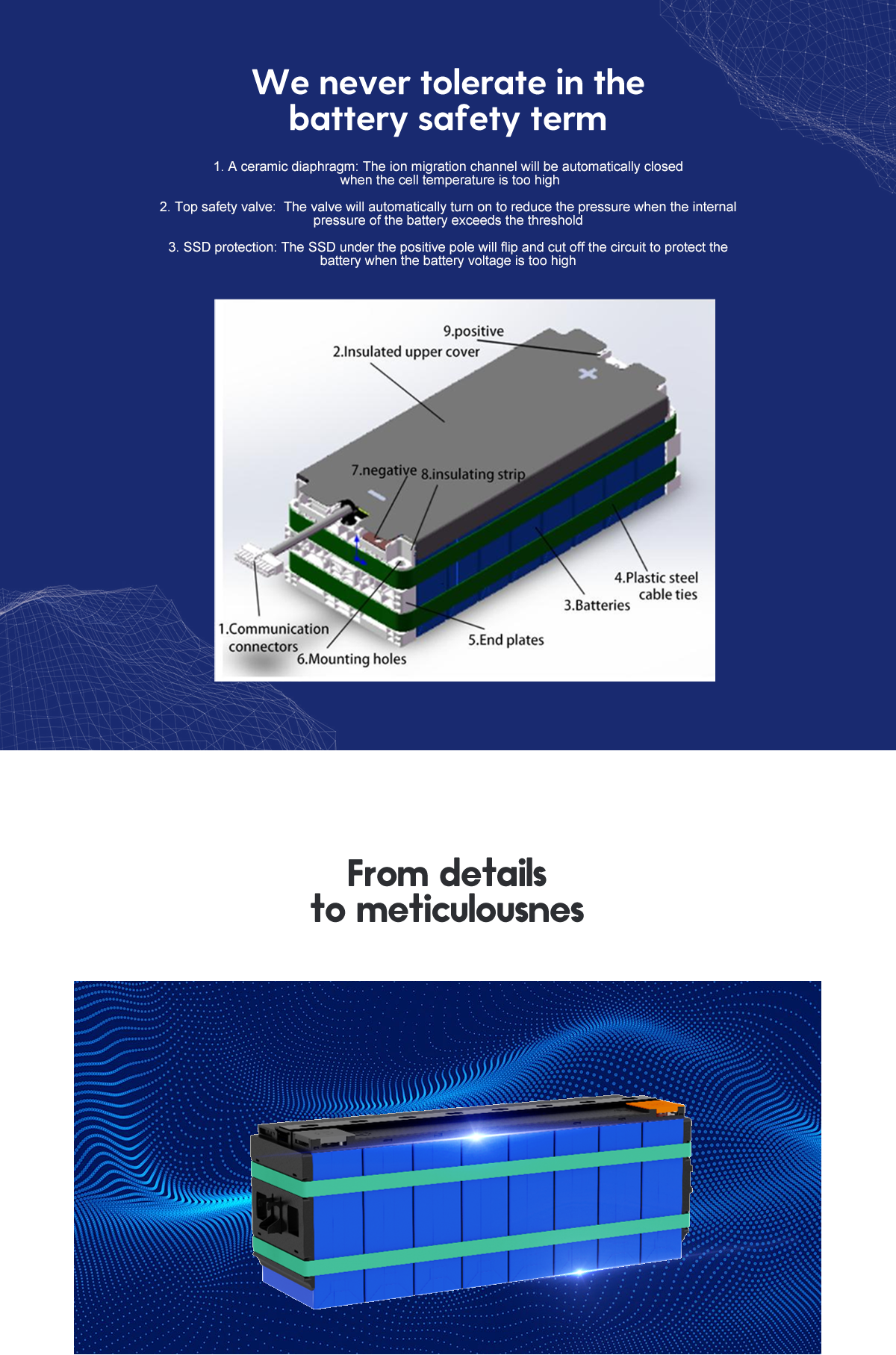

-ZD_06.png "MS0302-25.6V314A-(314AH1P8S)-ZD_06.png")
-ZD_07.png "MS0302-25.6V314A-(314AH1P8S)-ZD_07.png")
-ZD_08.png "MS0302-25.6V314A-(314AH1P8S)-ZD_08.png")
-ZD_09.png "MS0302-25.6V314A-(314AH1P8S)-ZD_09.png")
