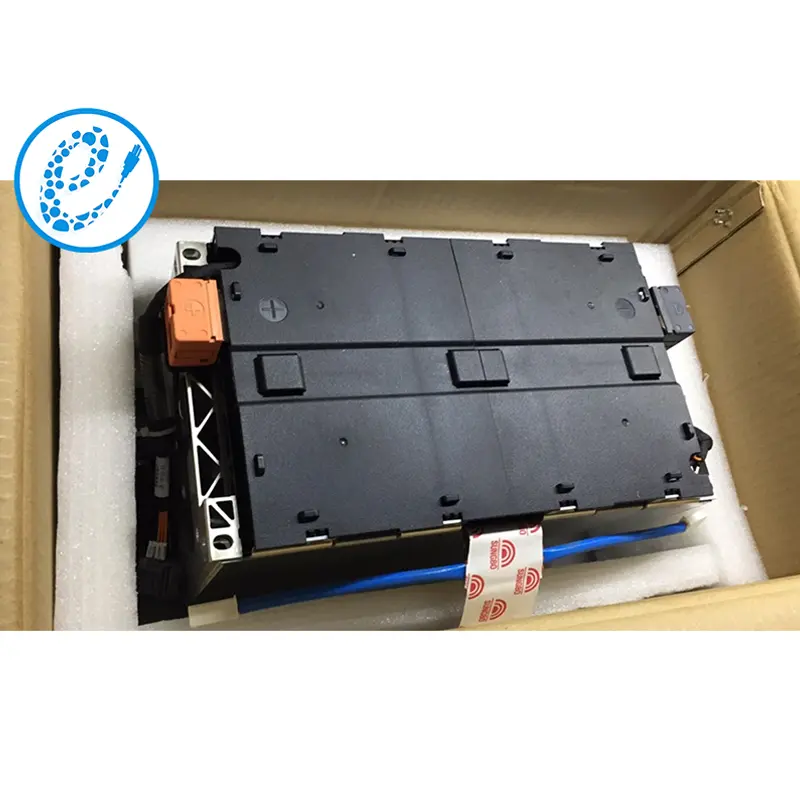

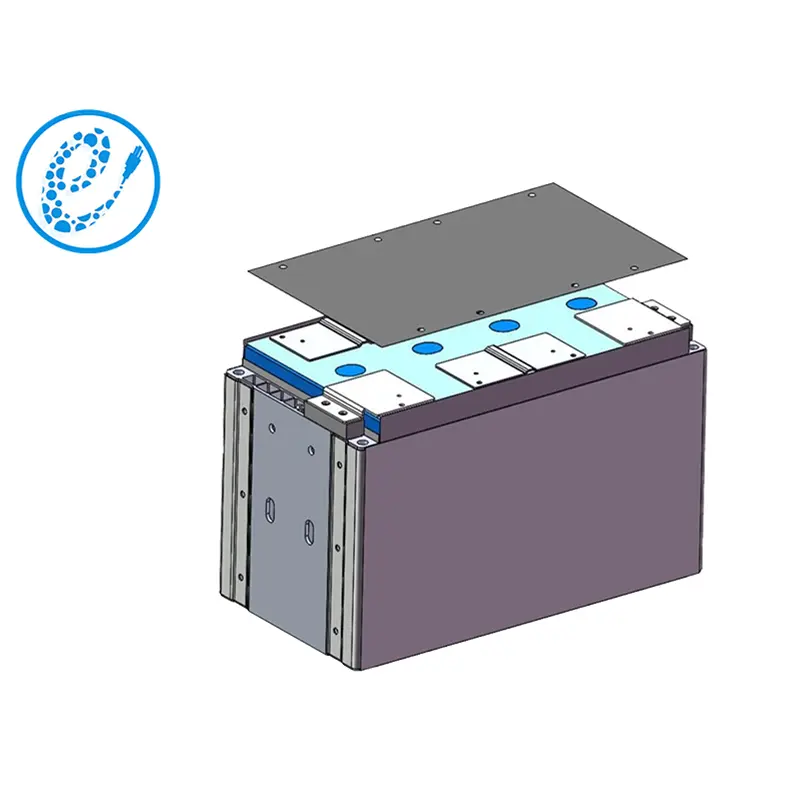

MS0202-12.8V280A-(280AH1P4S) lifepo4 battery charger module consists of 4 cells connected in series, with a rated energy of 3.584kwh, a rated voltage of 12.8V, and a rated capacity of 280Ah. ensures a stable and reliable power supply for you, and is the preferred choice for your energy solution.
| No. | Items | MS0202-12.8V280A | Note | |
| 280Ah1P4S | ||||
| 1 | Nominal voltage(V) | 12.8 | ||
| 2 | Operating voltage(V) | min | 10 | |
| 3 | max | 14.6 | ||
| 4 | Nominal capacity(Ah) | 280 | 25±2℃,1C | |
| 5 | Nominal energy（KWh ） | 3.584 | 25±2℃,1C | |
| 6 | Cell Configuration | 1P4S | ||
| 7 | Module weight（Kg） | ≈23.6 | ||
| 8 | Maximum continuous charge current（A） | 280 | ||
| 9 | Maximum continuous discharge current（A） | 280 | ||
| 10 | Maximum pulse discharge current（≤10s)(A） | 560 | ||
| 11 | SOC operating range（%） | 20~100 | ||
| 12 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 13 | Module cooling method | Natural cooling | ||
| 14 | Module heating film | NO | ||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 16 | Dimension L （mm） | 391.6 | ||
| Dimension B （mm） | 179.6 | |||
| Dimension H （mm） | 222.5 | |||
