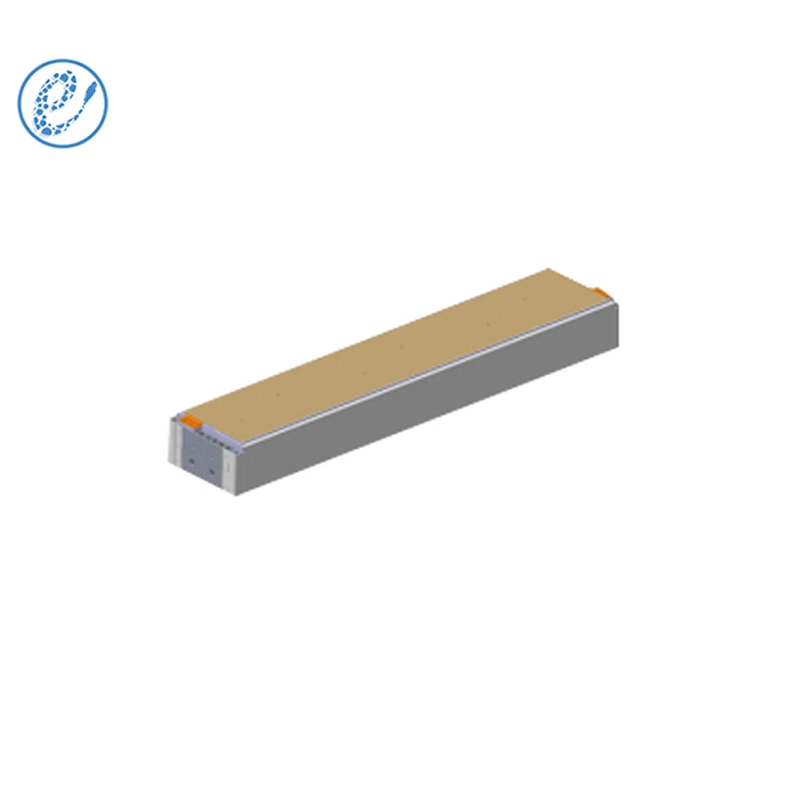

MS1109-16V480A-(160AH3P5S) It has a base voltage of 16V and a base capacity of 480Ah. 160ah lithium battery also features an intelligent BMS that optimises energy distribution and improves efficiency and performance. Minimises energy loss and extends the overall life of the battery.
| Items | EP-LFP160AhSTANDARD MODULE | Note | |
| MS1109-16V480A | |||
| 160Ah3P5S | |||
| Nominal voltage(V) | 16 | 1/3C | |
| Operating voltage(v) | min | 12.5 | Cell 2.5V~3.65V |
| max | 18.25 | ||
| Nominal capacity (Ah) | 480 | 25+2℃, 1/3C | |
| Nominal energy (KWh) | 7.68 | 25+2℃, 1/3C | |
| Cell Configuration | 3P5S | ||
| Module weight ( Kg) | 50±0.5 | ||
| Maximum continuous charge current | 480 | ||
| Maximum short pulse charge current(≤20s) | 750 | 25℃ | |
| Maximum continuous discharge current (A) | 480 | ||
| Maximum short pulse discharge current (≤20s)(A) | 750 | 25℃ | |
| SOC operating range (%) | 20~100 | ||
| Insulation requirements(MΩ) | ≥20 | 500V DC, High voltage output to battery module shell, at the normal temperature and humidity | |
| Module cooling method | Natural cooling | ||
| Module heating film | No | ||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Module self-discharge | ≤3% | 25+2℃, 50%SOC | |
| Dimension L (mm) | 861 | ||
| Dimension W (mm) | 176 | ||
| Dimension H (mm) | 160 | ||
