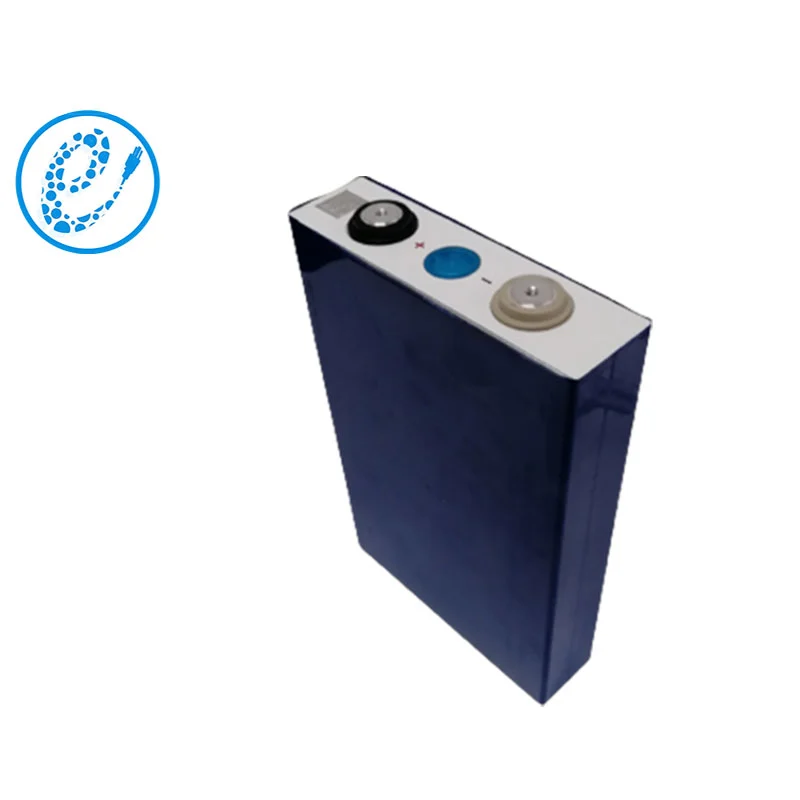

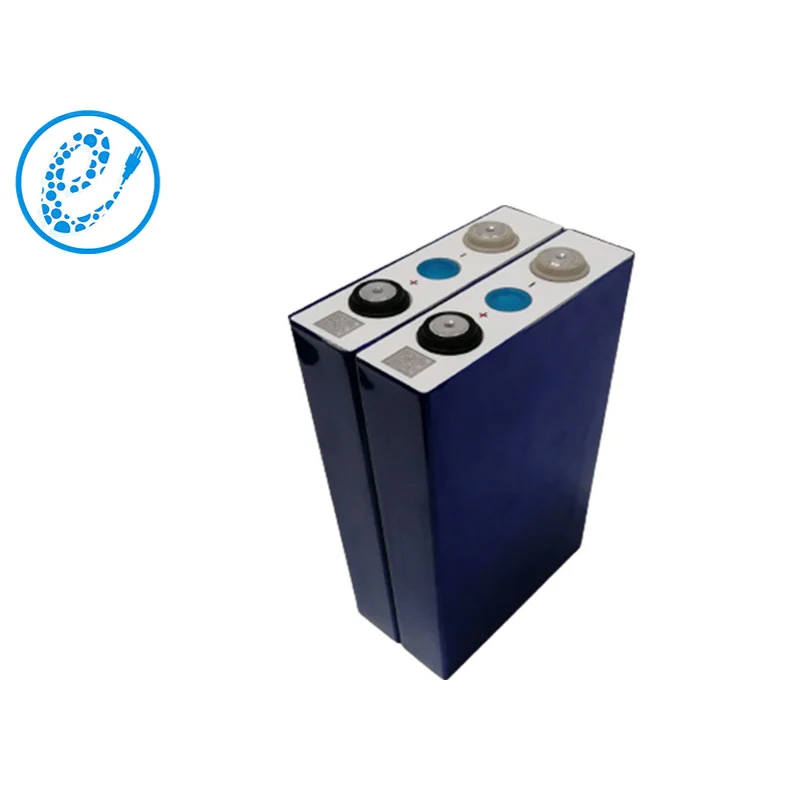

C9-LFP90WN LiFePO4 is a type of rechargeable lithium-ion 90ah battery, it is lightweight and resistant to temperature changes, making it suitable for use in a variety of applications where weight and temperature resistance are important.
| Item | Specification | |

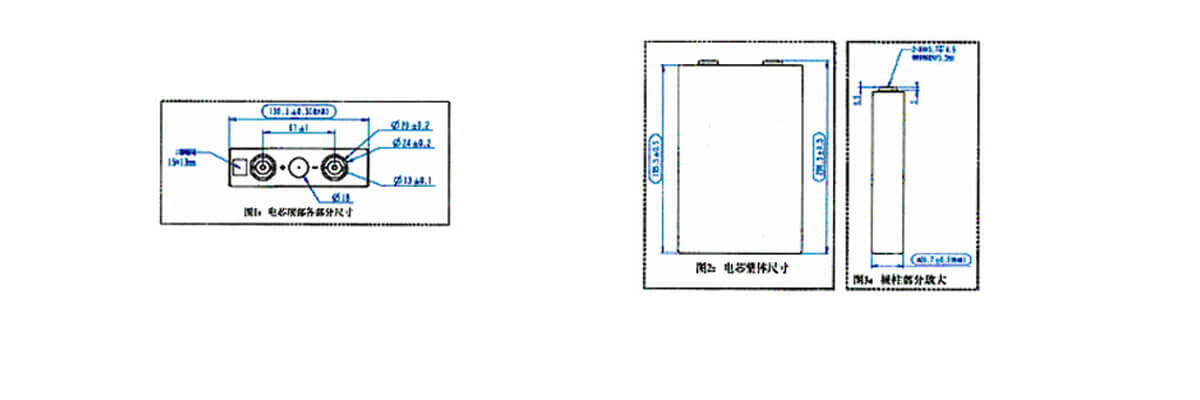

| Dimension | 36.7mm*130.3mm*200.5mm | |
| Weight | 1.994±0.05kg(±3%) | |
| Min. capacity | 90Ah(0.5C)(25±2)℃ | |
| Min. energy | 288Wh (0.5C)(25±2)℃ | |
| SOC window | 10~90% | |
| Terminal | Welding | |
| Impedance ( 1kHz) | ≤0.5mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V | |
| Current | Maximum continuous charge | 1C |
| Maximum continuous discharge | 1C | |
| Energy density | Gravimetric | 144Wh/kg |
| Volumetric | 300Wh/L | |
| Temp. Condition | Operation (Charge) | 0~55℃ |
| Operation (Discharge) | -20~55℃ | |
Storage | -20~45℃(1 month) 0~35℃(1 year) | |
| Cycle Life | 0.5C/0.5C,100% DOD 25℃ | 6000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
