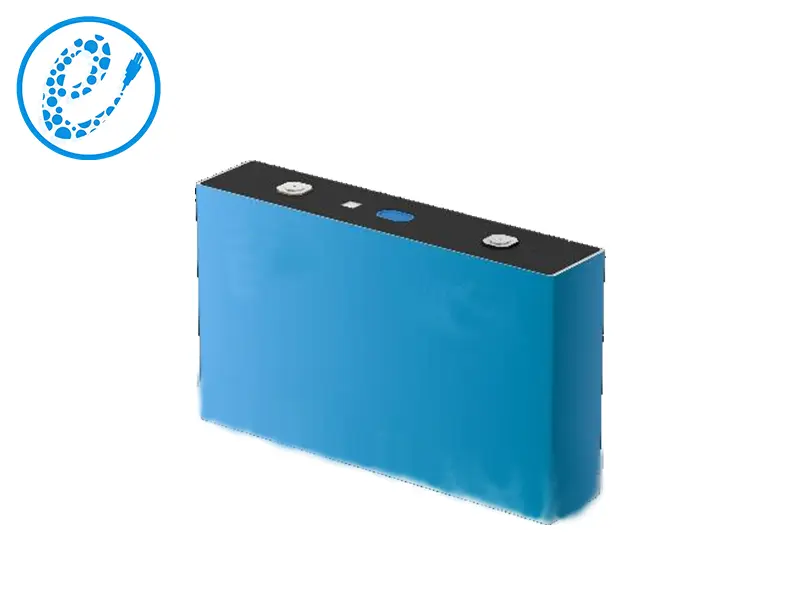

The C9-LFP628W is a high-capacity Li phosphate battery that can provide long-lasting, reliable power to a wide range of applications. It's also lightweight, making it easy to install and transport. C9 battery has a wide operating temperature range and is highly efficient, with a long cycle life and low self-discharge rate.
.png "c9-lfp628ah_(1).png")
| Item | Specification | |
| Dimension | 352.3mm*71.7mm*207.2mm | |
| Weight | 11.95kg | |
| Min. capacity | 628Ah (1C) @ 25℃ | |
| Min. energy | 2009.6Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤1mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V | |
| Current | Standard Charge/Discharge Power | 0.5P |
| Maximum Standard Charge/Discharge Power | 1P | |
| Energy density | Gravimetric | 168Wh/kg |
| Volumetric | 383Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 60℃ |
| Operation (Discharge) | -30 ~ 60℃ | |
| Storage | -20 ~ 45℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 8000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
.png "c9-lfp628ah_(3).png")
.png "c9-lfp628ah_(4).png")
.png "c9-lfp628ah_(5).png")
.png "c9-lfp628ah_(6).png")
.png "c9-lfp628ah_(7).png")
.png "c9-lfp628ah_(8).png")
