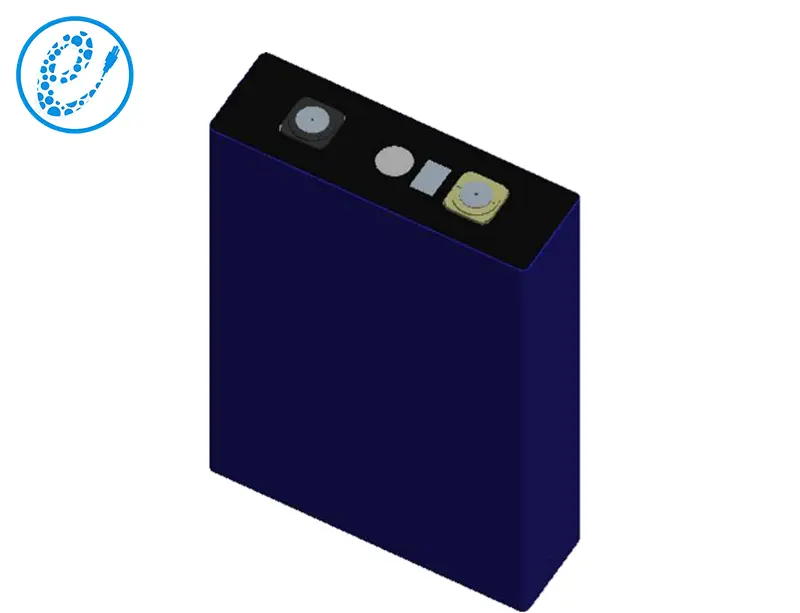

The LFP176Ah Li phosphate battery combines high capacity, enhanced energy density, long cycle life, and rapid charging capabilities, making it a versatile and dependable choice for a wide range of energy storage applications.
.png "C2-LFP176ah_(1).png")
| Item | Specification | |
| Dimension | 54*173*207 mm | |
| Min. capacity | 176Ah @1C, 25℃ ± 2℃ | |
| Min. energy | 563.2Wh | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.4mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V | |
| Current | Maximum continuous charge current | 1C |
| Maximum continuous discharge current | 1C | |
| Energy density | Gravimetric | 145Wh/kg |
| Volumetric | 291Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Storage | -30 ~ 55℃, 20-50%SOC，≤90%RH | |
| Cycle Life | 80%SOH, 25℃ | 4000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
.png "C2-LFP176ah_(3).png")
.png "C2-LFP176ah_(4).png")
.png "C2-LFP176ah_(5).png")
.png "C2-LFP176ah_(6).png")
.png "C2-LFP176ah_(7).png")
.png "C2-LFP176ah_(9).png")
.png "C2-LFP176ah_(8).png")
