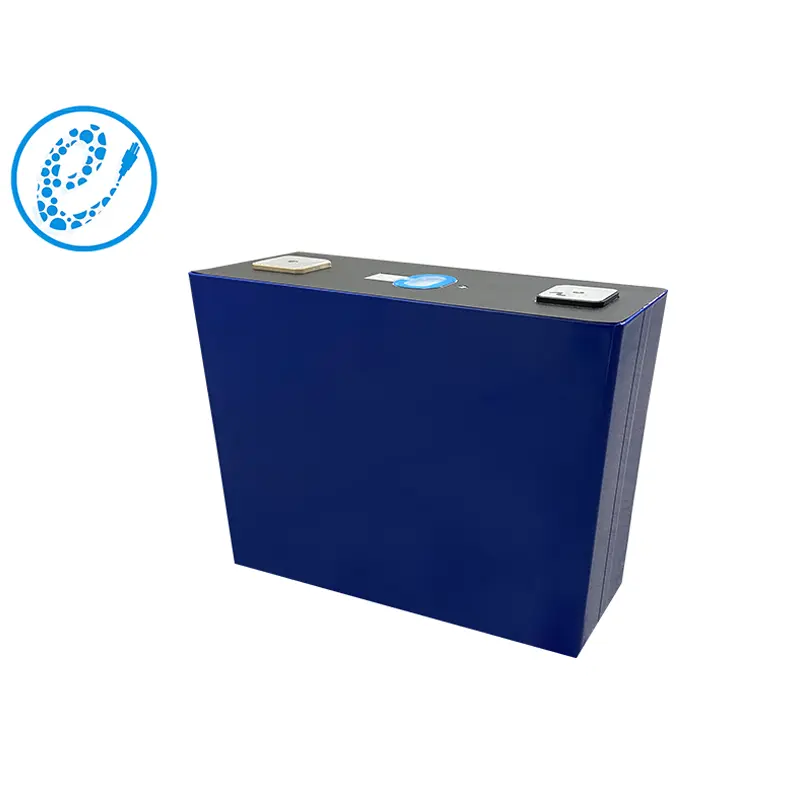

The EcoPower C5-LFP100W LFP battery cell ensures a continuous and ample supply of energy. Whether you're powering a residential household, a commercial establishment, or an off-grid installation, this high-energy battery provides the power you can rely on.
With the C5-LFP100W at the heart of your energy system, you can embrace true energy independence. Harness the power of renewable energy sources like solar panels and wind turbines, store excess energy during peak production, and draw from it during low or no energy generation periods. Say goodbye to dependence on traditional power grids and hello to a sustainable future.
_01.png "C5-LFP100(56148)_01.png")
| Item | Specification | |

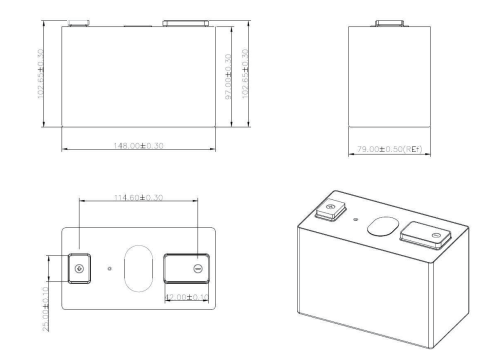

| Dimension (Welding terminal) | 52.32mm * 148.4mm * 119mm | |
| Weight | 1.93±0.1kg | |
| Min. capacity | 100Ah@25±2℃ | |
| Min. energy | 320Wh@25±2℃ | |
| SOC window | 10 ~ 90% | |
| Terminal | Welding | |
| Impedance（1kHz） | ≤0.4mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V(T>0°C) 2.0V( T≤0°C) | |
| Current | Maximum Pulse Charging Current（≤10S) | 200A |
| Maximum Pulse Discharging Current（≤30S） | 300A | |
| Energy density | Gravimetric | 165Wh/kg |
| Volumetric | 346Wh/L | |
| Temp. Condition | Operation (Charge) | 0 ~ 55℃ |
| Operation (Discharge) | -20~55℃ | |
| Storage | -30 ~ 60℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Charge to 50%SOC and storage at 25±2°C for 3 months | 6000 cycles |
| Service Life | 25℃ average temperature | GB/T 31485-2015 |
_03.png "C5-LFP100(56148)_03.png")
_04.png "C5-LFP100(56148)_04.png")
_05.png "C5-LFP100(56148)_05.png")
_06.png "C5-LFP100(56148)_06.png")
_07.png "C5-LFP100(56148)_07.png")
_08.png "C5-LFP100(56148)_08.png")
_09.png "C5-LFP100(56148)_09.png")
