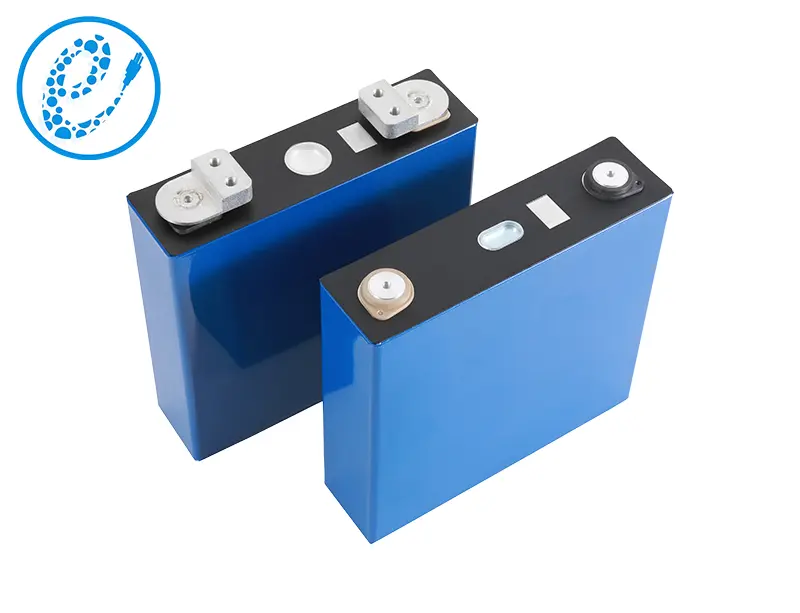

The C2-LFP268W is a high-capacity Lithium Iron Phosphate (LFP) battery cell with 268Wh energy density and excellent safety features. Designed for long cycle life (≥3,000 cycles) and stable performance in temperatures from -20°C to 55°C. Ideal for energy storage, electric vehicles, and renewable energy systems. CE & UN38.3 certified.
.png "lfp268_(1).png")
| Item | Specification | |
| Dimension (Welding terminal) | 47.68±0.8mm *200.7±0.5mm *217.9±0.6mm | |
| Weight | 4.70±0.24 kg | |
| Min. capacity | 268Ah (1C) @ 25℃ | |
| Min. energy | 862.96Wh | |
| SOC window | 10 ~ 90% | |
| Terminal | Welding terminal | |
| Impedance（1kHz） | ≦0.4mΩ | |
| Voltage | Max. | 3.65 V |
| Nominal | 3.22 V | |
| Min. | 2.5V (T＞0℃） 2.0V (T≤0℃) | |
| Current | Maximum continuous charge | 268A |
| Maximum continuous discharge | 268A | |
| Energy density | Gravimetric | 183Wh/kg |
| Volumetric | 413Wh/L | |
| Temp. Condition | Operation (Charge) | 0 ~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Cycle Life | 1C/1C, 80% DOD 25℃ | 3000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
.png "lfp268_(3).png")
.png "lfp268_(4).png")
.png "lfp268_(5).png")
.png "lfp268_(6).png")
.png "lfp268_(8).png")
.png "lfp268_(9).png")
