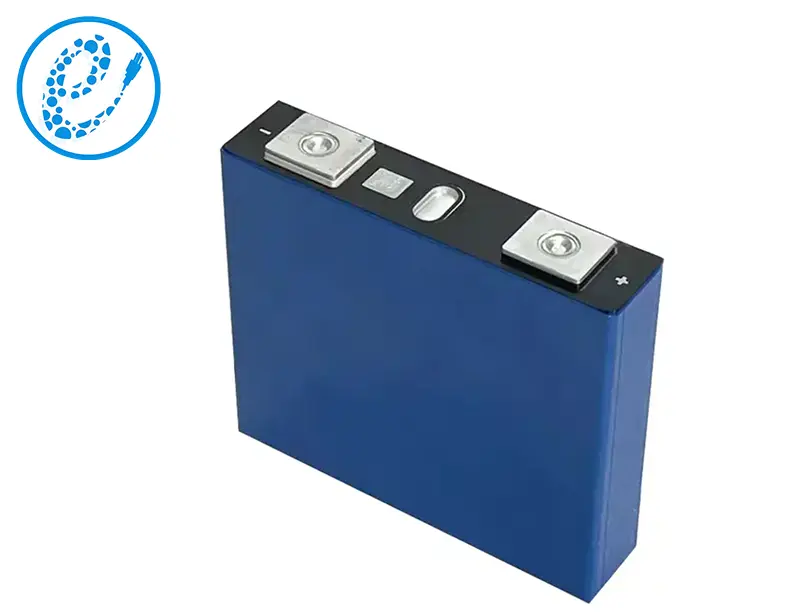

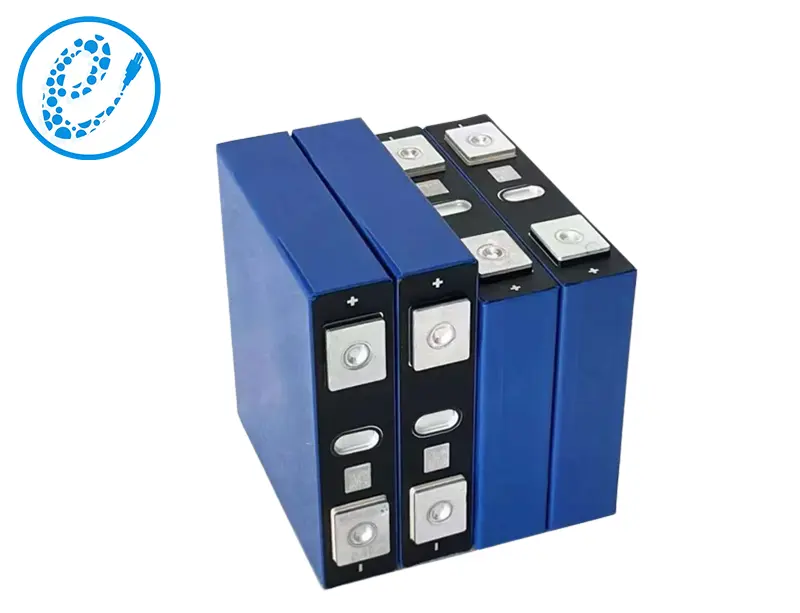

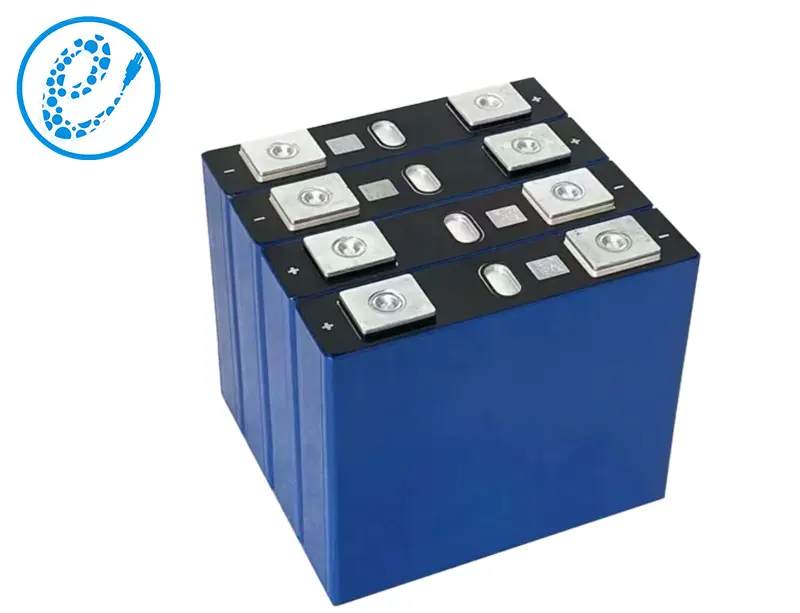

C25-LFP72W

With a capacity of 72Ah, the C25-LFP72W Li phosphate battery ensures a durable energy storage solution that minimizes maintenance and replacement costs.



ItemSpecification

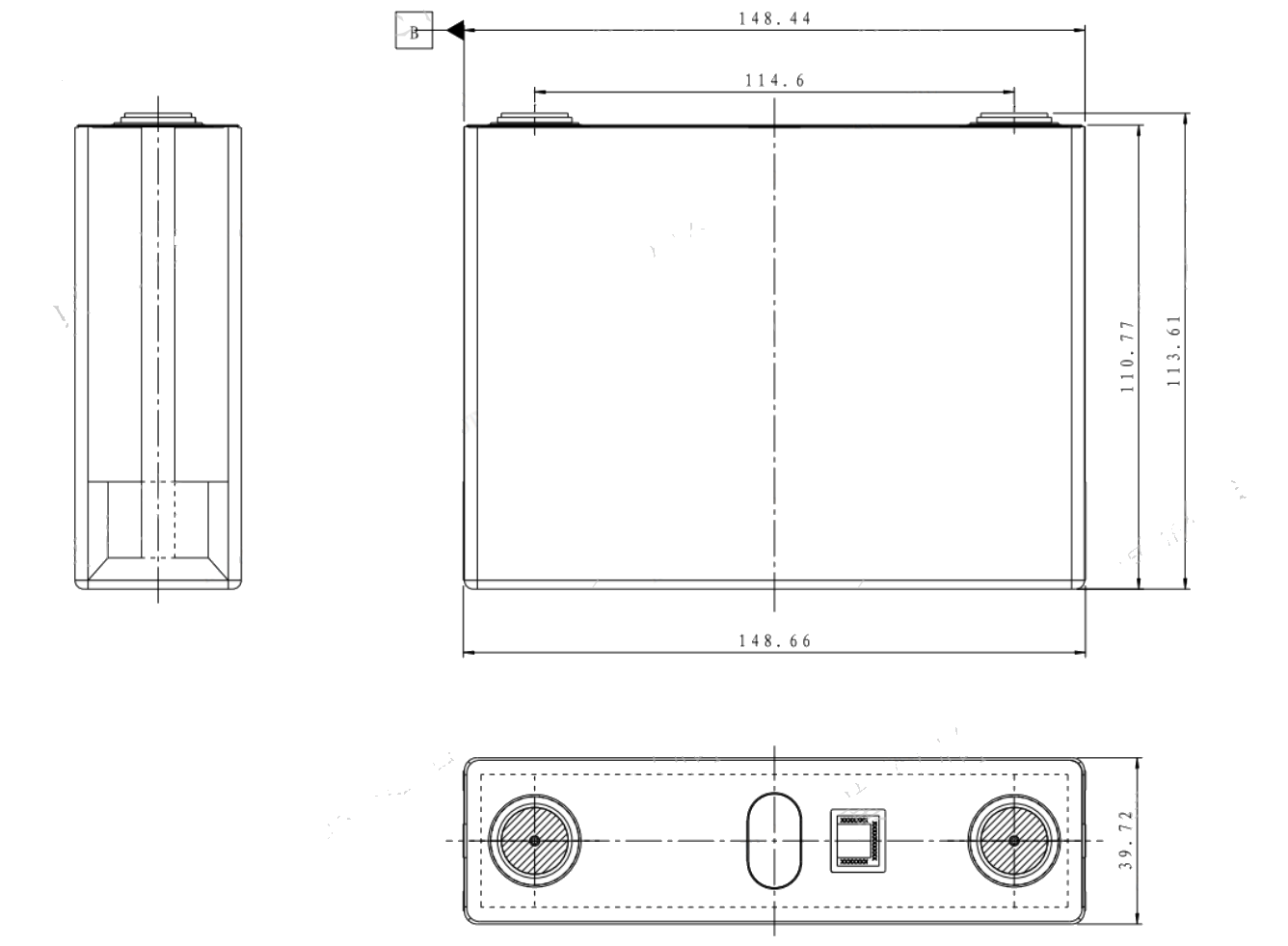

Dimension148.66mm*39.72mm*113.61mm
Weight1.4±0.05Kg
Min.   capacity72Ah (1C) @ 25℃
Min.   energy230.4Wh (1C) @ 25℃
Recommended SOC usage window10   ~ 90%
TerminalWelding Terminal
Impedance(1kHz)≤0.6mΩ
VoltageMax.3.65V
Nominal3.2V
Min.2.0V
CurrentMaximum   discharge rate(continuous)144A @ 25℃
Maximum    discharge rate (peak)216A @ 25℃
Energy densityGravimetric164.57Wh/kg
Volumetric343.44Wh/L
Temp. ConditionOperation   (Charge)0~ 60℃
Operation (Discharge)-30 ~ 60℃
Storage-40 ~ 60℃
Cycle Life1C/1C,   100% DOD 25℃4000   cycles
Abuse testOvercharge,   Over-discharge, Short, HeatGB/T   31485-2015
