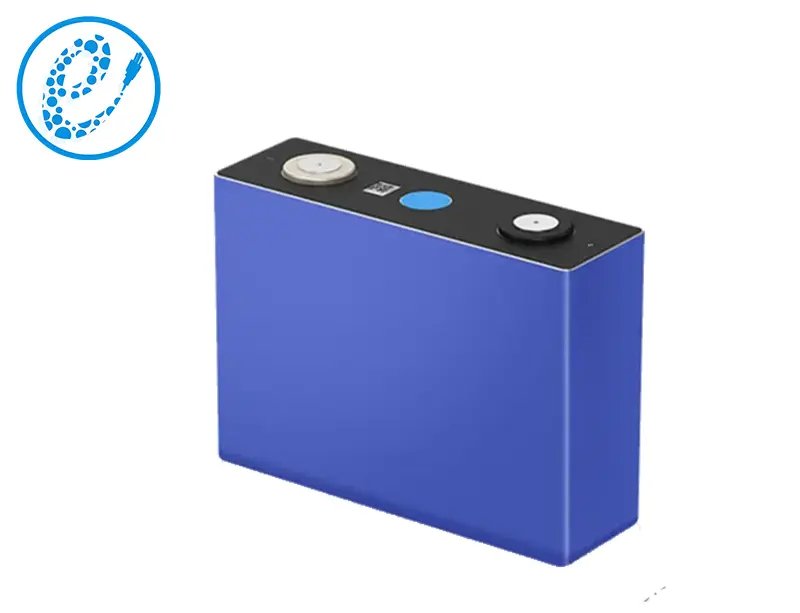

C23-LFP100W Lithium ion battery is a rechargeable energy storage device. It has a robust design, making it resistant to shocks, vibrations, and other environmental factors. Provided by the leading lithium battery manufacturer, it is rated for up to 6000 charge-discharge cycles and is designed for a wide temperature range.
.png "c23-lfp100ah_(1).png")
| Item | Specification | |

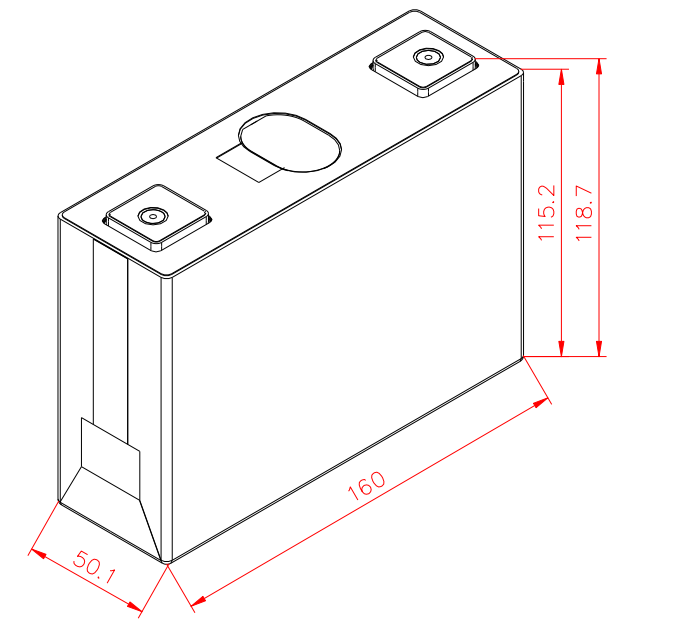

| Dimension | 160mm*50.1mm*118.7mm | |
| Weight | 1925±30g | |
| Min. capacity | 100Ah (1C) @ 25℃ | |
| Min. energy | 322Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.4mΩ （AC） | |
| Voltage | Max. | 3.65V |
| Nominal | 3.22V | |
| Min. | 2.0V （T≤0℃） 2.5V （T＞0℃） | |
| Current | Maximum Continuous discharge current | 100A |
| Maximum pulse discharge current(30s） | 312A | |
| Energy density | Gravimetric | 167Wh/kg |
| Volumetric | 338Wh/L | |
| Temp. Condition | Operation (Charge) | -10~ 55℃ |
| Operation (Discharge) | -30 ~ 60℃ | |
| Storage | 0 ~ 35℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 6000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
.png "c23-lfp100ah_(3).png")
.png "c23-lfp100ah_(4).png")
.png "c23-lfp100ah_(5).png")

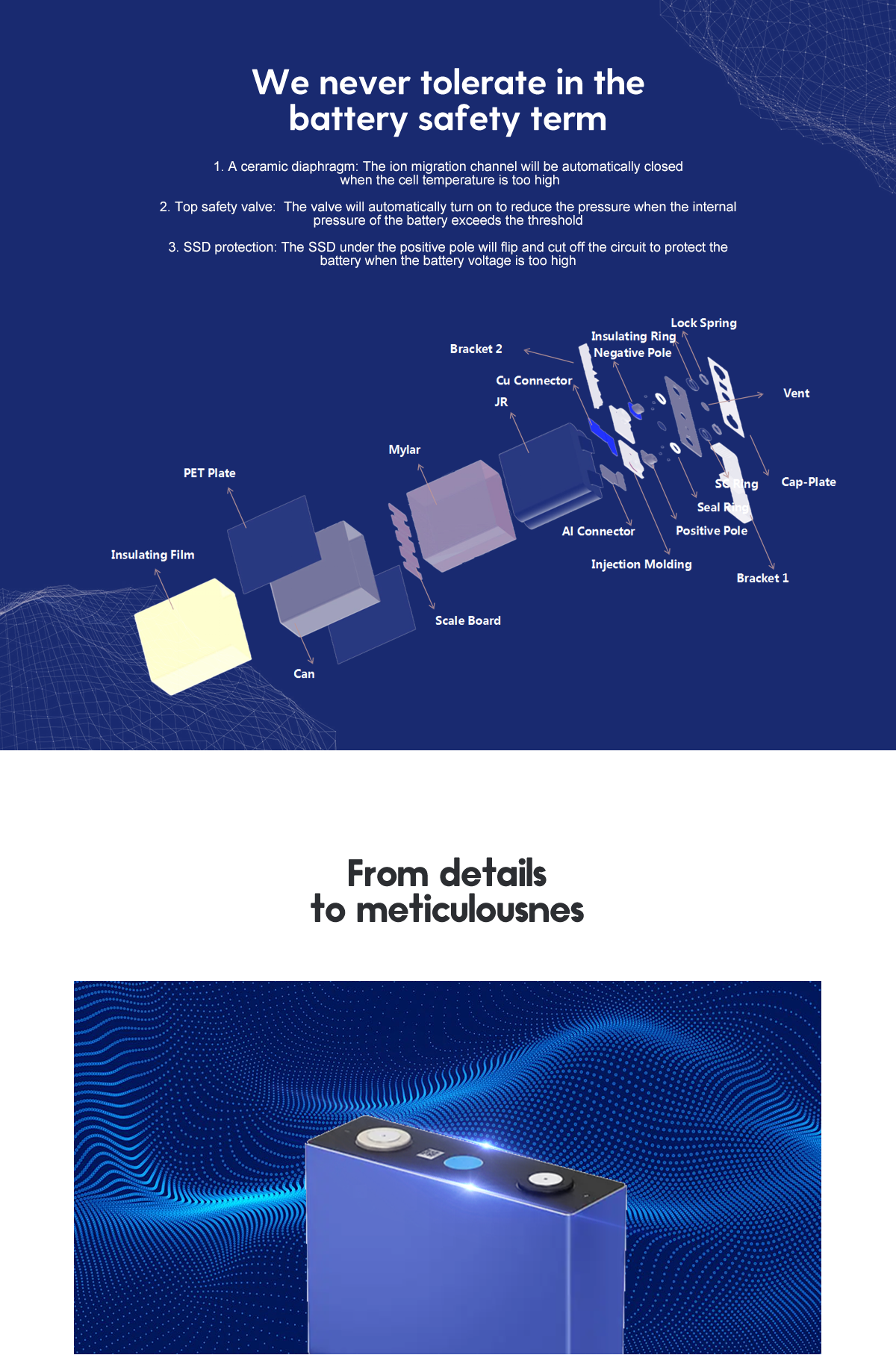

.png "c23-lfp100ah_(6).png")
.png "c23-lfp100ah_(7).png")
.png "c23-lfp100ah_(8).png")
.png "c23-lfp100ah_(9).png")
