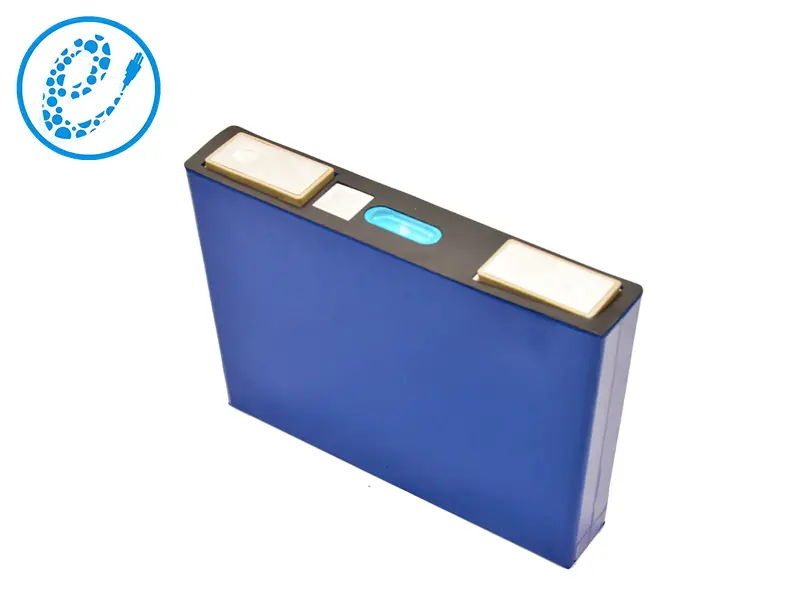

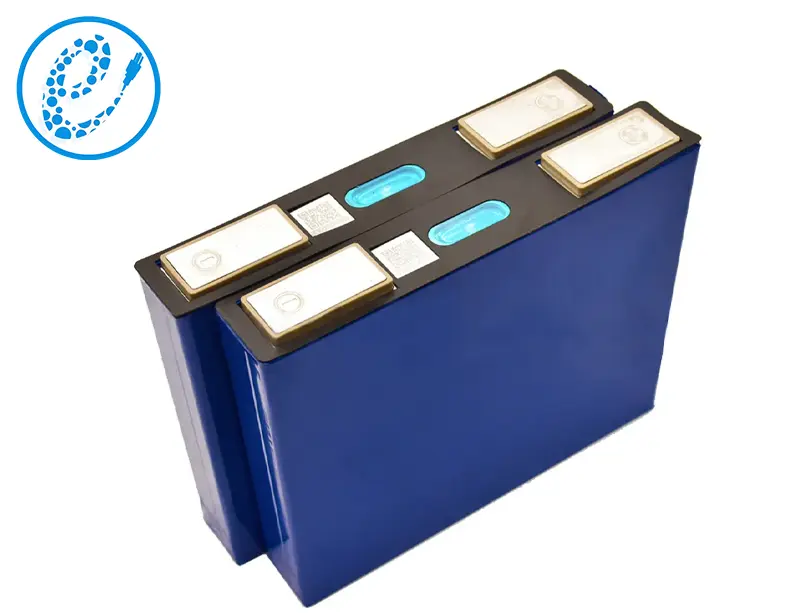

C21-LFP25W LiFePO4 is a type of rechargeable lithium iron phosphate cell, it is lightweight and resistant to temperature changes, making it suitable for use in a variety of applications where weight and temperature resistance are important.
.png "c21-lfp25ah_(1).png")
| Item | Specification | |

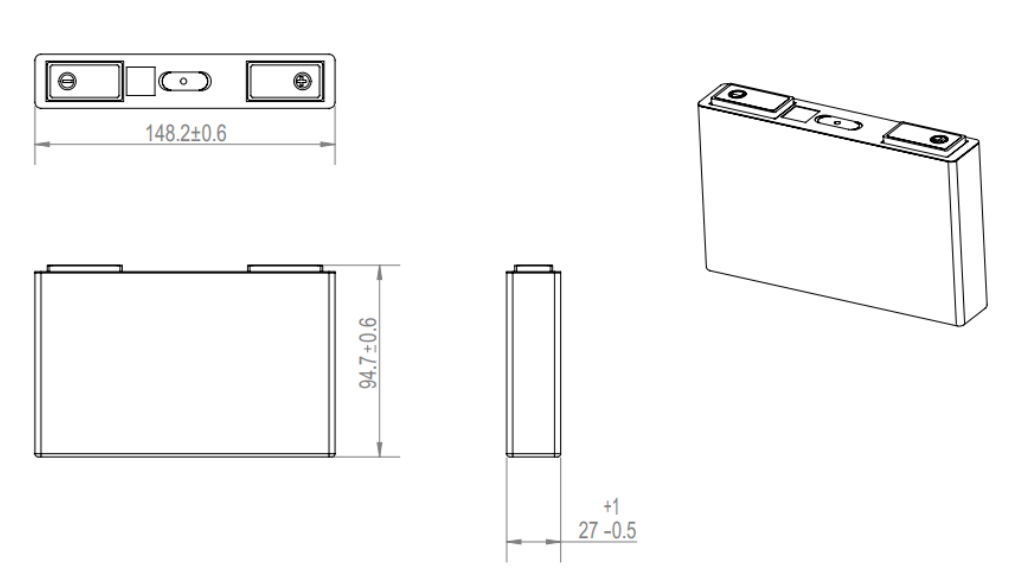

| Dimension | 27mm*148mm*95mm | |
| Weight | 720±20g | |
| Min. capacity | 25Ah (1C) @ 25℃ | |
| Min. energy | 80Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤1mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.0V （≥-10℃） 1.8V （＜-10℃） | |
| Current | Maximum continuous charge | 5C |
| Maximum continuous discharge | 15C | |
| Energy density | Gravimetric | 111.11Wh/kg |
| Volumetric | 210.73Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 60℃ |
| Operation (Discharge) | -20 ~ 60℃ | |
| Storage | -20 ~ 40℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 5000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
.png "c21-lfp25ah_(3).png")
.png "c21-lfp25ah_(4).png")

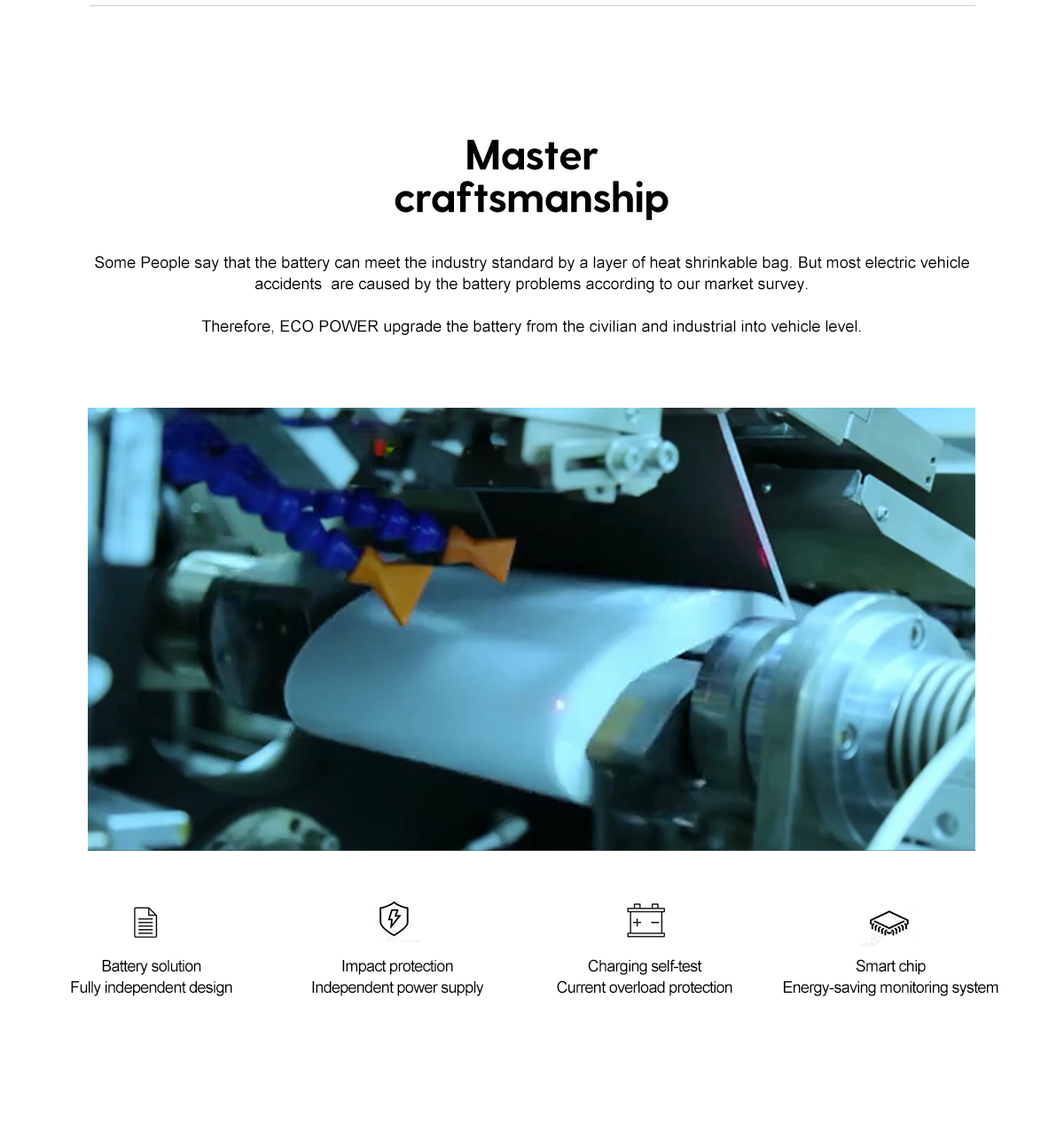

.png "c21-lfp25ah_(5).png")

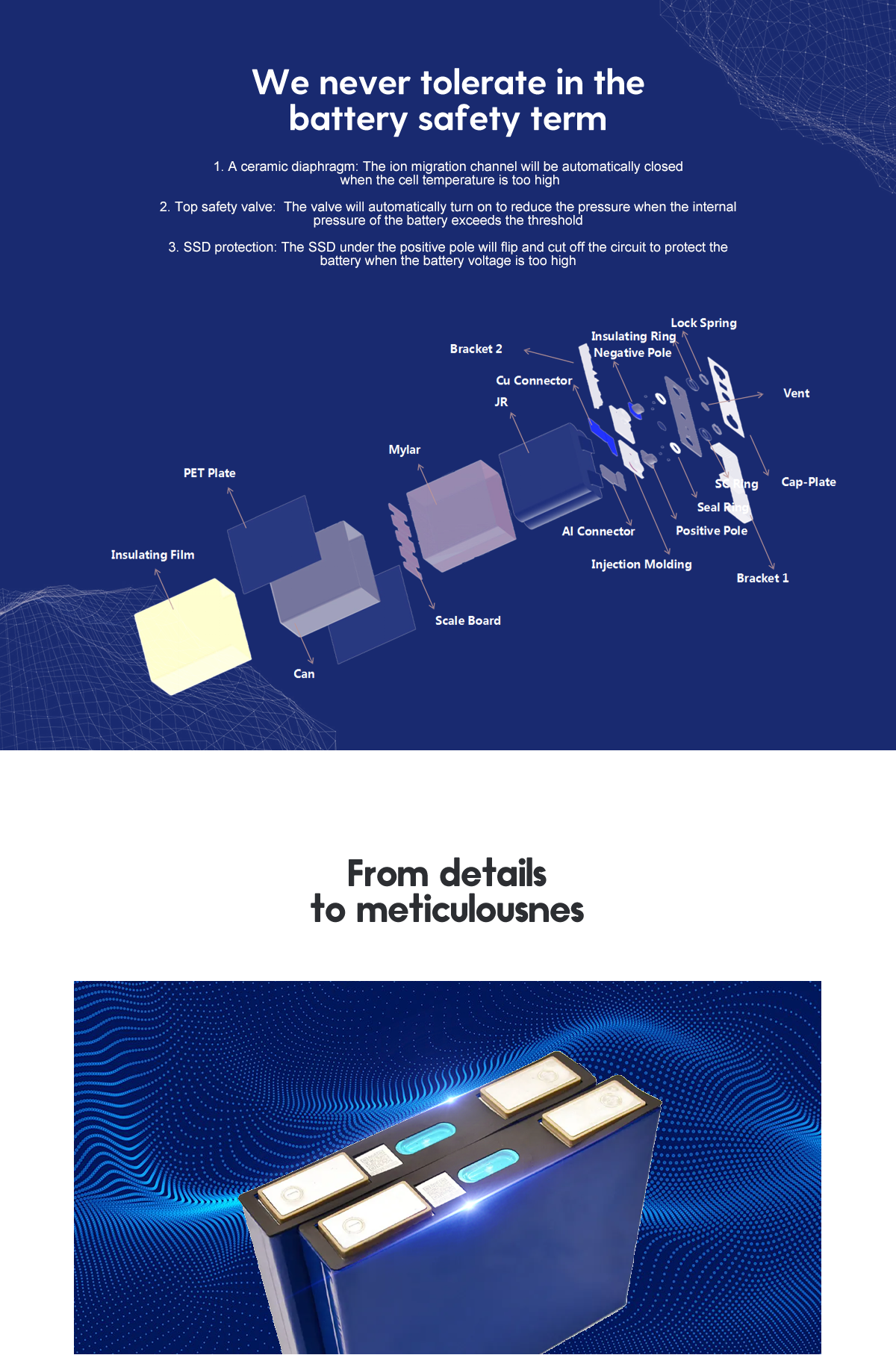

.png "c21-lfp25ah_(6).png")
.png "c21-lfp25ah_(7).png")
.png "c21-lfp25ah_(8).png")
.png "c21-lfp25ah_(9).png")
