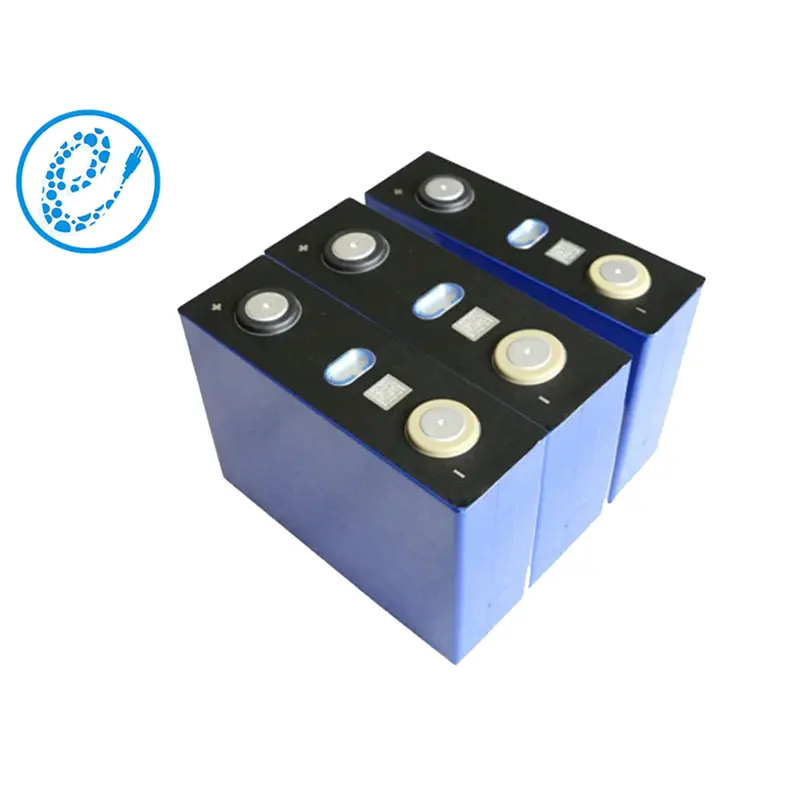

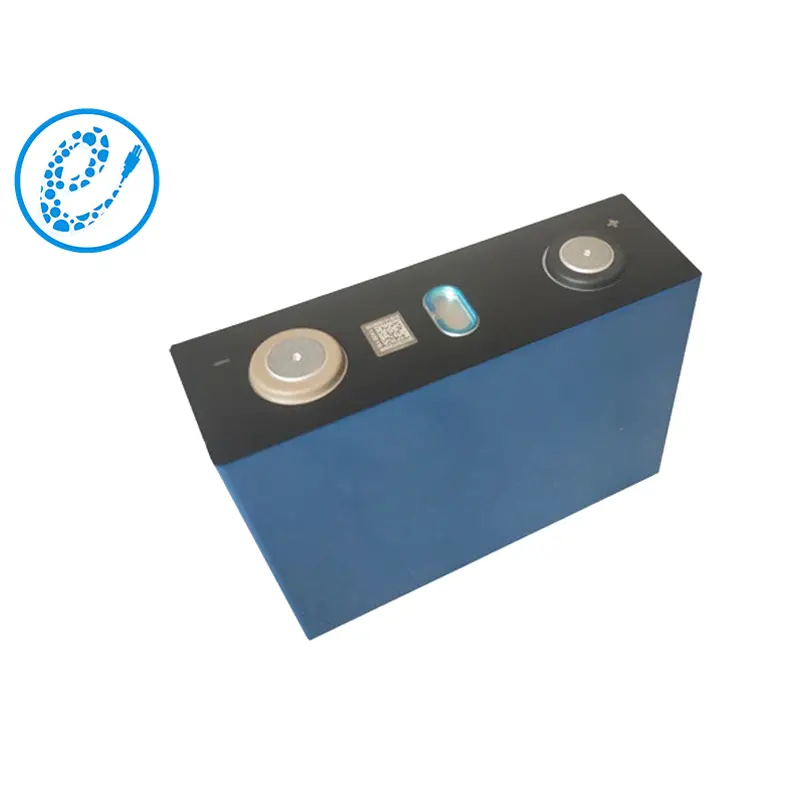

C25-LFP100

The EcoPower C25-LFP100 has a capacity of 100Ah and dimensions of 160.44mm * 49.92mm * 118.61mm. It can provide you with an adequate and stable energy supply, whether it is in the field of domestic energy storage or commercial and industrial energy storage.




Specification of C25-LFP100


ItemSpecification

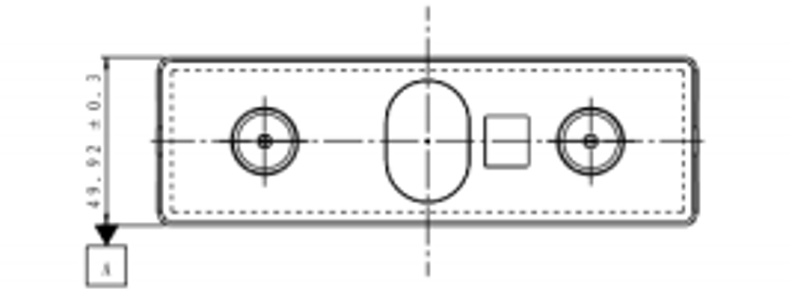

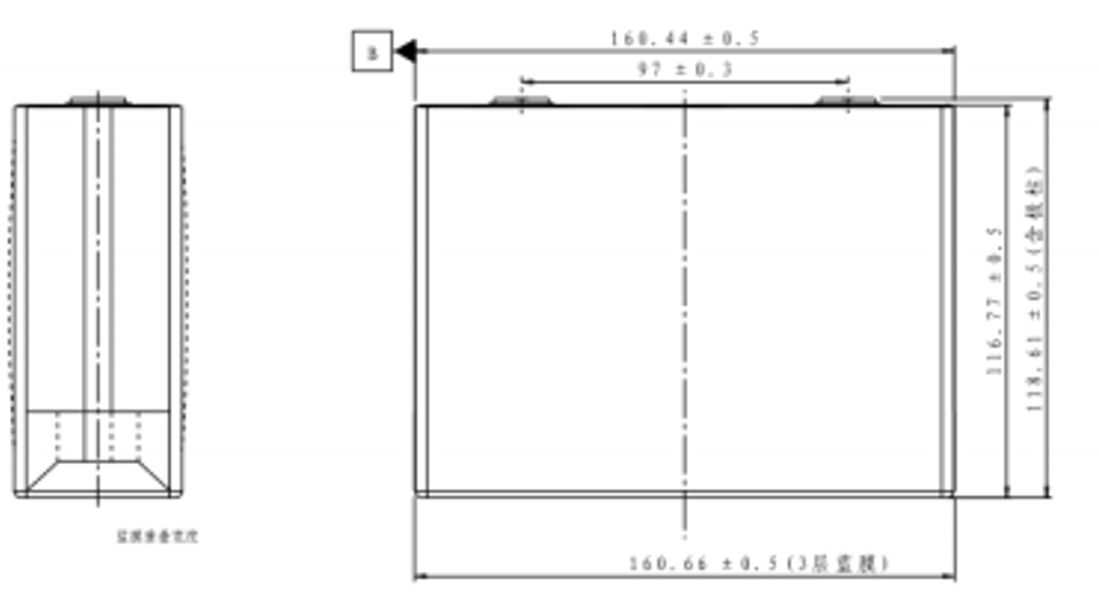

Dimension (Welding terminal)160.44mm * 49.92mm * 118.61mm
Weight2.0±0.1kg
Min. capacity

102Ah@25±2℃(1/3C)

100Ah@25±2℃(1C)

Min. energy

326Wh@25±2℃(1/3C)

314Wh@25±2℃(1C)

SOC window10 ~ 90%
Terminal Welding
Impedance1kHz≤0.6mΩ
VoltageMax.3.65V
Nominal3.2V
Min.

2.5V(T>0°C)

2.0V(T≤0°C)

CurrentStandard charge rate0.5C
Maximum continuous discharge200A
Energy densityGravimetric160Wh/kg
Volumetric344Wh/L
Temp. ConditionOperation   (Charge)0 ~ 60
Operation (Discharge)-30 ~ 60℃
Storage -40   ~ 60
Self-Discharge Rate Count   after fresh cell need Standard Charge to 50%SOC and storage at 25±2°C for 3   months5000cycles
Service Life25 average temperatureGB/T  31485-2015
