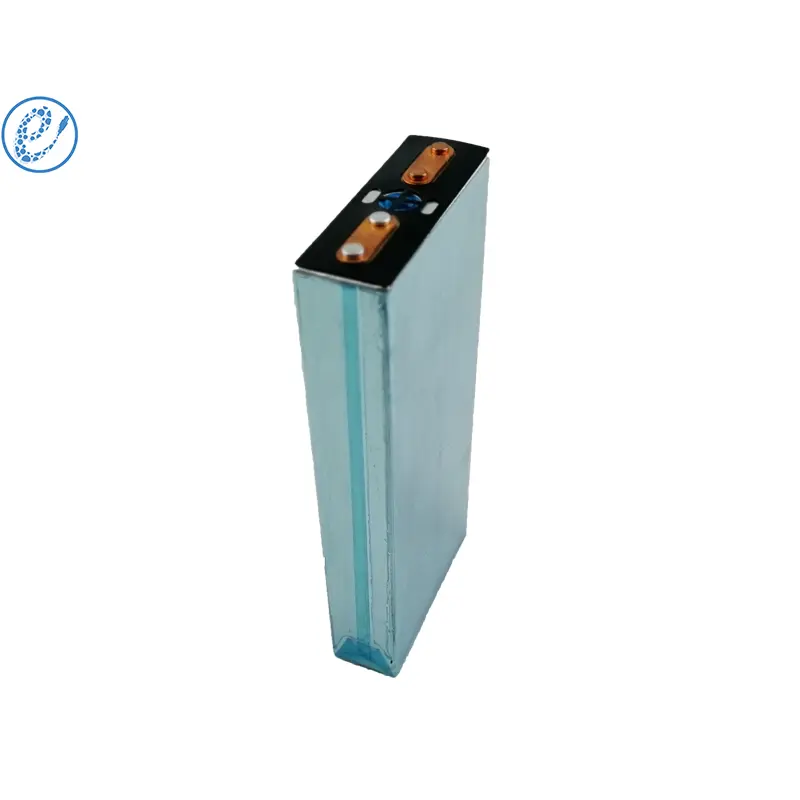

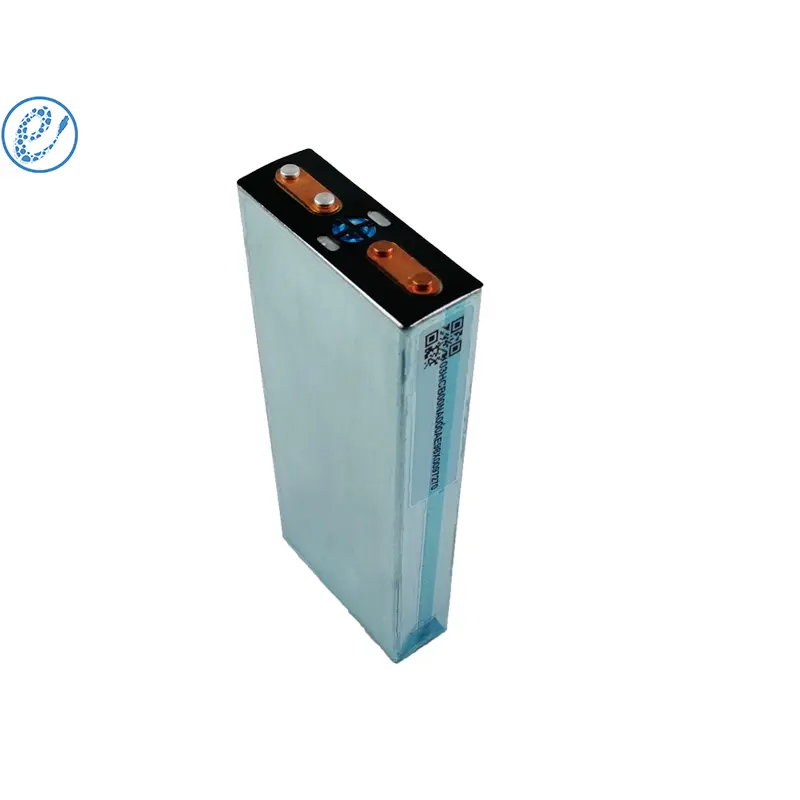

The EcoPower C20-LFP23W is a rechargeable Lithium Iron Phosphate (LFePO4) battery cell that ensures long life, reduces replacement frequency and minimises environmental impact. With a electric scooter power system, the lifep04 solar battery is the optimal choice for powering large industrial operations, commercial facilities and critical infrastructure.
| Item | Specification | |

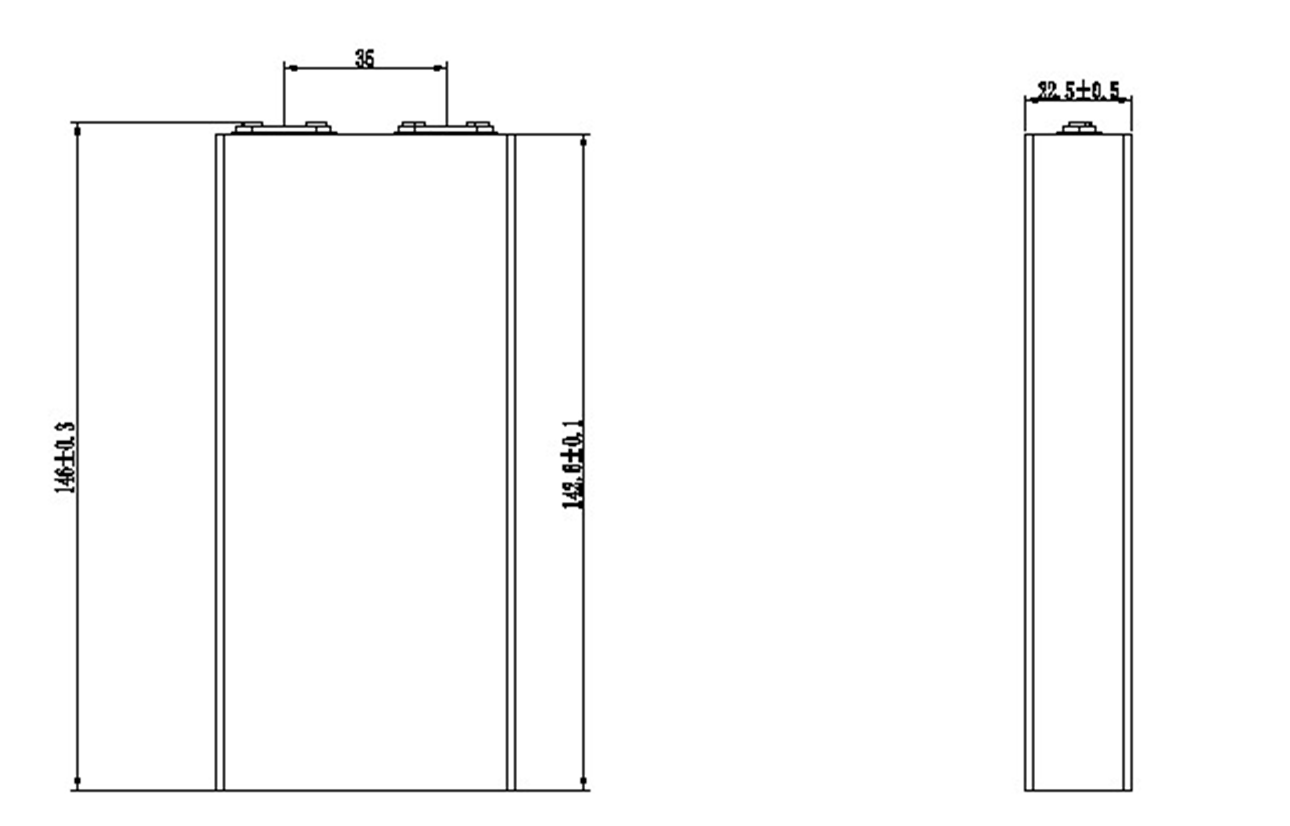

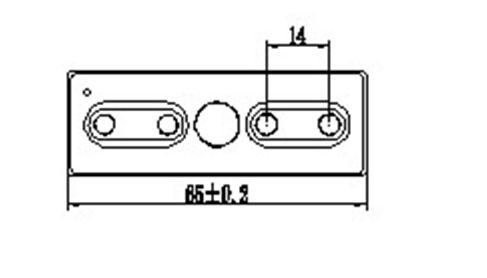

| Dimension | 22.5mm*65mm*146mm | |
| Weight | 435g±5g | |
| Min. capacity | 23Ah (1C) @ 25℃ | |
| Min. energy | 73.6Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤7mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.0V | |
| Current | Maximum continuous charge | 0.5C 5℃～15℃ 0%~90%SOC |
| 0.5C 15℃～35℃ 0%~100%SOC | ||
| 1C 15℃～35℃ 0%~80%SOC | ||
| Maximum continuous discharge | 1.5C | |
| Energy density | Gravimetric | 169Wh/kg |
| Volumetric | 344Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -30 ~ 55℃ | |
| Storage | 10 ~ 30℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
