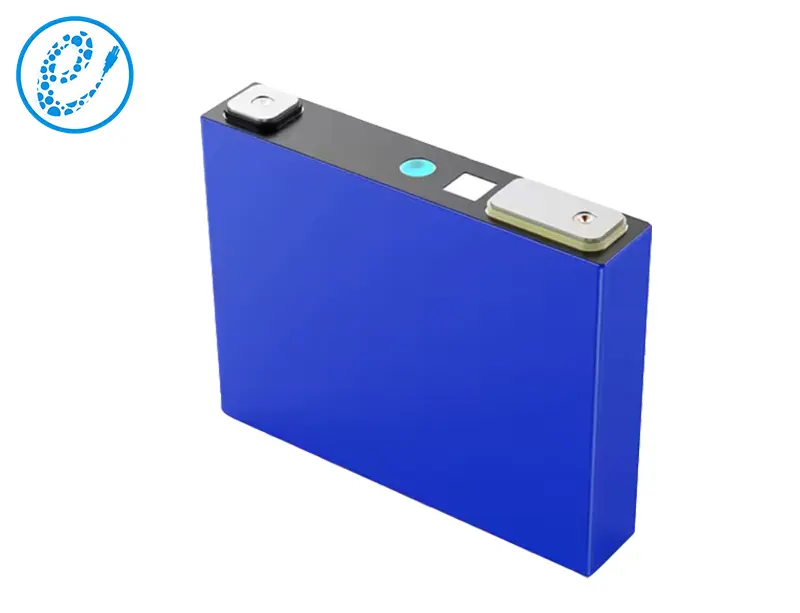

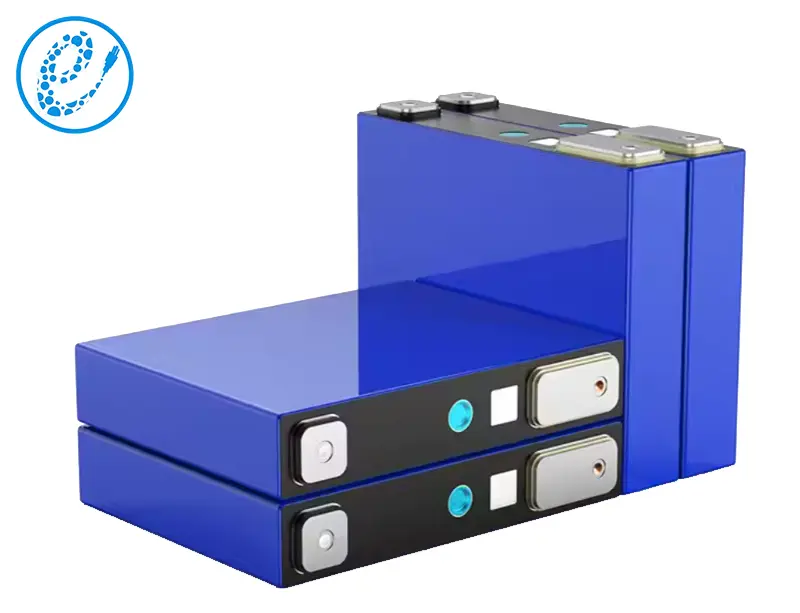

The LFP52Ah LiFePo4 cell offers outstanding performance with a maximum continuous charge current of 1C and a maximum continuous discharge current of 2C, making it ideal for high-demand applications. With dimensions of 27x148x134mm, this lithium iron phosphate (LFP) cell ensures long-lasting reliability and stability.
| Item | Specification | |

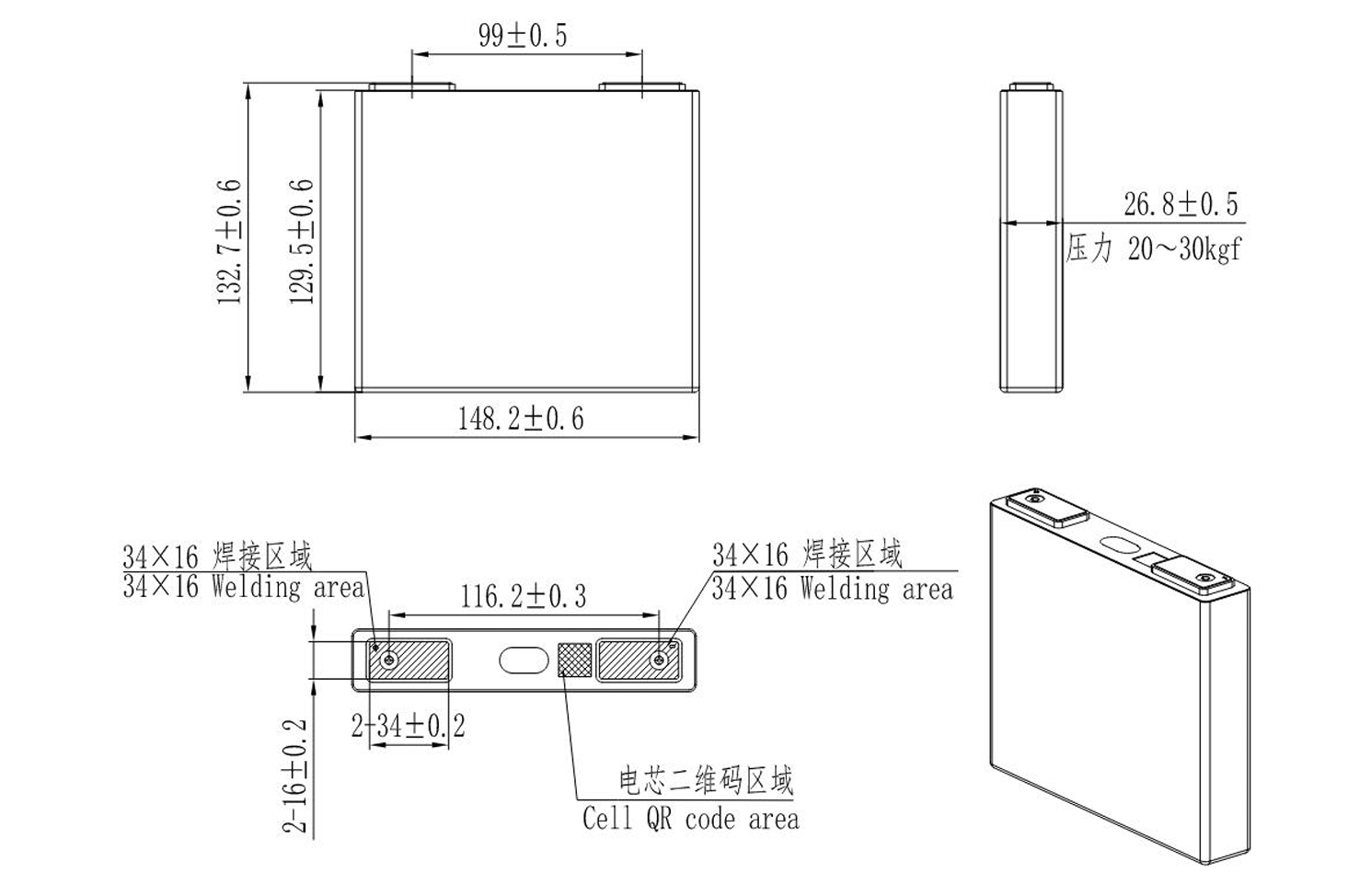

| Dimension (Welding terminal) | 26.8±0.5mm *148.2±0.6mm *132.7±0.6mm | |
| Weight | 1110±20g | |
| Min. capacity | 52Ah (1C) @ 25℃ | |
| Min. energy | 166.4Wh | |
| SOC window | 10 ~ 90% | |
| Terminal | Welding terminal | |
| Impedance（1kHz） | ≦0.6mΩ | |
| Voltage | Max. | 3.65 V |
| Nominal | 3.2 V | |
| Min. | 2.5V (T≥0℃） 2.0V (T＜0℃) | |
| Current | Maximum continuous charge | 1C |
| Maximum continuous discharge | 2C | |
| Energy density | Gravimetric | 149Wh/kg |
| Volumetric | 315Wh/L | |
| Temp. Condition | Operation (Charge) | 0 ~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Cycle Life | 1C/1C, 80% DOD 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
