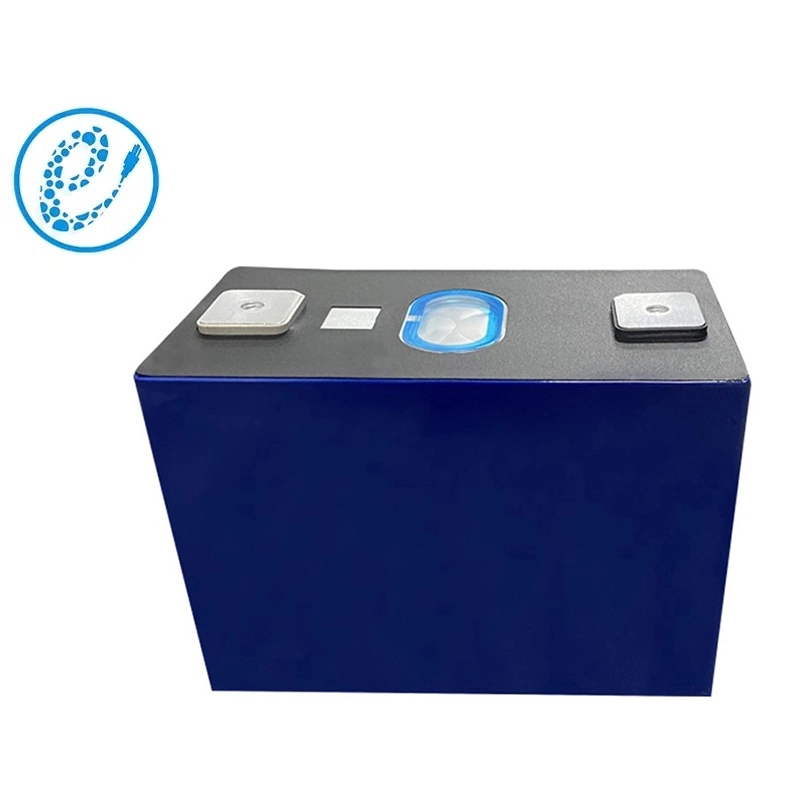

C12-LFP120W

C12-LFP120W LiFePO4 features a newly developed LiFePO4 chemistry which provides up to 4000 cycles at 80% DOD. It is ideal for applications including electric vehicles, solar and wind energy storage, UPS systems, and backup power.

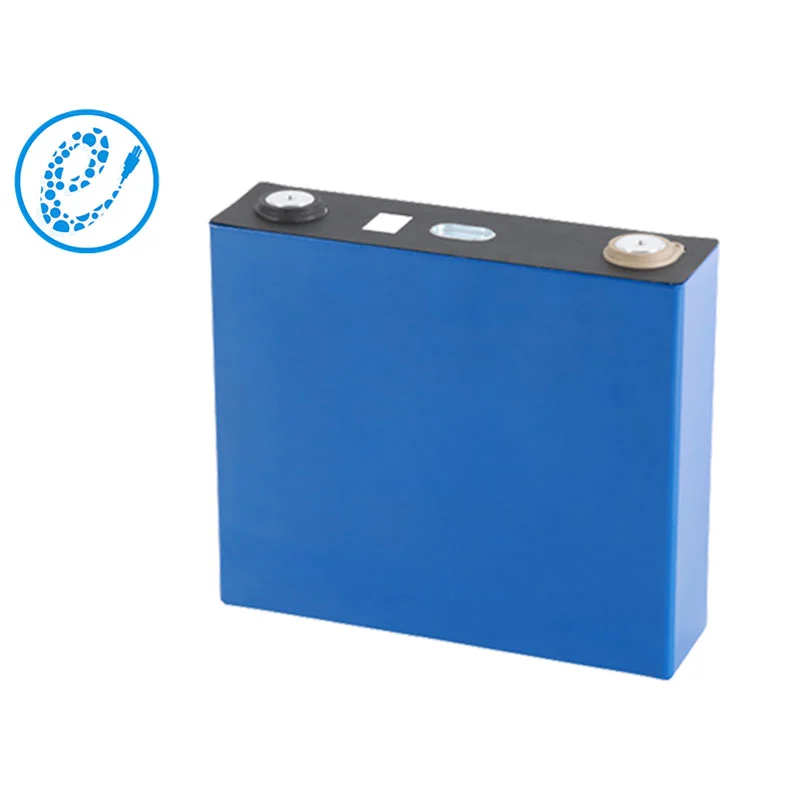

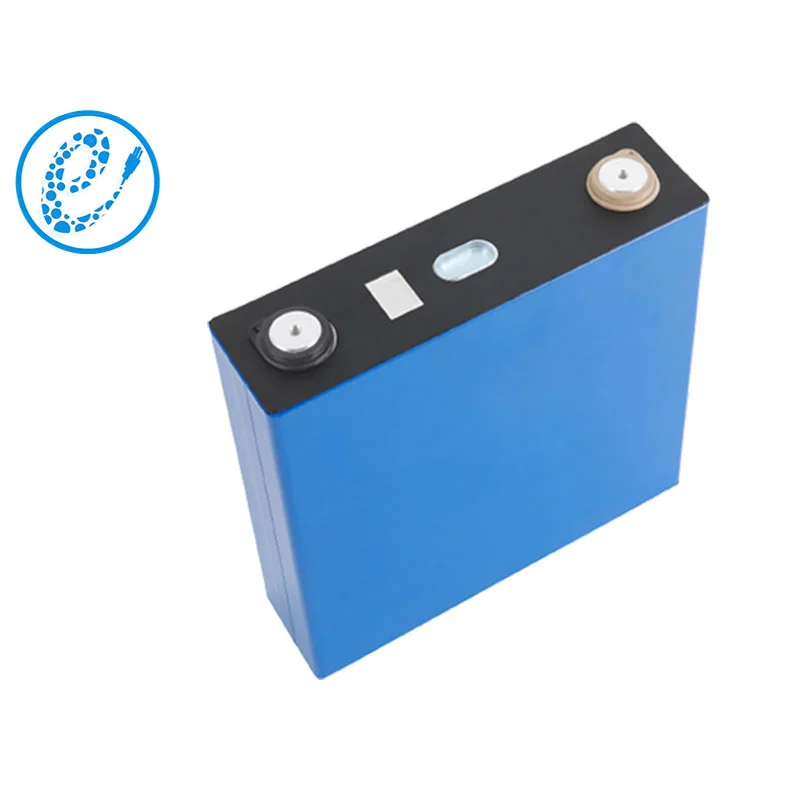

C12-LFP120W/N 120Ah LiFePO4


Specification of C12-LFP120W 120Ah LiFePO4

ItemSpecification

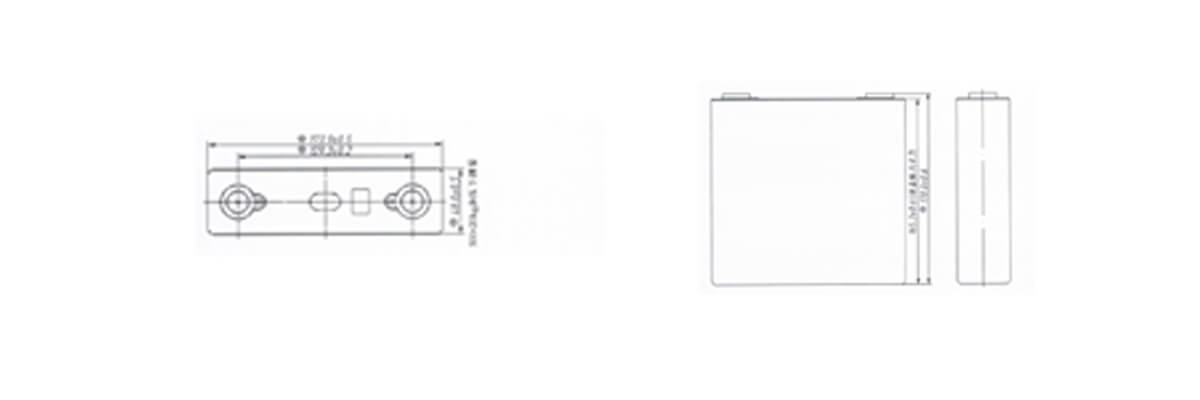

Dimension48.0mm*173.9mm*170.0mm
WeightMAX.2.86kg
Min. capacity120Ah(25±2)℃
Min. energy

384Wh

SOC window10~90%
TerminalWelding
Impedance ( 1kHz)≤0.3mΩ
VoltageMax.3.65V
Nominal3.2V
Min.

2.50V(T>0℃)

2.00V(T≤0℃)

PowerRated charging power200W
Rated discharging power190W
Energy densityGravimetric134Wh/kg
Volumetric270Wh/L
Temp. ConditionOperation (Charge)0~50℃
Operation (Discharge)-20~55℃
Storage-30~45℃
Cycle Life1C/1C,80% DOD 25℃4000 cycles
Abuse testOvercharge, Over-discharge, Short, HeatGB/T 31485-2015


C12-LFP120W/N 120Ah LiFePO4

C12-LFP120W/N 120Ah LiFePO4

C12-LFP120W/N 120Ah LiFePO4

C12-LFP120W/N 120Ah LiFePO4

C12-LFP120W/N 120Ah LiFePO4

C12-LFP120W/N 120Ah LiFePO4

C12-LFP120W/N 120Ah LiFePO4

C12-LFP120W/N 120Ah LiFePO4
