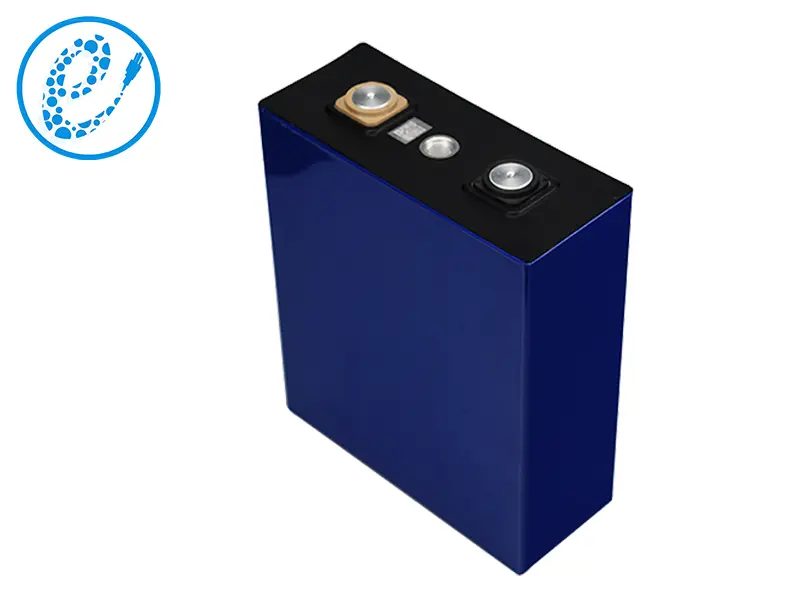

The EcoPower C10-LFP277WN boasts capacity of 277Ah, ensuring an uninterrupted and substantial energy supply. Whether you're powering a residential complex, commercial facility, or industrial setup, this high-capacity battery delivers the energy required for your operations.
With the C10-LFP277WN LFP battery cells as your energy storage solution, you gain true energy freedom. Harness the power of renewable energy sources, such as solar panels and wind turbines, and store surplus energy for use during non-productive periods. Embrace self-reliance and reduce dependency on traditional power grids.
| Item | Specification | |

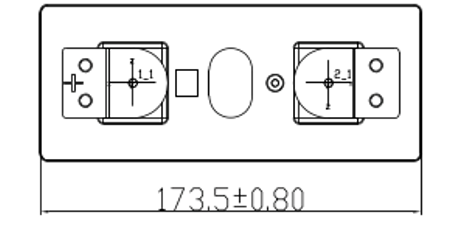

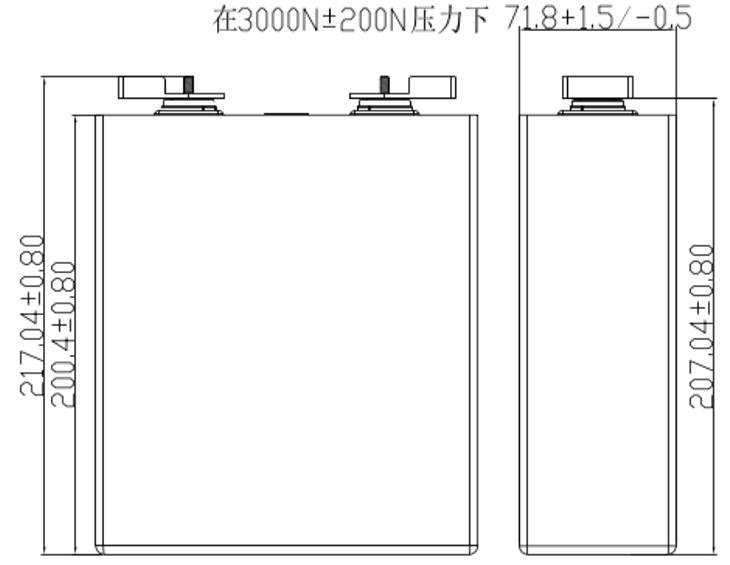

| Dimension (Welding terminal) | 71.8mm*173.5mm*207.1mm | |
| Dimension (Screw terminal) | 71.8mm*173.5mm*217.1mm | |
| Weight | MAX.5.8Kg | |
| Min. capacity | 277Ah(1C) (25±2)℃ | |
| Min. energy | 886.4Wh(1C) (25±2)℃ | |
 SOC window | 10 ~ 90% | |

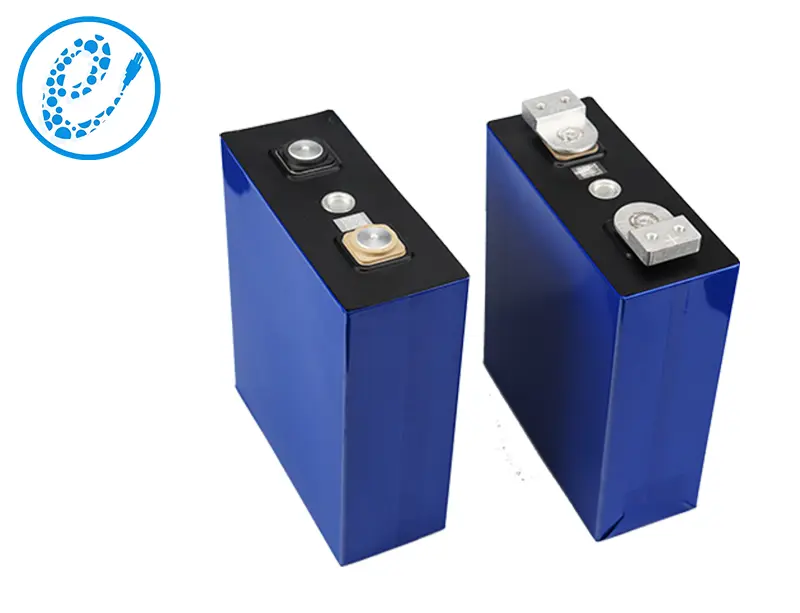

| Terminal | Welding / Screw terminal | |
| Impedance（1kHz） | ≤0.4mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V(0~60℃) 2.0V(-20~-0℃) | |
| Current | Maximum continuous charge | 1C |
| Maximum continuous discharge | 1C | |
| Energy density | Gravimetric | 152Wh/kg |
| Volumetric | 343Wh/L | |
| Temp. Condition | Operation (Charge) | 0~60℃ |
| Operation (Discharge) | -20~60℃ | |
| Self-Discharge Rate | Count after fresh cell need Standard Charge to 50%SOC and storage at 25±2°C for 3 months | ≤3.5% |
| Cycle Life | 1C/1C, 80% DOD 25℃ | 3000cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
