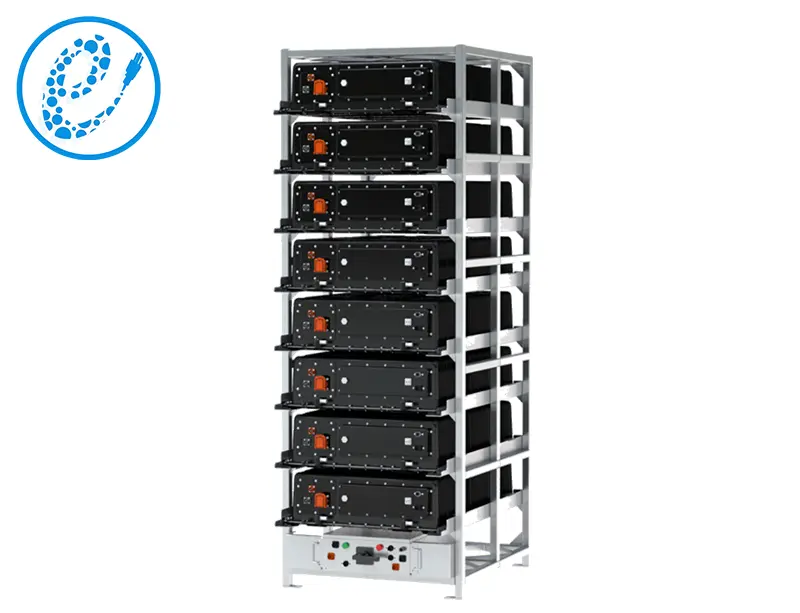

Massive lithium battery system with 417 kWh industrial energy storage capacity and 314Ah capacity, organized in a 416-series configuration. Ideal for remote industrial sites, military installations, and large-scale renewable energy projects.

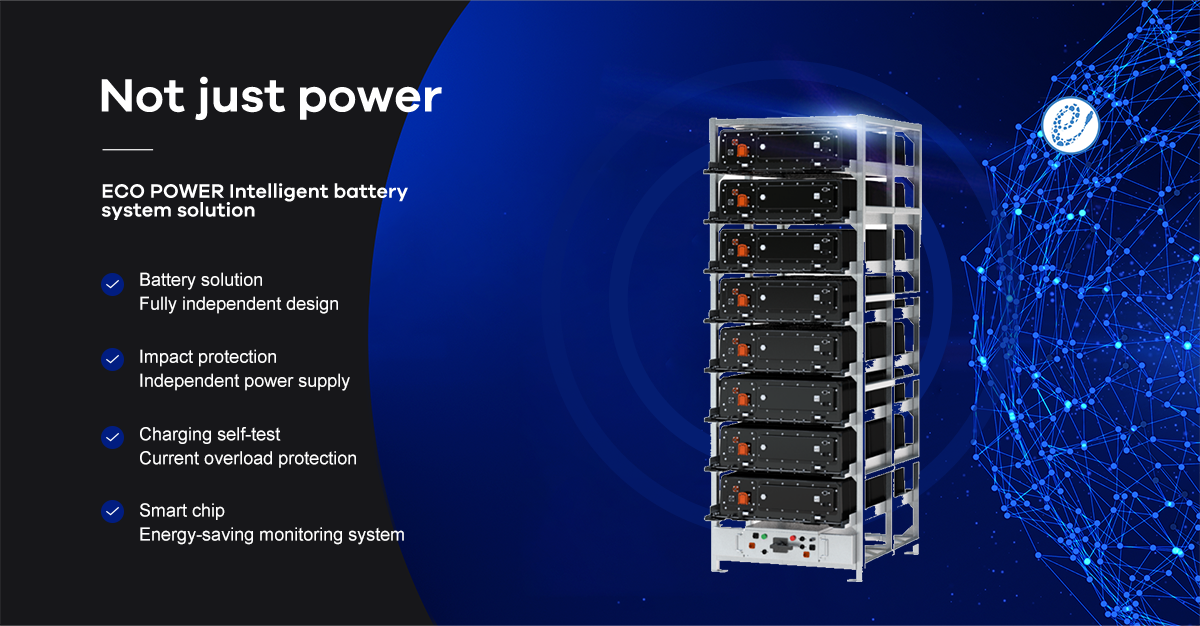

.png "314ah1p416s_(1).png")
| Item | Parameters | |
| SSXXXX02-1331.2V280A（280AH1P416S）Battery Pack | Nominal Voltage | 1331.2V |
| Rated Capacity（@ 20±5℃ 0.3C） | 314Ah | |
| Nominal Energy（@ 20±5℃ 0.3C/0.3C100%DOD） | ≈417.996kWh | |
| Nominal Charge Rate | 0.5P | |
| Nominal Discharge Rate | 0.5P | |
| Battery Configuration | 416 series of 3.2V314Ah cell | |
| Battery Operating Voltage Range | 1144~1497.6V | |
| Operating Temperature Range | 0～45℃ | |
| Storage Temperature Range | -10～55℃ | |
| Recommended Operating Range of SOC | 20%～100% | |
| SOC Requirement for long period idle and storage | ≈30% SOC | |
| Dimension | ≈960*1150*2600mm | |
| Weight | ≈3000kg | |
.png "314ah1p416s_(3).png")

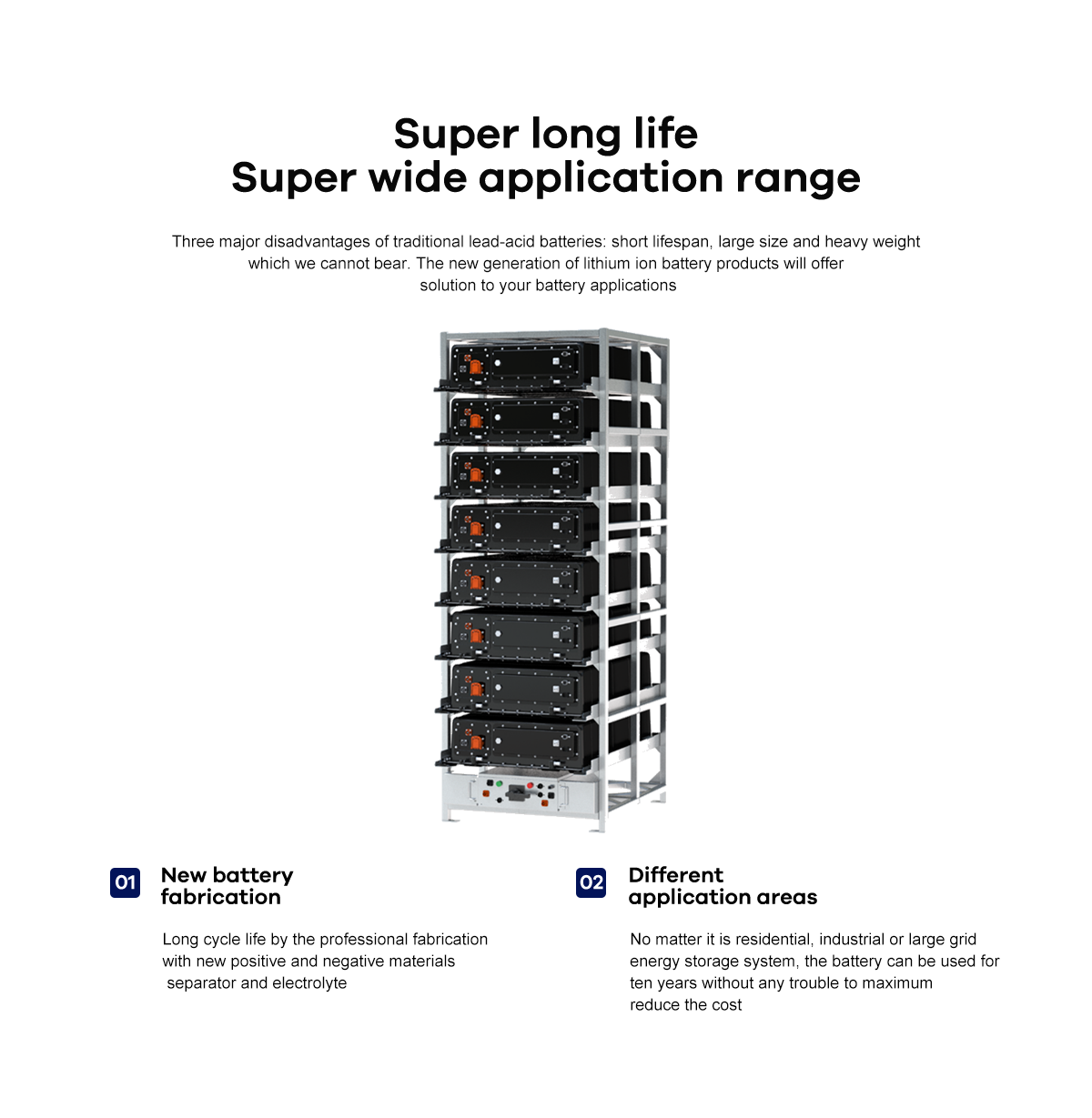

.png "314ah1p416s_(4).png")

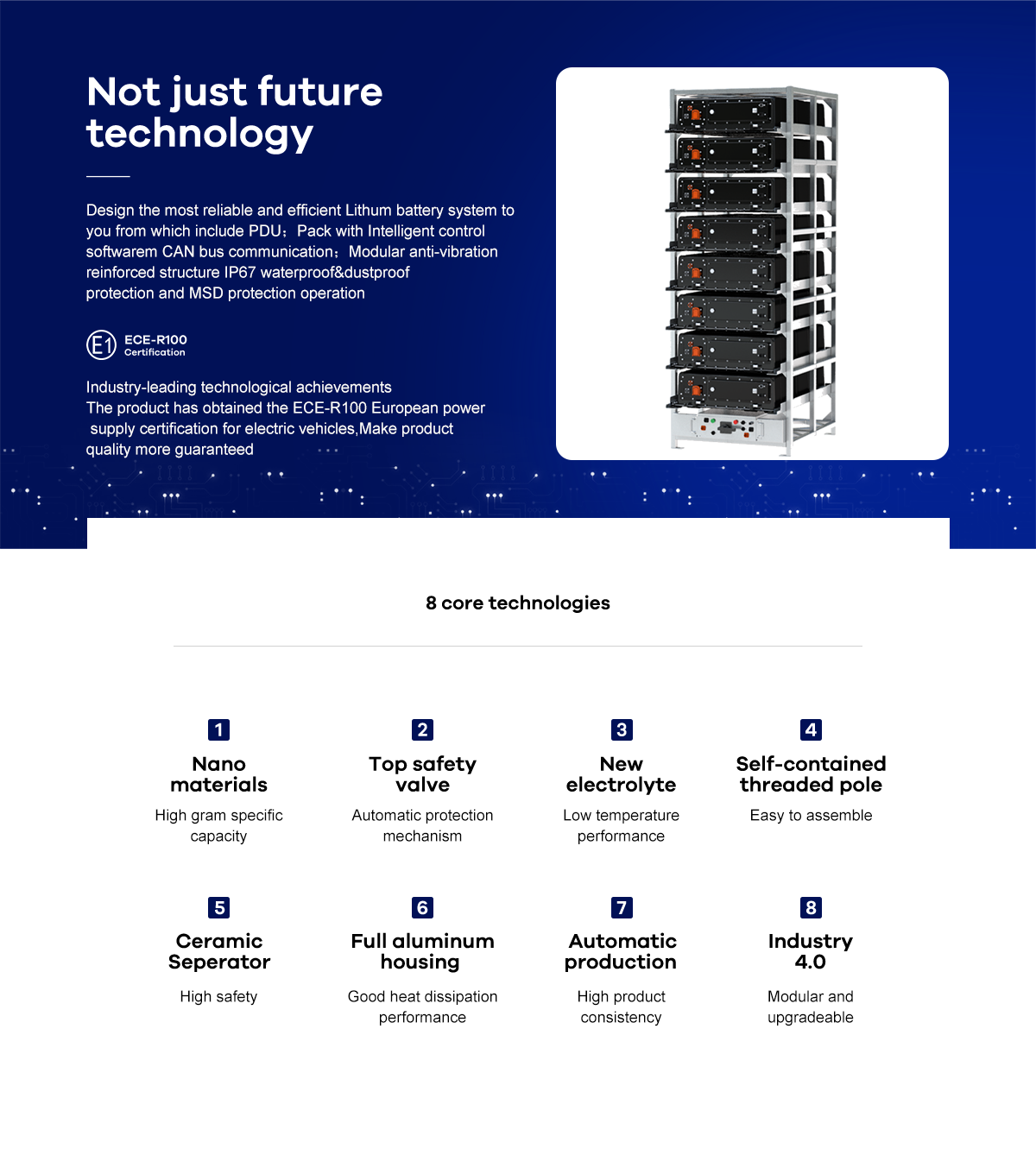

.png "314ah1p416s_(5).png")

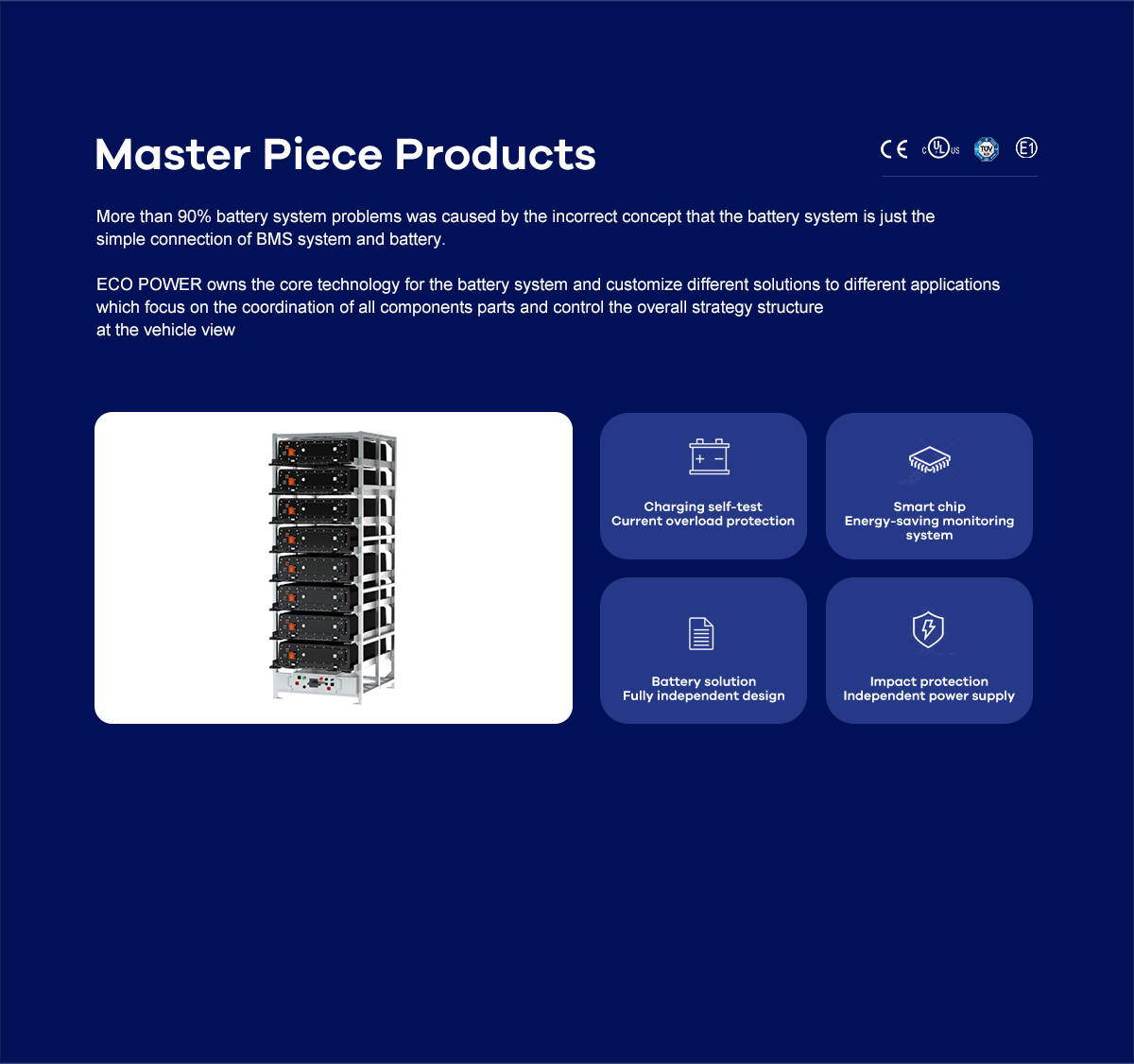

.png "314ah1p416s_(6).png")

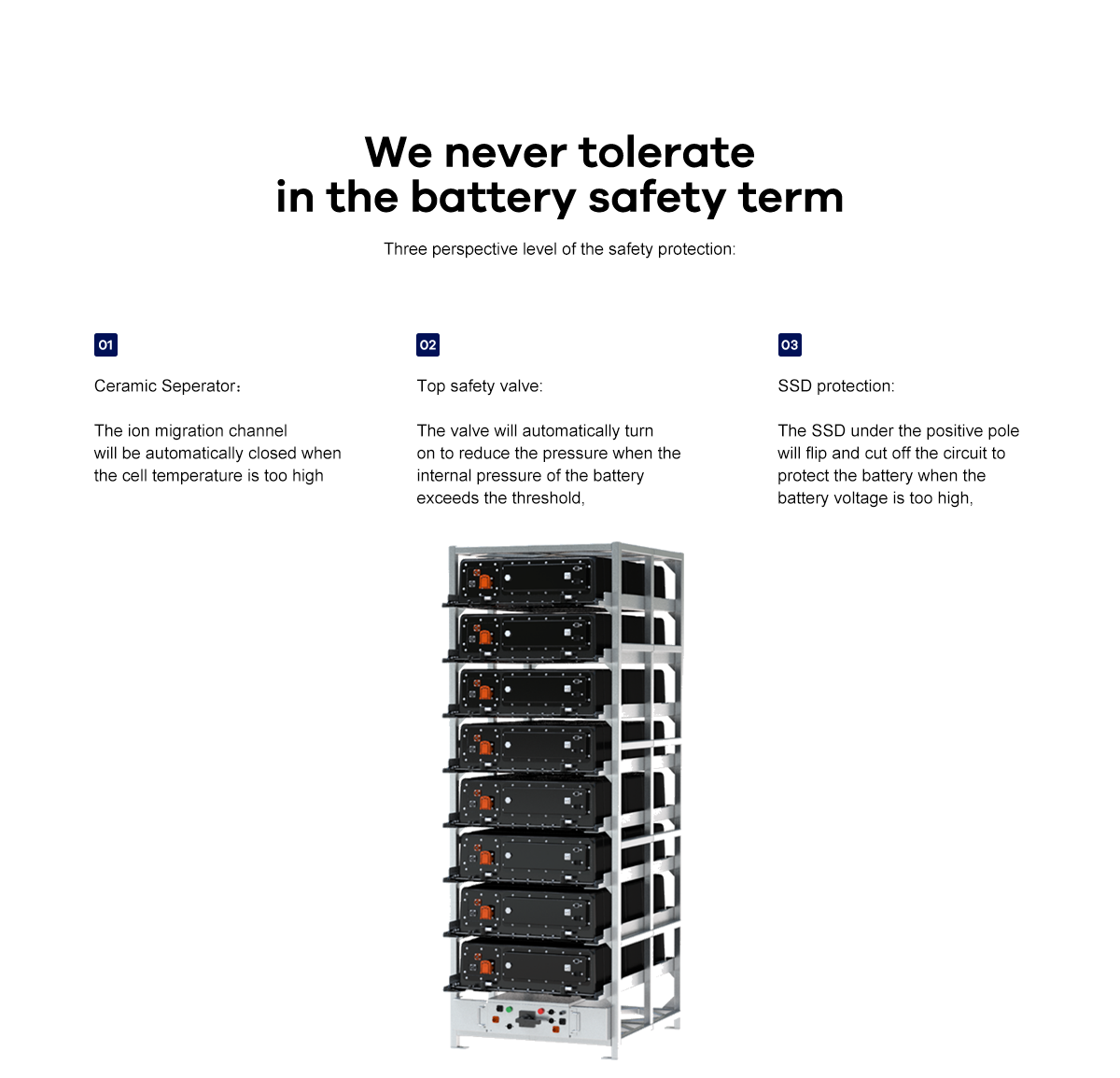

.png "314ah1p416s_(7).png")
.png "314ah1p416s_(8).png")

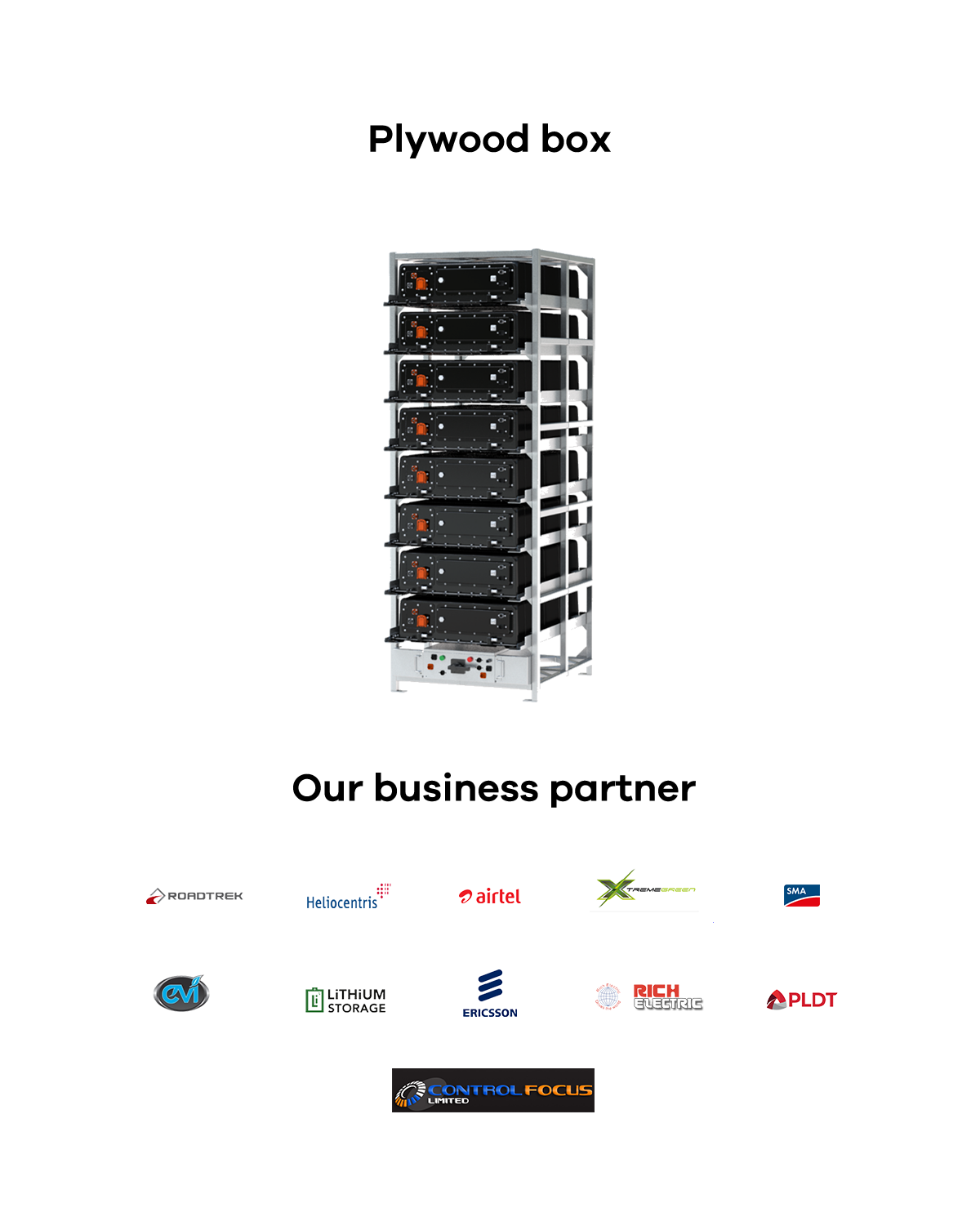

.png "314ah1p416s_(9).png")
.png "314ah1p416s_(10).png")
.png "314ah1p416s_(11).png")
