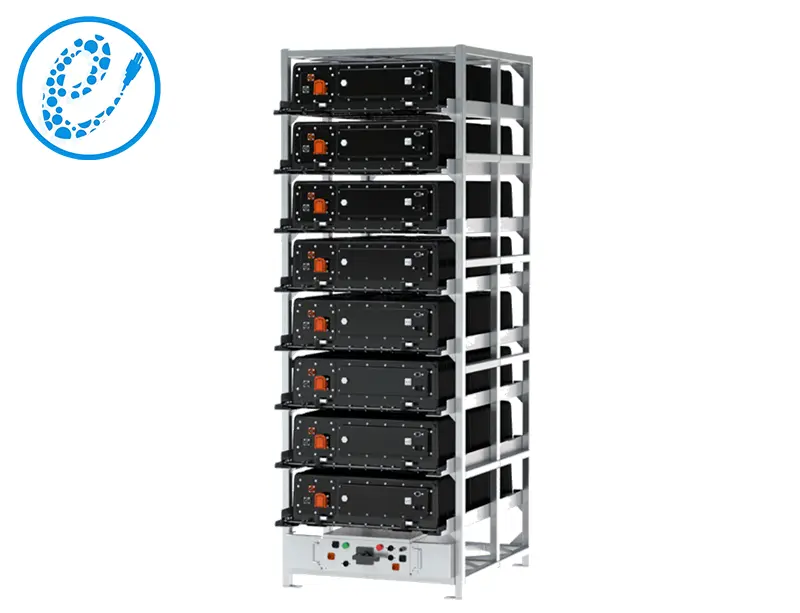

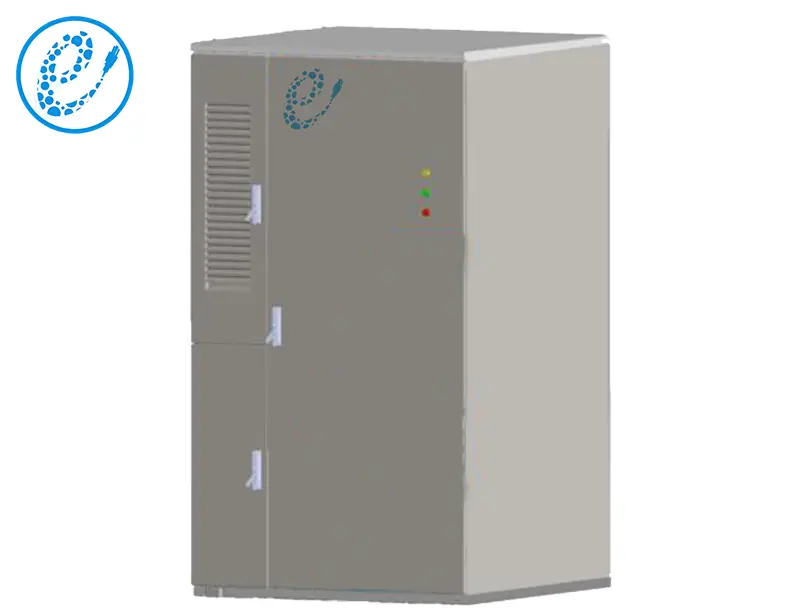

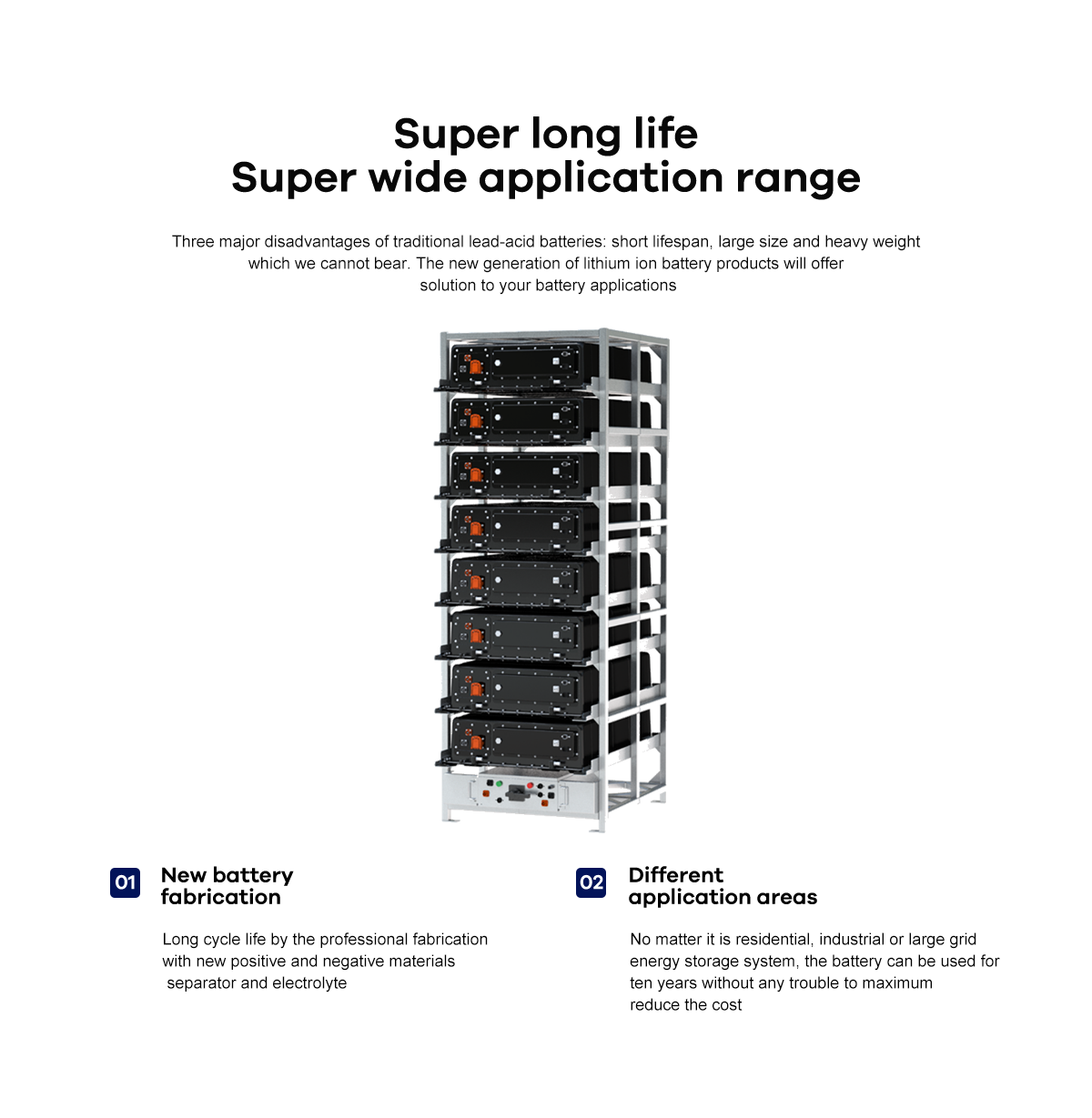

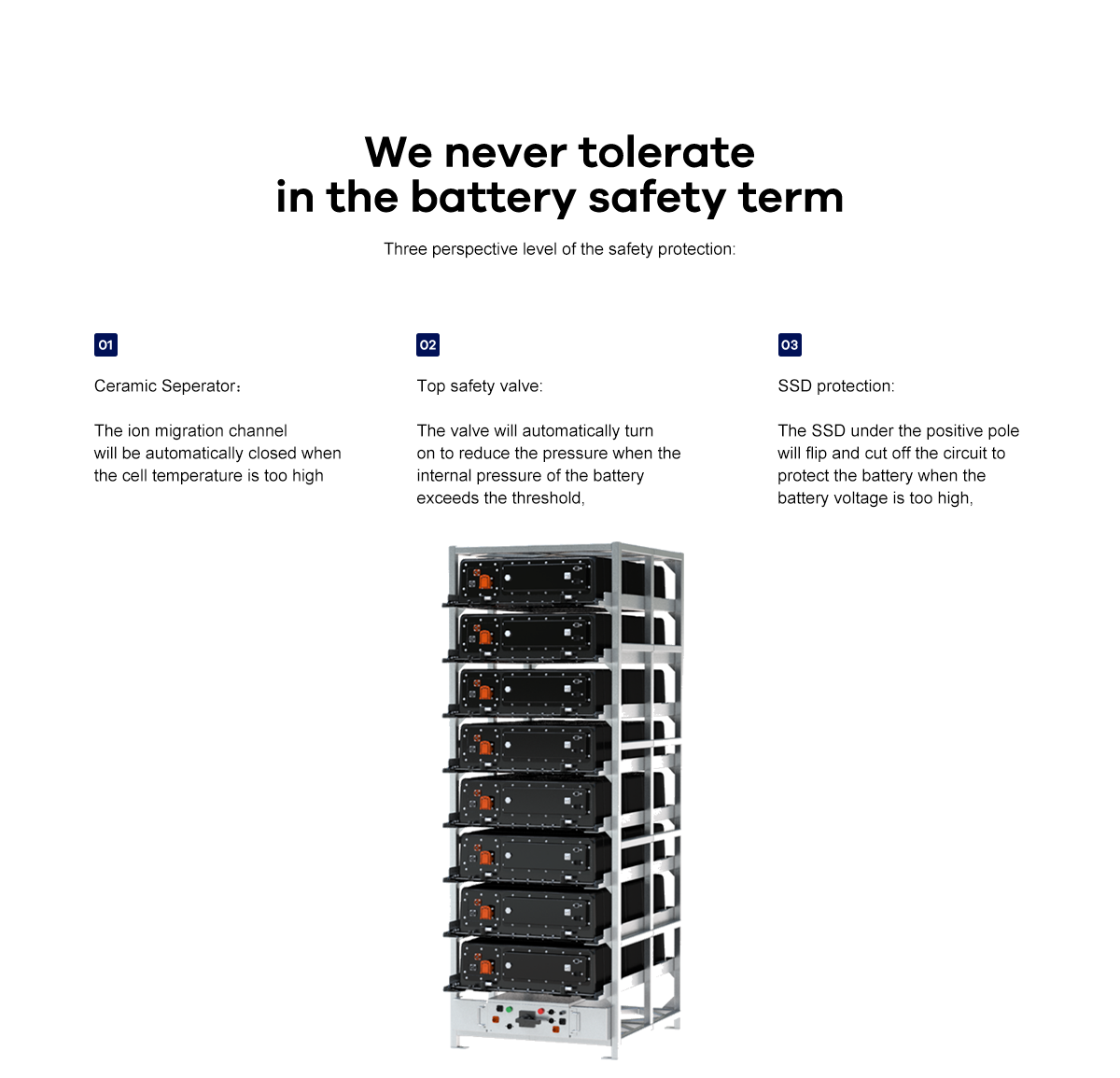

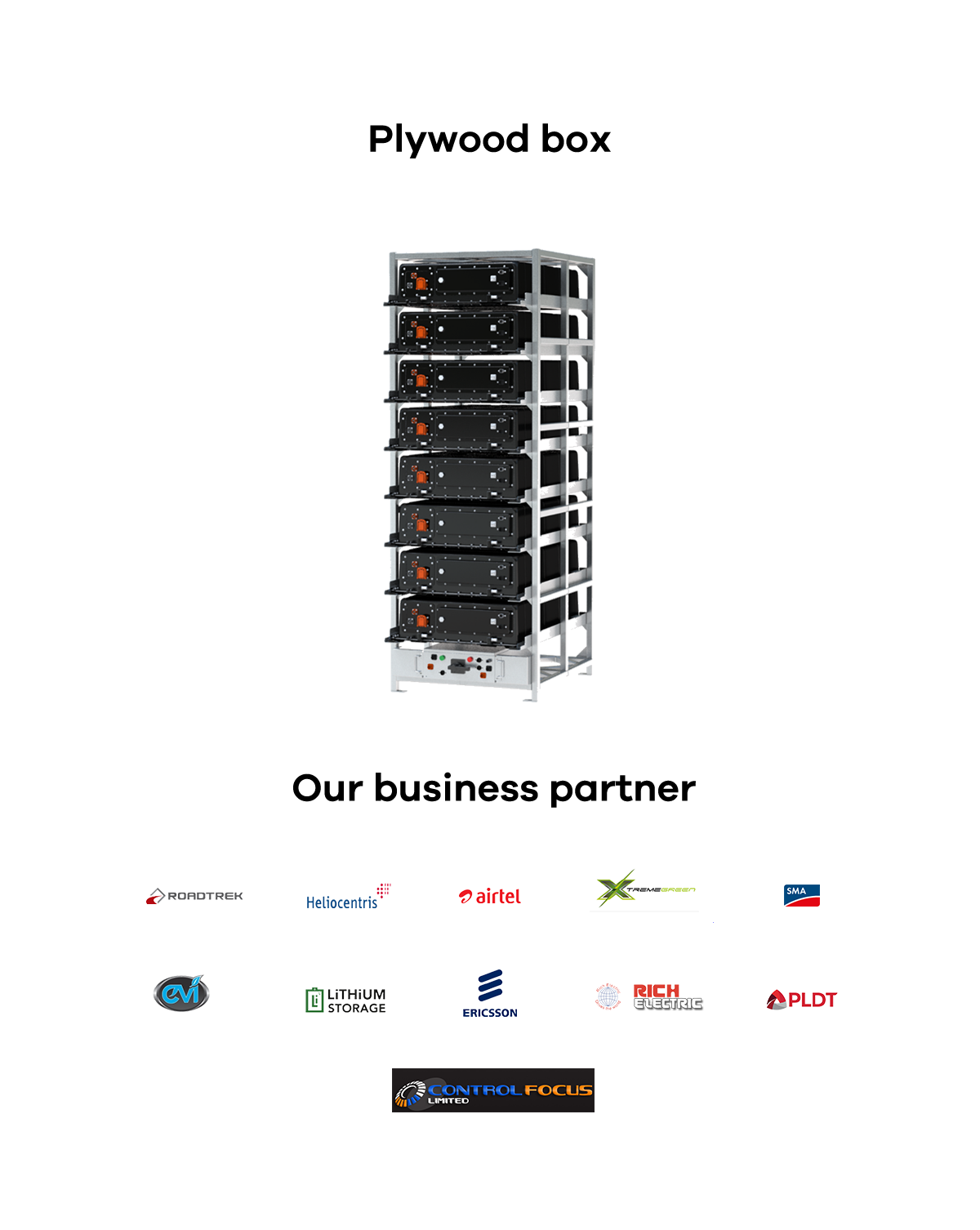

Large-scale lithium battery system offering 372 kWh commercial energy storage capacity, featuring 280Ah capacity, and configured in a 416-series arrangement. Designed for utility-scale energy storage applications, peak shaving, and load balancing.
| Item | Parameters | |
| SSXXXX02-1331.2V280A（280AH1P416S）Battery Pack | Nominal Voltage | 1331.2V |
| Rated Capacity（@ 20±5℃ 0.3C） | 280Ah | |
| Nominal Energy（@ 20±5℃ 0.3C/0.3C100%DOD） | ≈372.736kWh | |
| Nominal Charge Rate | 0.5P | |
| Nominal Discharge Rate | 0.5P | |
| Battery Configuration | 416 series of 3.2V280Ah cell | |
| Battery Operating Voltage Range | 1144~1497.6V | |
| Operating Temperature Range | 0～45℃ | |
| Storage Temperature Range | -10～55℃ | |
| Recommended Operating Range of SOC | 20%～100% | |
| SOC Requirement for long period idle and storage | ≈30% SOC | |
| Dimension | ≈960*1150*2600mm | |
| Weight | ≈2900kg | |
