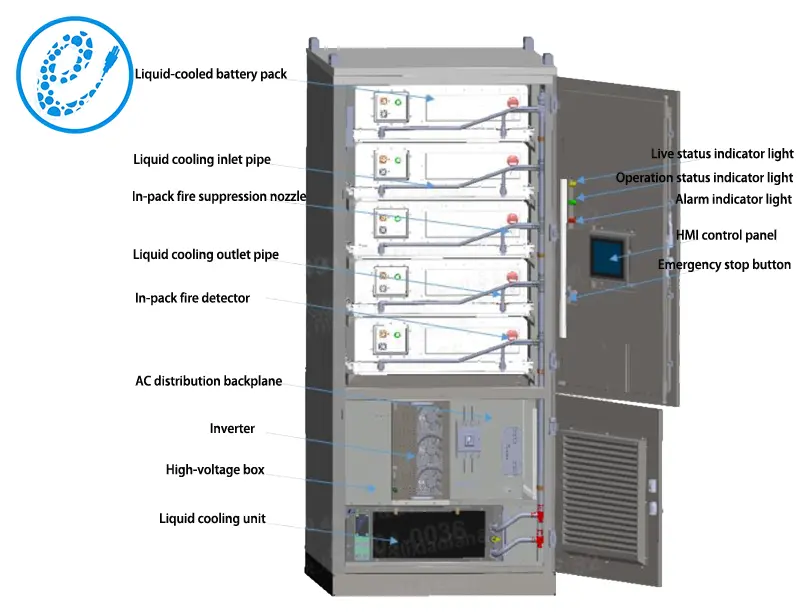

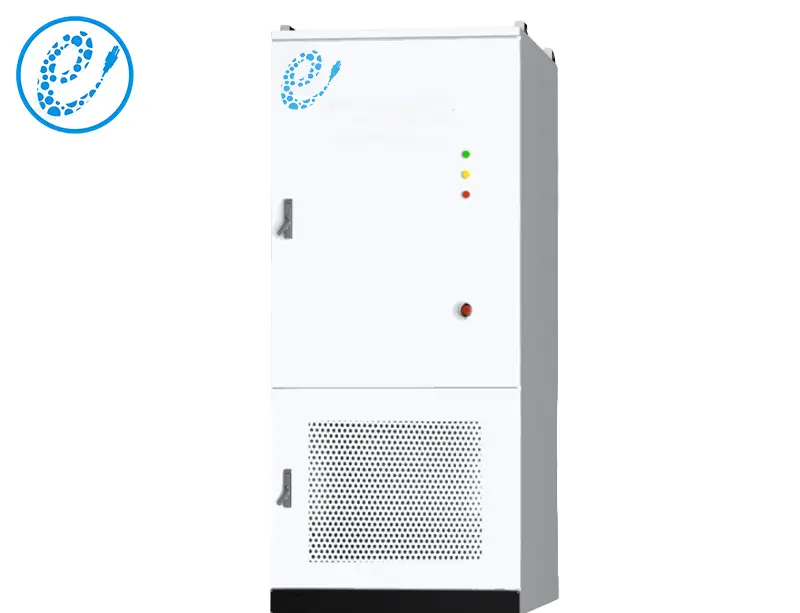

This outdoor energy storage cabinet features an all-in-one design with LiFePO₄ batteries, integrating BMS, liquid cooling, fire safety, monitoring, PCS, and auxiliary systems. It offers a capacity of 232.96 kWh, 100 kW output power, and AC380V voltage.
Equipped with independent distribution, temperature control, fire alarms, and grounding systems, it ensures safe and reliable operation. The cabinet supports applications like grid compensation, off-grid backup, peak shaving, and power quality optimization, enabling efficient, green energy use.

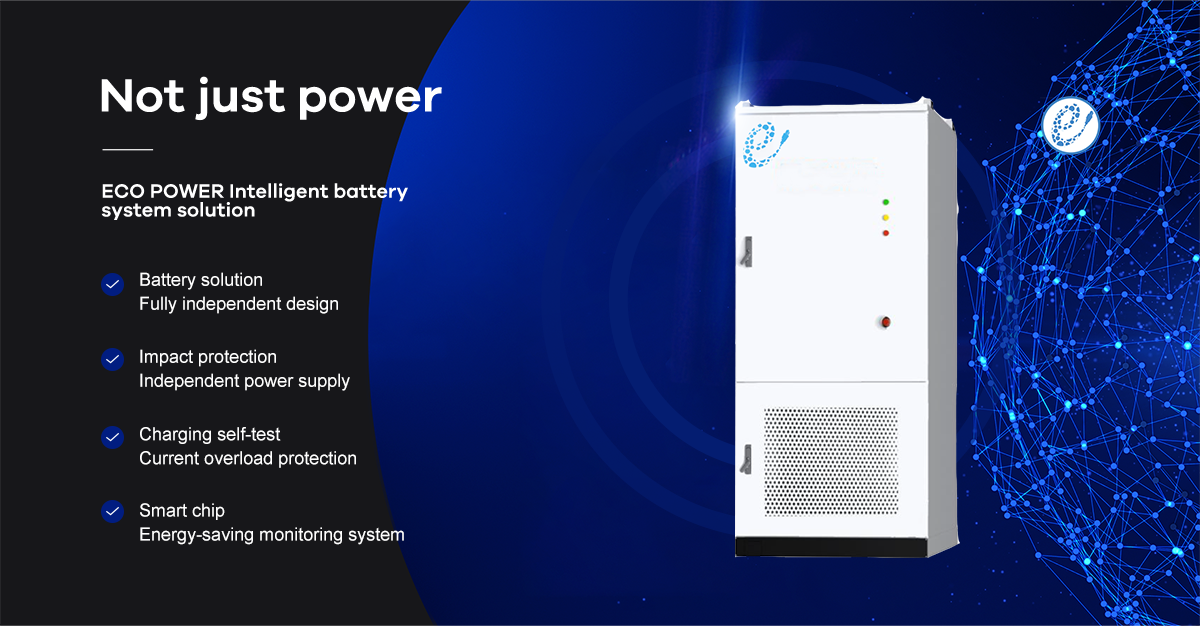

_(1).png "ss130502-832v280a(280ah1p260s)_(1).png")
| Model | SS130502-232KWh-832V280A(280AH1P260S) | Remarks |
| DC side | ||
| Rated energy storage capacity of the battery | 233kWh | |
| System rated voltage | 768V | |
| System voltage range | 672V~864V | |
| Battery type | Lithium iron phosphate battery (LFP) | |
| Series and parallel connection of battery packs | 1P*52S*5S | |
| Maximum charging and discharging current | 160A | |
| Communication side | ||
| Rated AC power | 100kW | |
| Rated AC current | 167A | |
| Rated AC voltage | 400V，3W+N+PE | |
| Rated AC frequency | 50/60Hz | |
| Total harmonic distortion rate of current THDI | <3% (rated power) | |
| Total harmonic distortion rate of voltage THDU | <3% (linear load) | |
| General parameters | ||
| Protection level | IP54 | |
| Local control display | 8.4-inch touch all-in-one machine (including 4G) | |
| relative humidity | 0~95% (non condensing) | |
| noise | Less than 78dB | |
| ambient temperature | -25 ℃~60 ℃ | |
| (Derating above 45 ℃) | ||
| Cooling method | Intelligent liquid cooling, 3kW | |
| Altitude | 3000m | |
| (Derating over 2000m) | ||
| BMS communication | Ethernet/RS485/CAN | |
| EMS communication | Ethernet/RS485/CAN | |
| Size (W * D * H) | 1000*1350*2346mm | |
| Weight (approximately) | 2.5T |

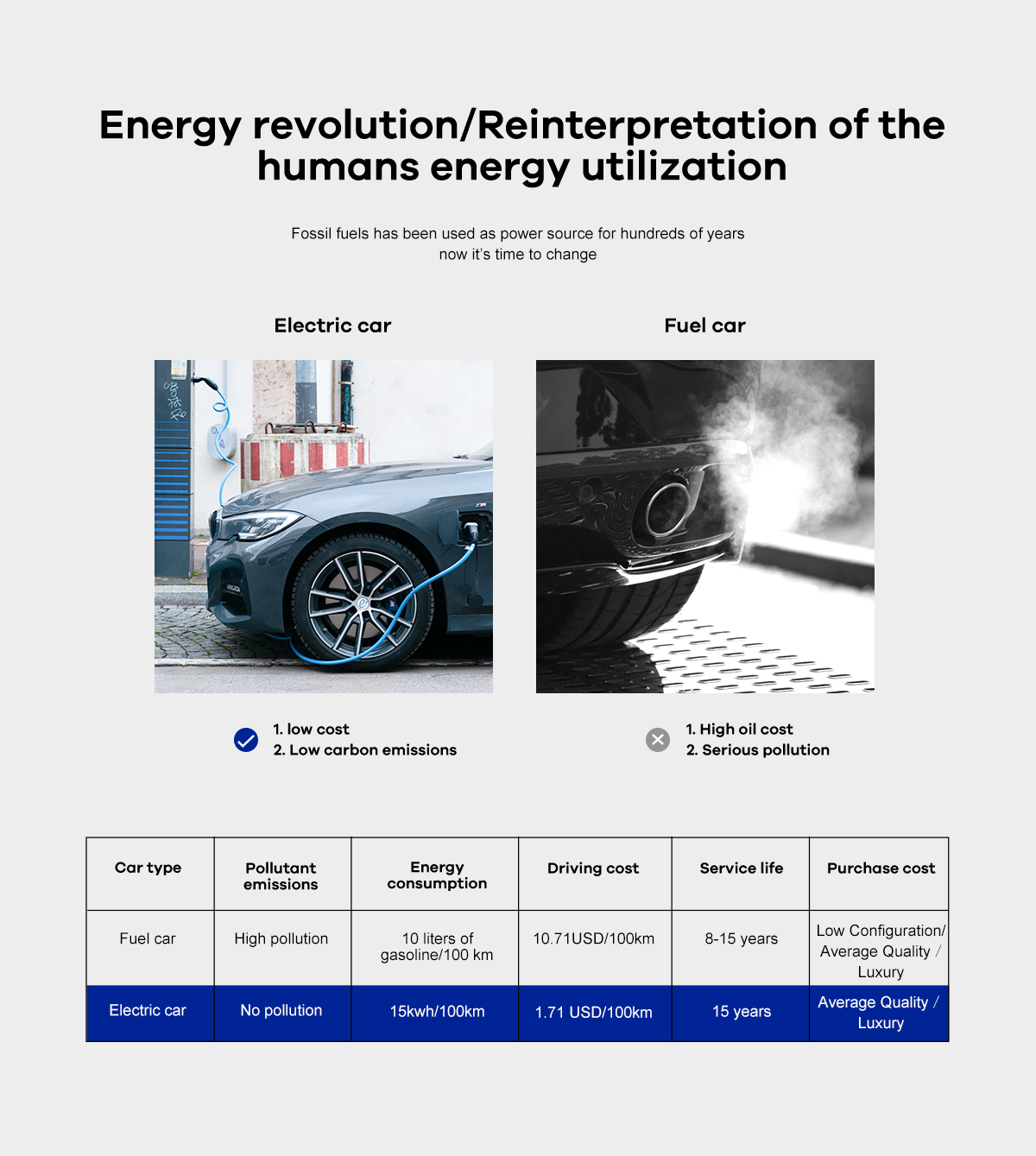

_(3).png "ss130502-832v280a(280ah1p260s)_(3).png")

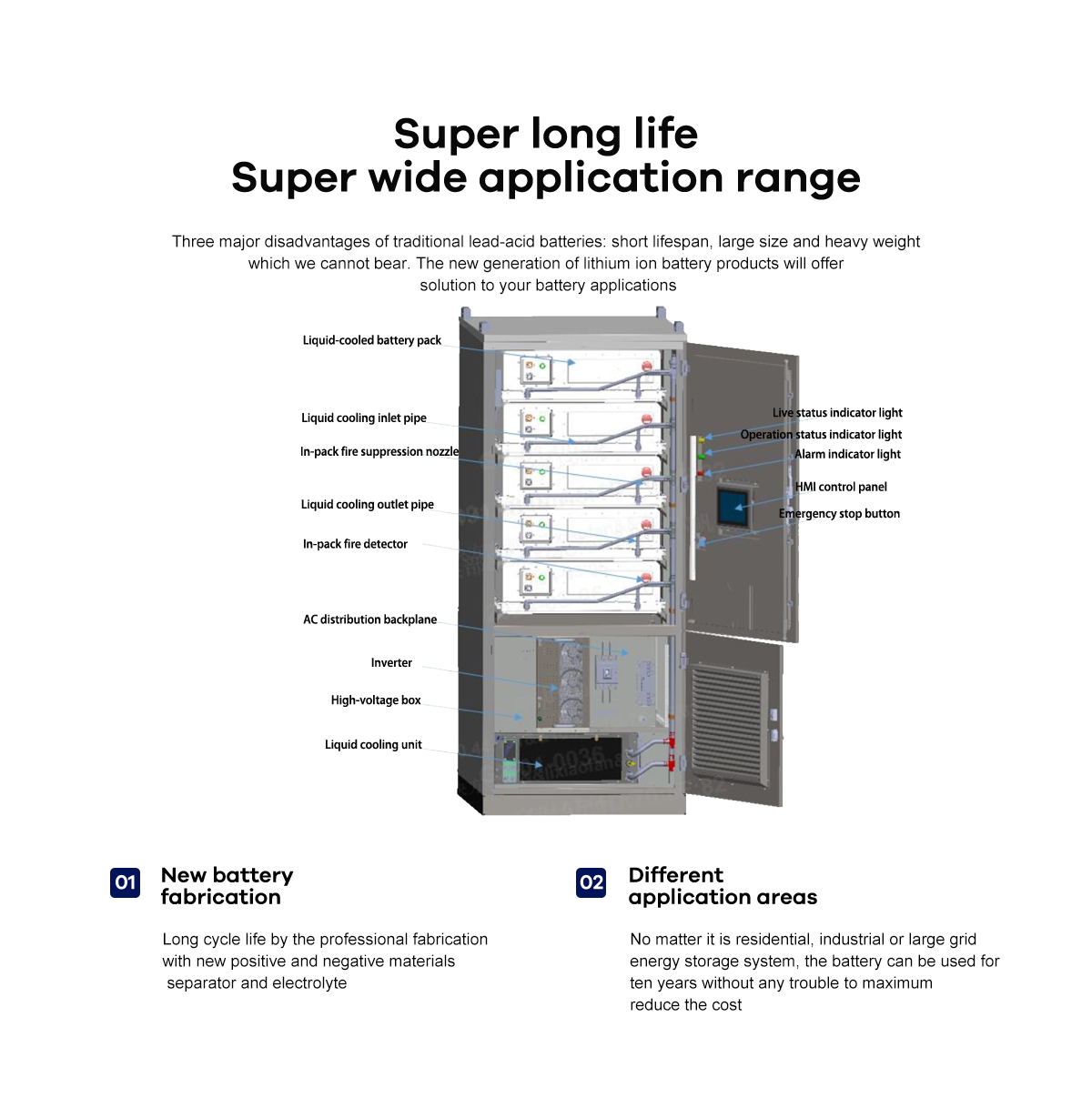

_(4).png "ss130502-832v280a(280ah1p260s)_(4).png")

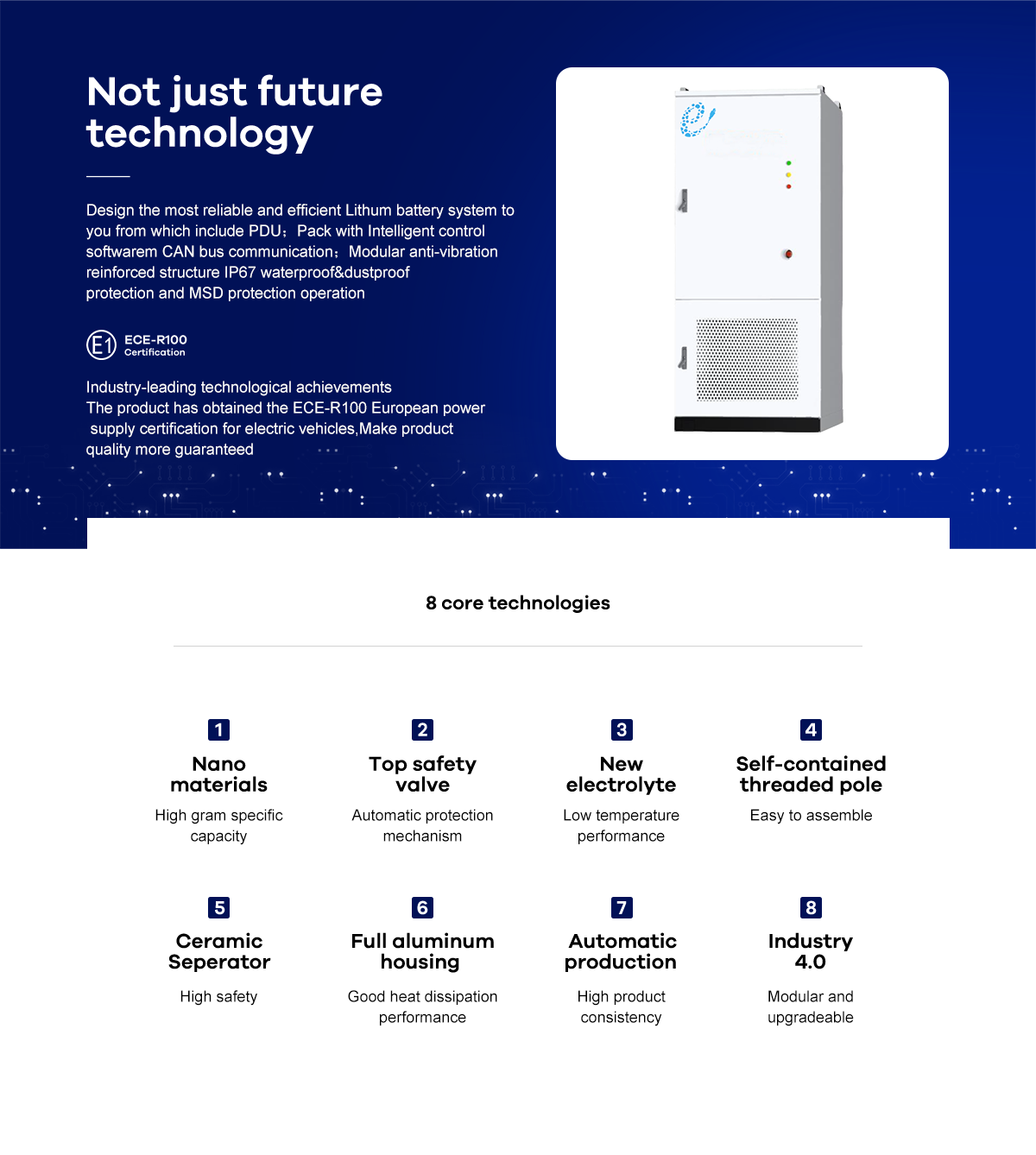

_(5).png "ss130502-832v280a(280ah1p260s)_(5).png")
_(6).png "ss130502-832v280a(280ah1p260s)_(6).png")

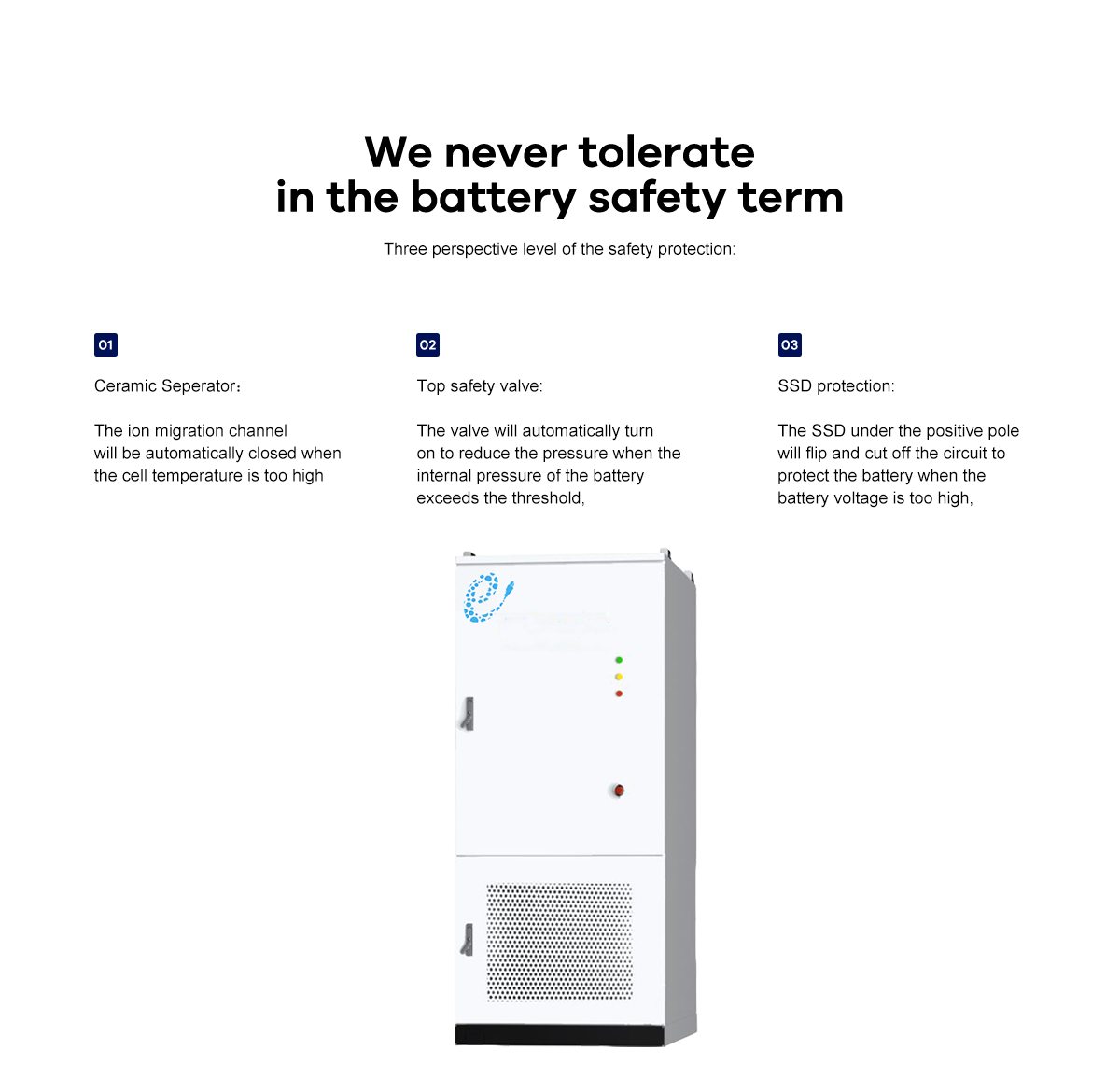

_(7).png "ss130502-832v280a(280ah1p260s)_(7).png")
_(11).png "ss130502-832v280a(280ah1p260s)_(11).png")
_(12).png "ss130502-832v280a(280ah1p260s)_(12).png")

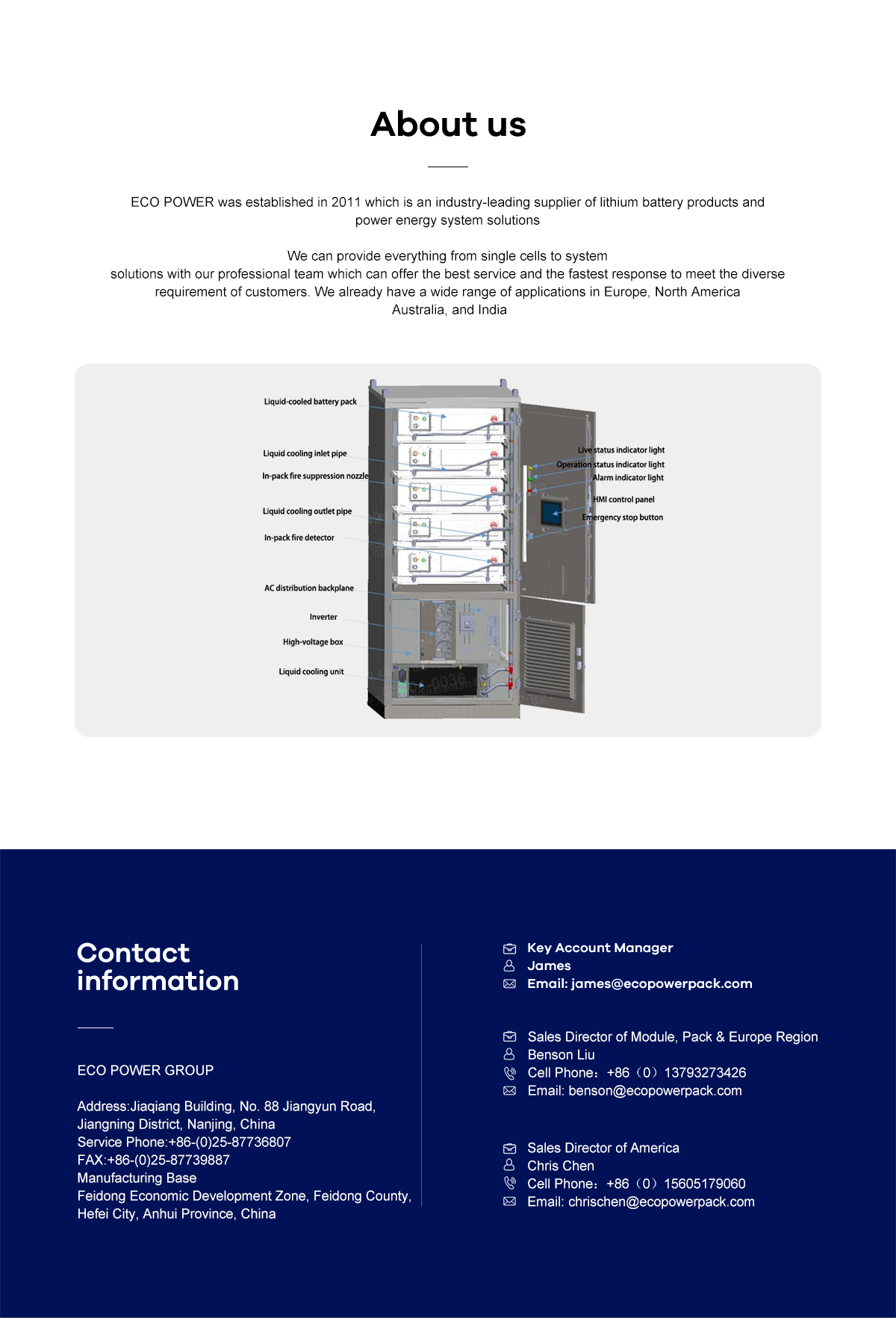

_(13).png "ss130502-832v280a(280ah1p260s)_(13).png")
