This outdoor energy storage system integrates LiFePO₄ batteries, BMS, PCS, and EMS into a single unit. It offers 241.152 kWh capacity, 125 kW output, and AC380V voltage, with features like fire safety, temperature control, and grid support, ensuring reliable and efficient green energy use.
_(1).png "ss130502-768v314a(314ah1p240s)_(1).png")
| Model | SS130502-241KWh-768V314A(314AH1P240S) | Remarks |
| DC side | ||
| Rated energy storage capacity of the battery | 241kWh | |
| System rated voltage | 768V | |
| System voltage range | 672V~864V | |
| Battery type | Lithium iron phosphate battery (LFP) | |
| Series and parallel connection of battery packs | 1P*16S*15S | |
| Maximum charging and discharging current | 180A | |
| AC side | ||
| Rated AC power | 125kW | |
| Rated AC current | 212A | |
| Rated AC voltage | 380/400V | |
| Rated AC frequency | 50Hz | |
| Total harmonic distortion rate of current THDI | <3% (rated power) | |
| Total harmonic distortion rate of voltage THDU | <3% (linear load) | |
| General parameters | ||
| Protection level | IP54 | |
| Local control display | 8.4-inch touch all-in-one machine (including 4G) | |
| relative humidity | 0~95% (non condensing) | |
| noise | Less than 80dB | |
| ambient temperature | -25 ℃~60 ℃ | |
| (Derating above 45 ℃) | ||
| Cooling method | Intelligent air cooling | |
| Altitude | 3000m | |
| (Derating over 2000m) | ||
| BMS communication | Ethernet/RS485/CAN | |
| EMS communication | Ethernet/RS485/CAN | |
| Size (W * D * H) | 1500*1050*2300 | |
| Weight (approximately) | 2.5T |
_(2).png "ss130502-768v314a(314ah1p240s)_(2).png")

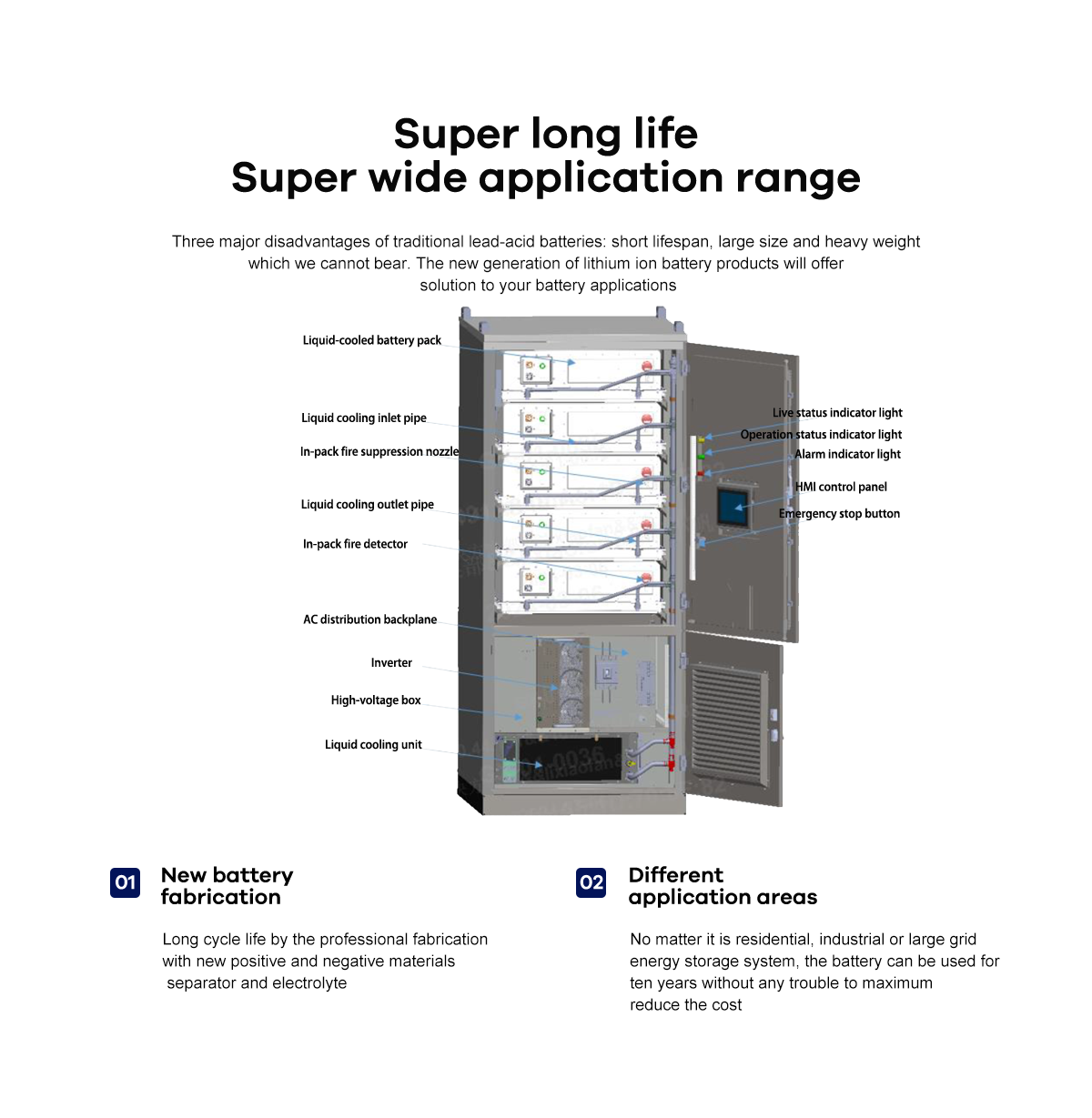

_(3).png "ss130502-768v314a(314ah1p240s)_(3).png")
_(4).png "ss130502-768v314a(314ah1p240s)_(4).png")
_(5).png "ss130502-768v314a(314ah1p240s)_(5).png")
_(6).png "ss130502-768v314a(314ah1p240s)_(6).png")
_(8).png "ss130502-768v314a(314ah1p240s)_(8).png")

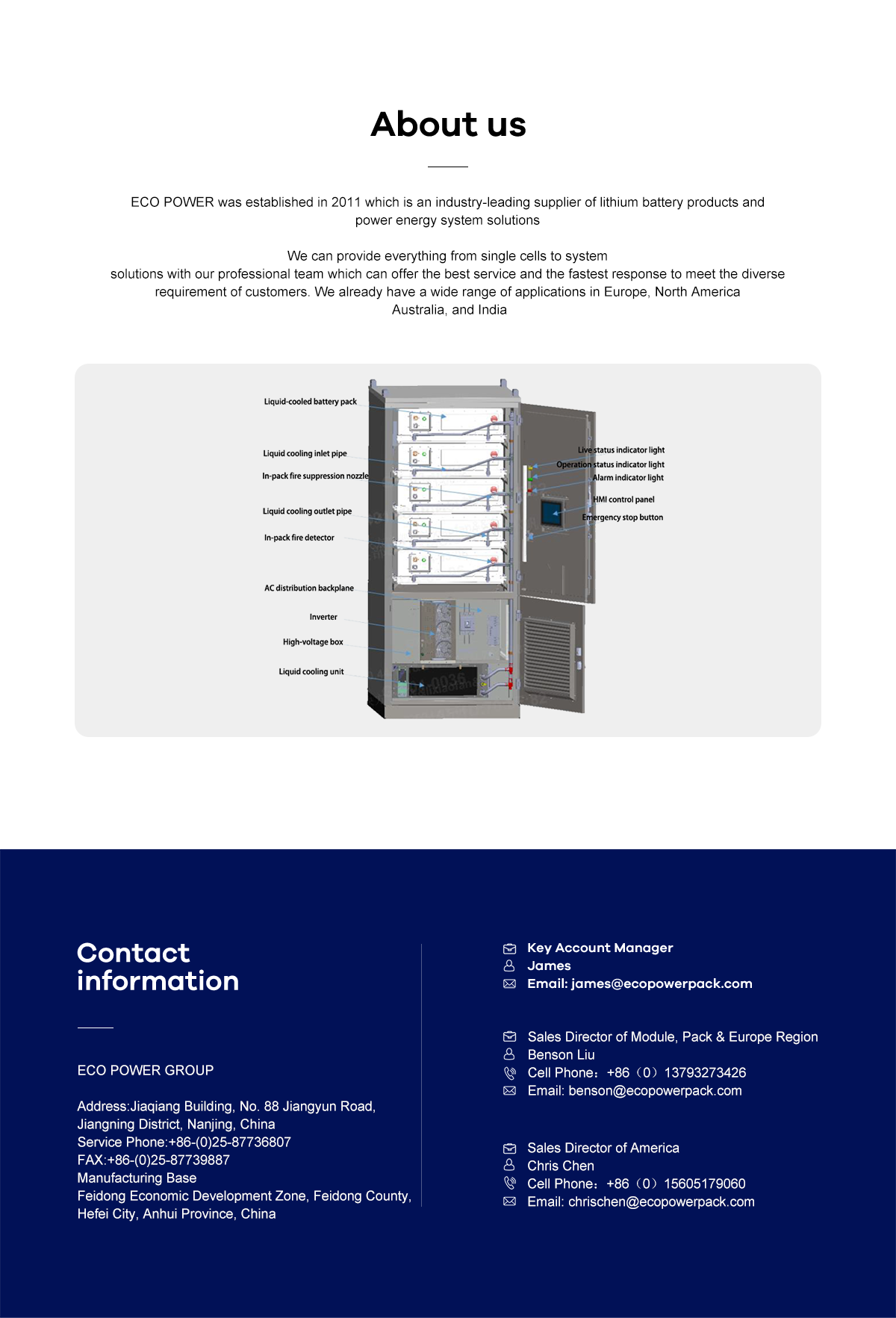

_(9).png "ss130502-768v314a(314ah1p240s)_(9).png")

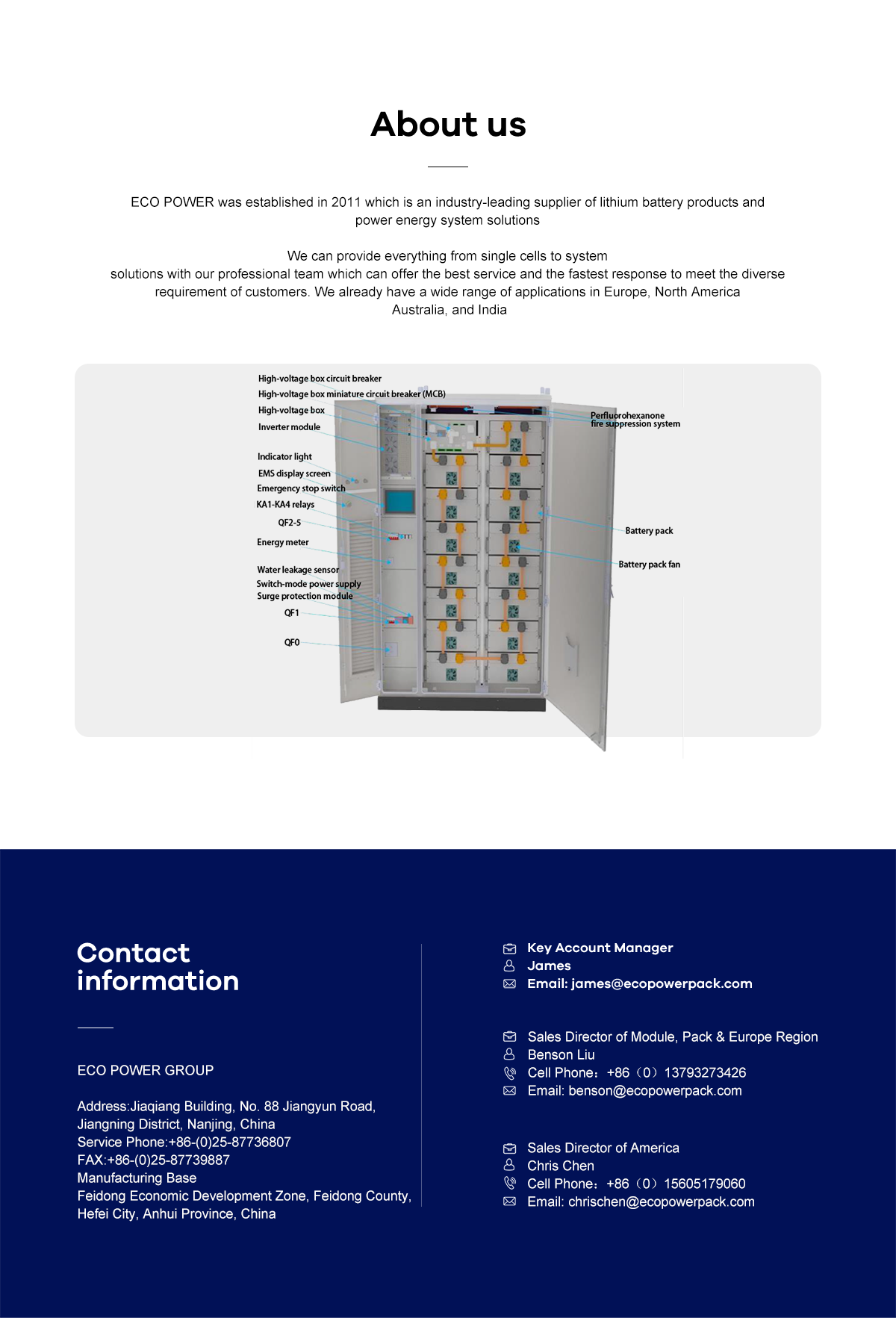

_(10).png "ss130502-768v314a(314ah1p240s)_(10).png")
