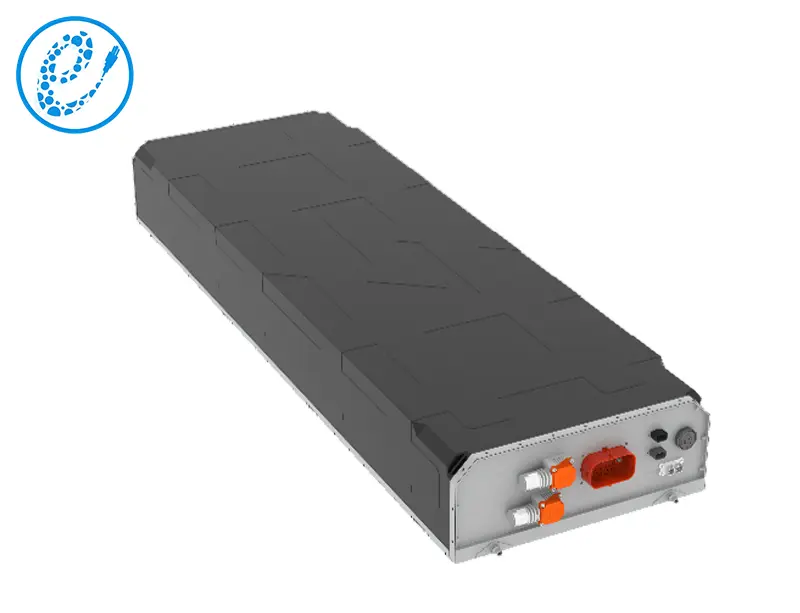

The PS13XX02-326.4V 268Ah lithium polymer battery cell is designed for light trucks, offering liquid cooling for optimal thermal management. With a maximum charge/discharge rate of 1C and an IP67 rating for dust and water resistance, it ensures reliable performance in diverse conditions. CE & UN38.3 certified.
.png "268ah1p102s_(1).png")
| No. | Items | EP-LFP268Ah STANDARD PACK | Note | |
| PS13XX02-326.4V268A | ||||
| 268AH1P102S | ||||
| 1 | Nominal voltage(V) | 326.4 | ||
| 2 | Operating voltage(V) | min | 255 | T＞0℃ |
| 3 | max | 372.3 | ||
| 4 | Nominal capacity(Ah) | 268 | ||
| 5 | Nominal energy（KWh ） | 87.475 | ||
| 6 | Cell Configuration | 1P102S | ||
| 7 | Maximum Charging Rate | 1C | ||
| 8 | Maximum Discharging Rate | 1C | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Cooling method | Liquid cooling | ||
| 12 | Heating method | Liquid heating | ||
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Protection level | IP67 | ||
| 15 | Weight | 573kg | ||
| 16 | Dimension L （mm） | 2056 | ||
| Dimension B （mm） | 640 | |||
| Dimension H （mm） | 250 | |||
High Reliability: The cells use a high-safety lithium iron phosphate (LFP) system, and the high-strength pack assembly design meets GB/T 31467.3 vibration safety standards.
Strong Mechanical Protection: IP68 protection rating, resistant to impacts from debris smaller than 15mm.
High Weather Resistance: Fully integrated thermal management system with liquid cooling and heating, supporting an operating temperature range of -30°C to +55°C, adaptable to various regional applications.
Long Service Life: 1C charging at 25°C, with system life ≥ 3,500 cycles.
.png "268ah1p102s_(2).png")
.png "268ah1p102s_(3).png")
.png "268ah1p102s_(4).png")
.png "268ah1p102s_(5).png")
.png "268ah1p102s_(6).png")
