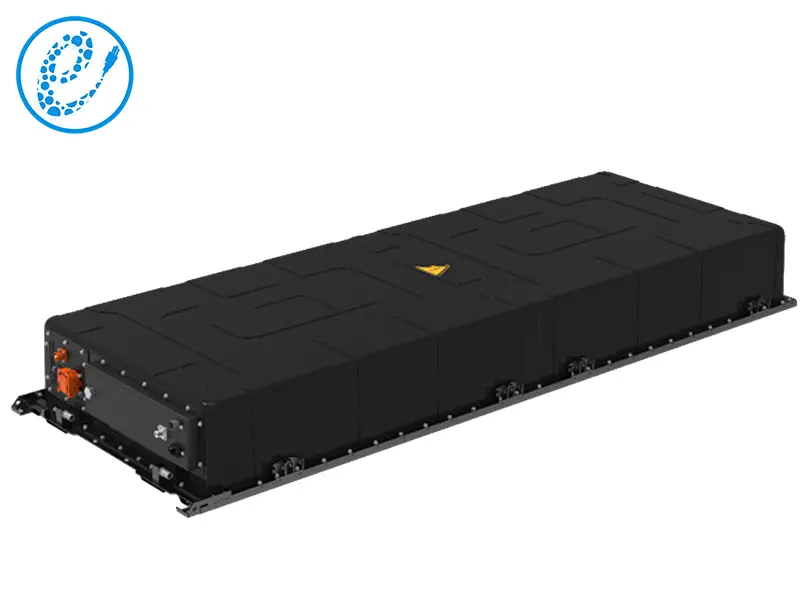

PS131502-332.8V314A(314AH1P104S) equipped with 314Ah LiFePO4 cells in a 1P104S configuration, this PACK battery box achieves a nominal voltage of 332.8V. Its robust design, high energy output, and long service life make it ideal for applications such as energy storage, electric transportation, and industrial power support.
_(1).png "ps131502-332.8v314a(314ah1p104s)_(1).png")
| No. | Items | EP-LFP314Ah STANDARD PACK | Note | |
| PS131502-332.8V314A | ||||
| 314AH1P104S | ||||
| 1 | Nominal voltage(V) | 332.8V | ||
| 2 | Operating voltage(V) | min | 260 | T＞0℃ |
| 3 | max | 379.6V | ||
| 4 | Nominal capacity(Ah) | 314 | ||
| 5 | Nominal energy（KWh ） | 104.4992 | ||
| 6 | Cell Configuration | 1P104S | ||
| 7 | Maximum continuous charging current | 200A | ||
| 8 | Maximum continuous discharging current | 200A | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Liquid cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Protection level | IP67 | ||
| 15 | Weight | 650±10kg | ||
| 16 | Dimension L （mm） | 2180±5 | ||
| Dimension B （mm） | 790±5 | |||
| Dimension H （mm） | 245±5 | |||
_(2).png "ps131502-332.8v314a(314ah1p104s)_(2).png")
_(3).png "ps131502-332.8v314a(314ah1p104s)_(3).png")
_(4).png "ps131502-332.8v314a(314ah1p104s)_(4).png")
_(5).png "ps131502-332.8v314a(314ah1p104s)_(5).png")
_(6).png "ps131502-332.8v314a(314ah1p104s)_(6).png")
_(7).png "ps131502-332.8v314a(314ah1p104s)_(7).png")
_(8).png "ps131502-332.8v314a(314ah1p104s)_(8).png")
_(9).png "ps131502-332.8v314a(314ah1p104s)_(9).png")
