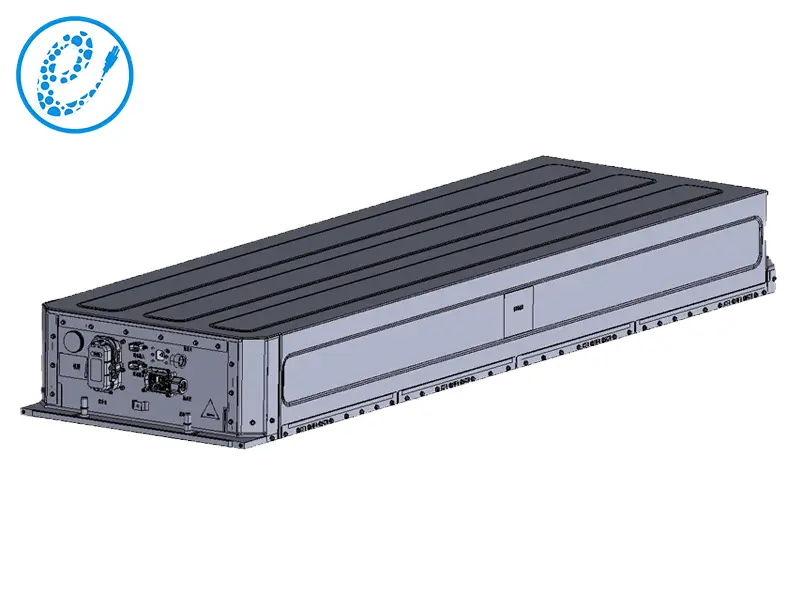

The PS10XX10-309.12V 324Ah battery pack is designed for heavy truck applications, featuring liquid cooling and heating for optimal thermal management. With a maximum system voltage of 1000V and an IP68 rating for superior dust and water resistance, this lithium battery power pack ensures reliable and efficient performance in demanding environments.
| No. | Items | EP-LFP324Ah STANDARD PACK | Note | |
| PS10XX10-309.12V324A | ||||
| 324AH1P96S | ||||
| 1 | Nominal voltage(V) | 309.12 | 1/3C | |
| 2 | Operating voltage(V) | min | 240 | T＞0℃ |
| 3 | max | 350.4 | ||
| 4 | Nominal capacity(Ah) | 324 | ||
| 5 | Nominal energy（KWh ） | 101.08 | 1/3C | |
| 6 | Cell Configuration | 1P96S | ||
| 7 | Maximum continuous charge/current(A) | 1.2C | ||
| 8 | Maximum continuous discharge current(A) | 1C | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Cooling method | Liquid cooling | ||
| 12 | Heating method | Liquid heating | ||
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Protection level | IP68 | ||
| 15 | Dimension L （mm） | 2265 | ||
| Dimension B （mm） | 640 | |||
| Dimension H （mm） | 257 | |||
High Reliability: The cells use a high-safety lithium iron phosphate (LFP) system, and the high-strength pack assembly design meets GB/T 31467.3 vibration safety standards.
High Voltage Design: Supports a maximum system voltage of 1000V, meeting platform requirements.
High Weather Resistance: Fully integrated thermal management system with liquid cooling and heating, supporting an operating temperature range of -30°C to +55°C, adaptable to various regional applications.
Long Service Life: 1C charging at 25°C, with system life ≥ 4,500 cycles.
.png "324ah1p96s_(2).png")
.png "324ah1p96s_(3).png")
.png "324ah1p96s_(4).png")
.png "324ah1p96s_(5).png")
.png "324ah1p96s_(6).png")
