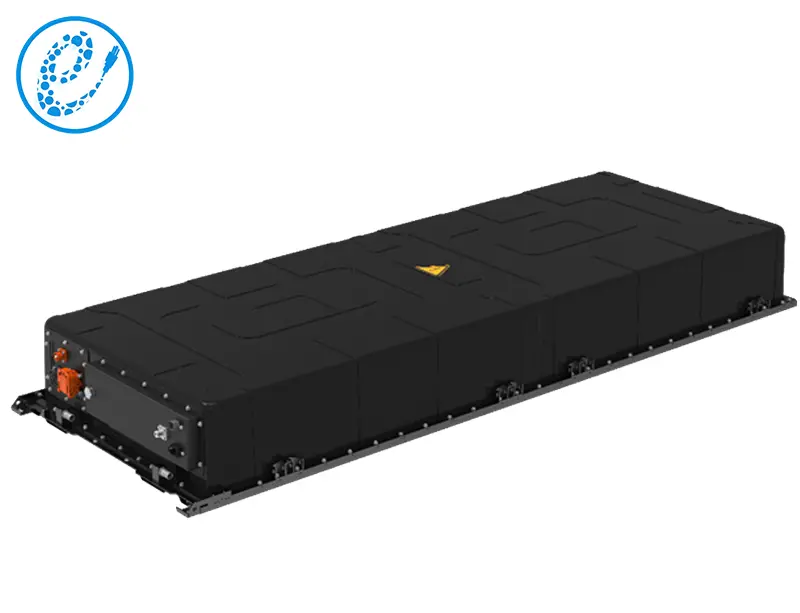

The PACK battery box features 280Ah LiFePO4 cells arranged in a 1P104S configuration, providing a nominal voltage of 332.8V. Its high energy capacity, reliability, and extended lifespan make it well-suited for energy storage systems, electric mobility, and industrial power backup applications.
_01.png "PS131502-332.8V280A(280AH1P104S)_01.png")
| No. | Items | EP-LFP280Ah STANDARD PACK | Note | |
| PS131502-332.8V280A | ||||
| 280AH1P104S | ||||
| 1 | Nominal voltage(V) | 332.8V | ||
| 2 | Operating voltage(V) | min | 260 | T＞0℃ |
| 3 | max | 379.6V | ||
| 4 | Nominal capacity(Ah) | 280 | ||
| 5 | Nominal energy（KWh ） | 93.184 | ||
| 6 | Cell Configuration | 1P104S | ||
| 7 | Maximum continuous charging current | 180A | ||
| 8 | Maximum continuous discharging current | 180A | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Liquid cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Protection level | IP67 | ||
| 15 | Weight | 640±10kg | ||
| 16 | Dimension L （mm） | 2300±10 | ||
| Dimension B （mm） | 780±10 | |||
| Dimension H （mm） | 245±10 | |||
_03.png "PS131502-332.8V280A(280AH1P104S)_03.png")
_04.png "PS131502-332.8V280A(280AH1P104S)_04.png")
_05.png "PS131502-332.8V280A(280AH1P104S)_05.png")
_06.png "PS131502-332.8V280A(280AH1P104S)_06.png")
_07.png "PS131502-332.8V280A(280AH1P104S)_07.png")
_11.png "PS131502-332.8V280A(280AH1P104S)_11.png")
_12.png "PS131502-332.8V280A(280AH1P104S)_12.png")
_13.png "PS131502-332.8V280A(280AH1P104S)_13.png")
