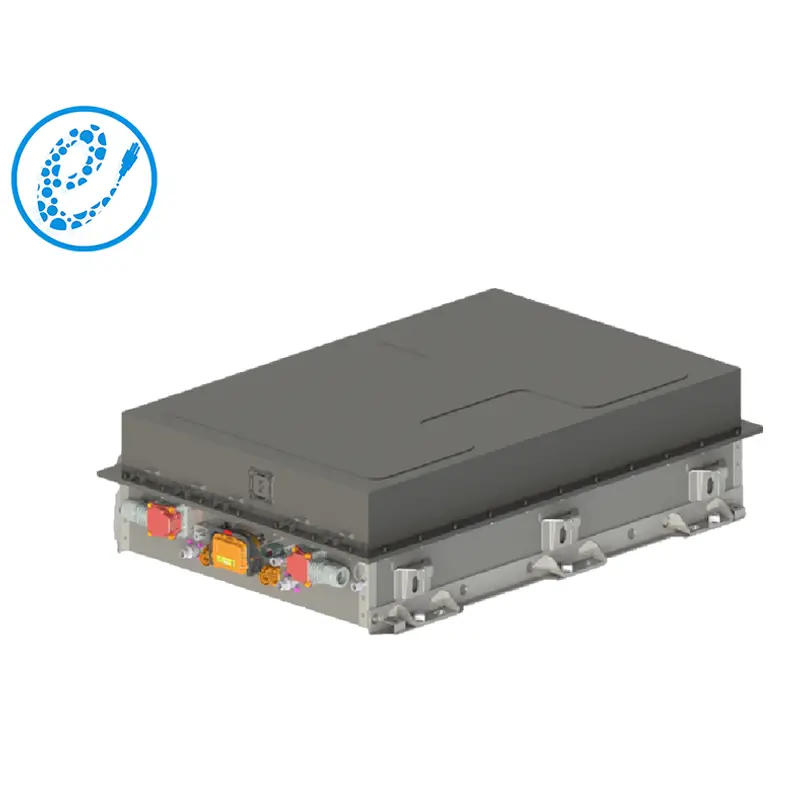

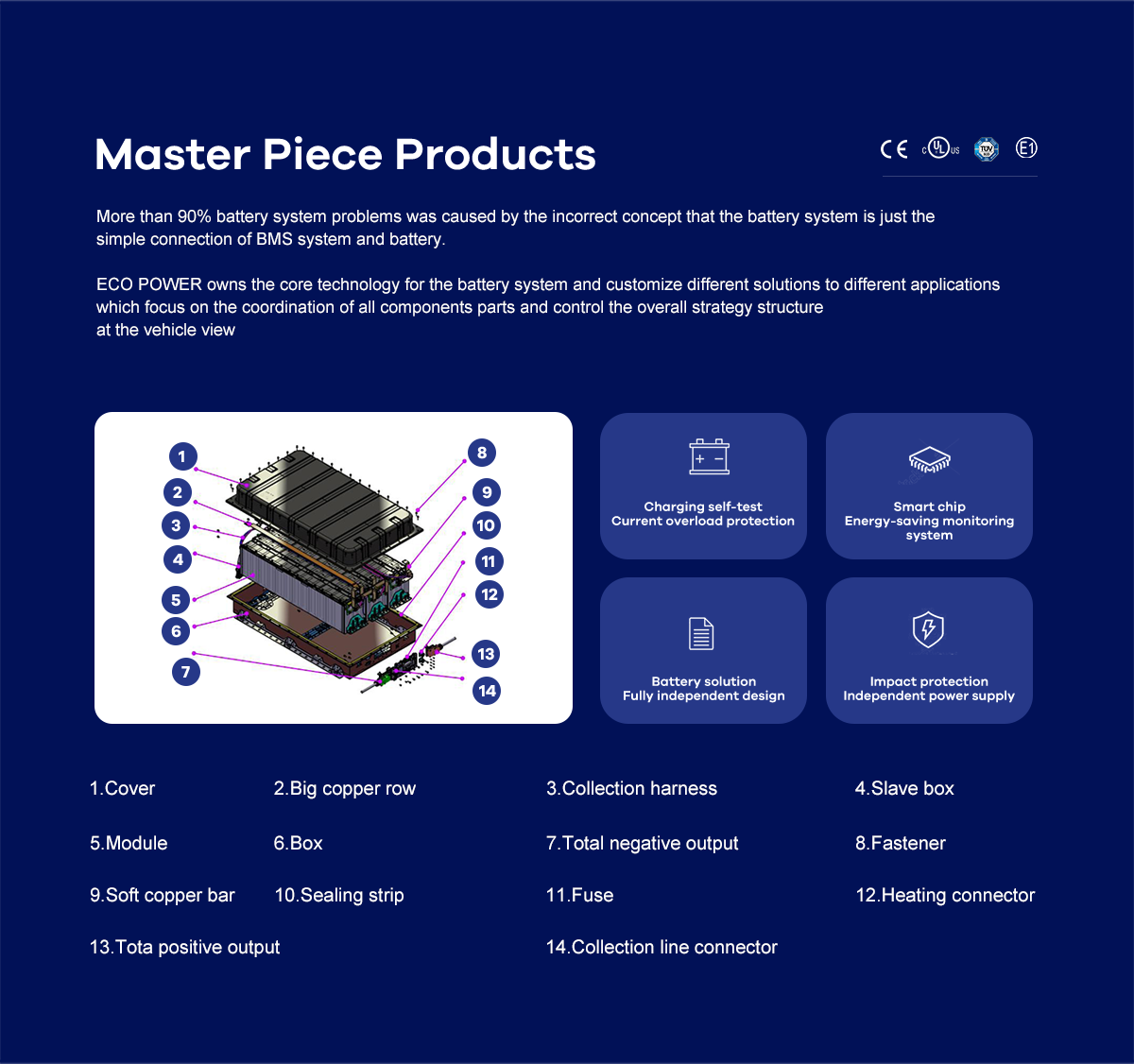

PS050605-96V280A (280AH1P30S) lithium ion pack adopts the 1P30S configuration, including one parallel battery pack (1P) and 30 series battery packs (30S), as well as a rated voltage of 96V and a rated capacity of 280Ah. The design of the pack does not use a module, and the cells are assembled individually, which reduces the difficulty of assembly, improves the production efficiency and facilitates the replacement of the cells individually. The design of the pack does not use modules, and the cells are assembled individually.
| No. | Items | EP-LFP 280Ah STADARD PACK | Note | |
| PS050605-96V280A | ||||
| 280AH1P30S | ||||
| 1 | Nominal voltage(V) | 96 | ||
| 2 | Operating voltage(V) | min | 75 | |
| 3 | max | 109.5 | ||
| 4 | Cell Configuration | 1P30S | ||
| 5 | Nominal energy（KWh ） | 26.88 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 280 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 280 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 280 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 950 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently equipped with a full range of VDA series batteries, which can be adapted to most commercial vehicle models in the market (bus, heavy truck, mining dump, construction machinery, etc.)
