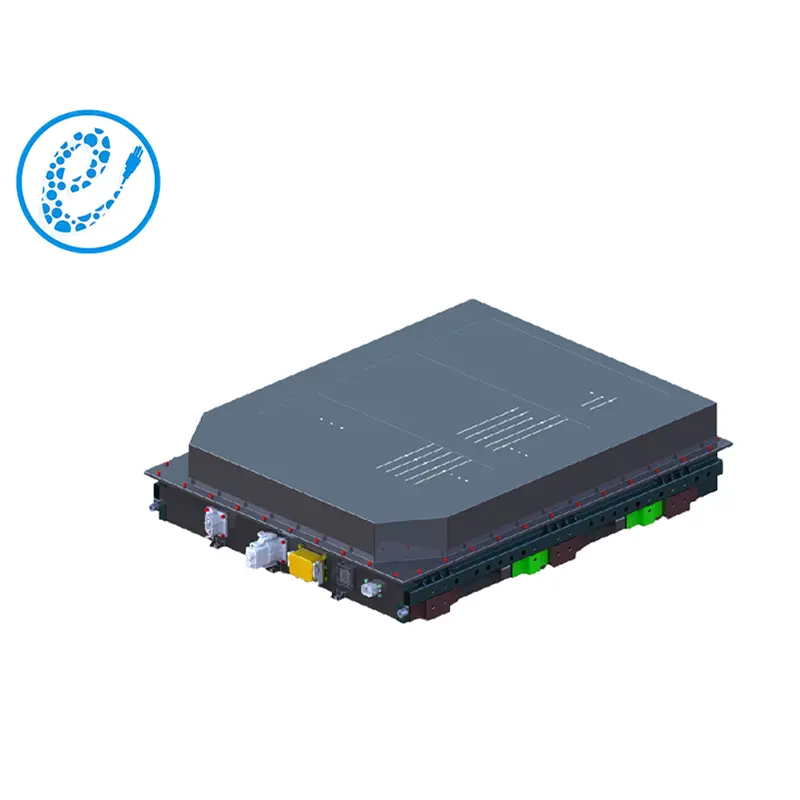

The PS050605-331.66V150A (150AH1P103S) is designed with a rated voltage of 331.66V and a rated capacity of 150Ah. The pack's small form factor allows for seamless integration into energy systems, making installation easy and simple. And because the weight is reduced with fewer parts, the mass energy density can also be increased, which is reflected in the improved range of the device.
| No. | Items | EP-PS050605-LFP150Ah STADARD PACK | Note | ||||
| 322V150AH1P100S | 325.22V150AH1P101S | 328.44V150AH1P102S | 331.66V150AH1P103S | ||||
| 1 | Nominal voltage(V) | 322 | 325.22 | 328.44 | 331.66 | ||
| 2 | Operating voltage(V) | min | 250 | 252.5 | 255 | 257.5 | |
| 3 | max | 365 | 368.65 | 372.3 | 375.95 | ||
| 4 | Cell Configuration | 1P100S | 1P101S | 1P102S | 1P103S | ||
| 5 | Nominal energy（KWh ） | 48.3 | 48.783 | 49.266 | 49.749 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 150 | 25±2℃ | ||||
| 7 | Maximum continuous charge current（A） | 150 | 25±2℃ | ||||
| 8 | Maximum continuous discharge current（A） | 150 | 25±2℃ | ||||
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | ||||
| 10 | SOC operating range（%） | 20~100 | |||||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | ||||
| 12 | cooling method | Natural cooling | |||||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | ||||
| 14 | Dimension L (mm) | 1143 | |||||
| Dimension B (mm) | 890 | ||||||
| Dimension H (mm) | 245 | ||||||
The battery box is currently assembled with 150Ah cells, which is a battery box specially developed for mini-van and medium-sized van.
