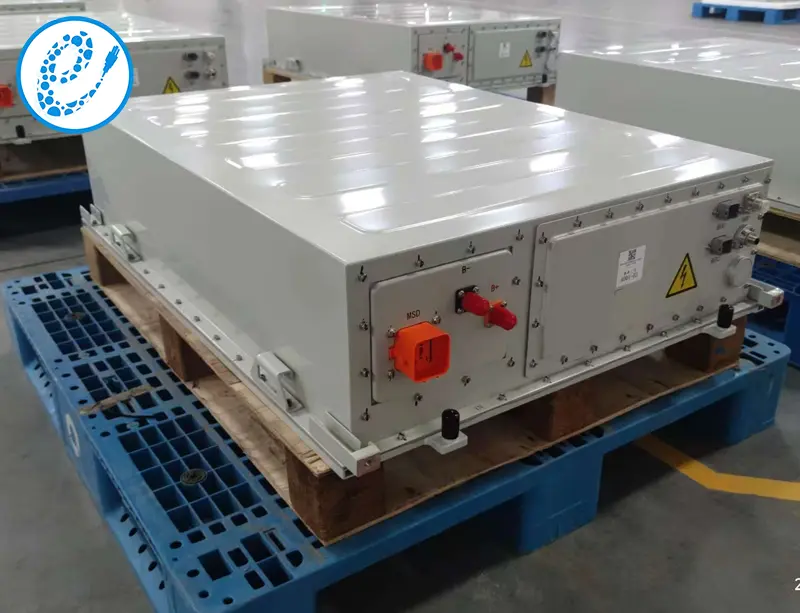

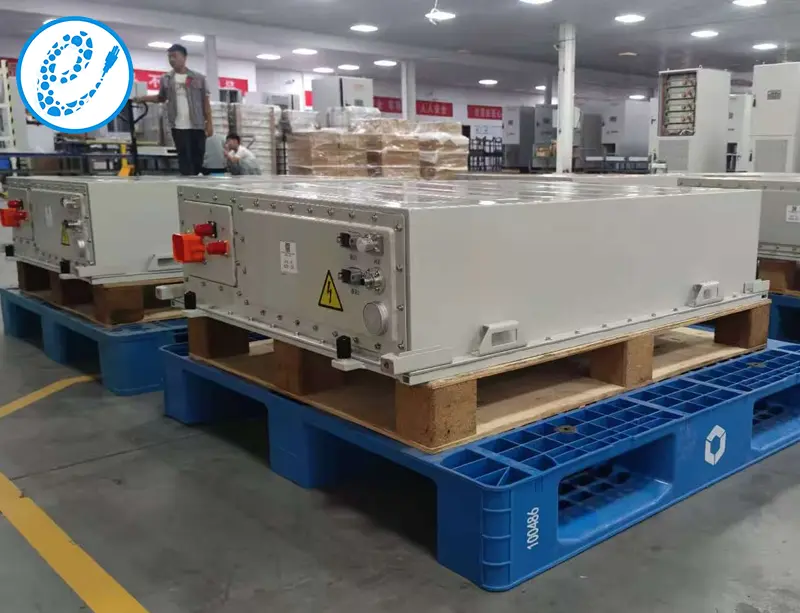

This energy storage battery PACK consists of 48 LiFePO4 cells (314Ah) in a 1P48S configuration, offering a capacity of 48.2304kWh and a nominal voltage of 153.6V. The rack is assembled from four 1P12S modules connected in series, utilizing adhesive cell stacking and laser-welded aluminum busbars for high mechanical reliability and excellent conductivity.
| No. | Items | EP-LFP314Ah STANDARD PACK | Note | |
| PC34XXXX-153.6V314A | ||||
| 314AH1P48S | ||||
| 1 | Nominal voltage(V) | 153.6V | ||
| 2 | Operating voltage(V) | min | 129.6V | |
| 3 | max | 172.8V | ||
| 4 | Nominal capacity(Ah) | 314 | ||
| 5 | Nominal energy（KWh ） | 48.2304kWh | @25℃±2 | |
| 6 | Cell Configuration | 1P48S | ||
| 7 | Maximum continuous charging power | 0.5P | ||
| 8 | Maximum continuous discharging power | 0.5P | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥500MΩ@2500VDC | ||
| 11 | Pack cooling method | Liquid cooling | ||
| 12 | Pack heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Weight | 310±5kg | ||
| 15 | Dimension L （mm） | 1056±2mm | ||
| Dimension B （mm） | 790±2mm | |||
| Dimension H （mm） | 245±1mm | |||
