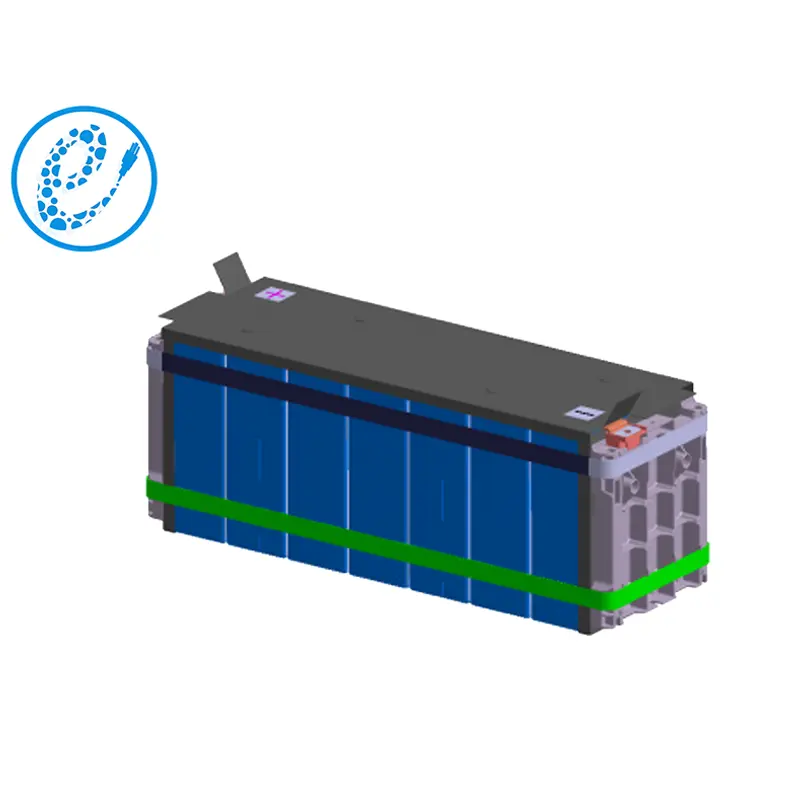

The MS0302-32.0V280A-(280AH1P10S) battery has a 32 volt voltage rating and 280Ah capacity rating. This higher voltage configuration improves efficiency, reduces power loss and enhances performance compared to traditional 12V or 24V batteries. It is also equipped with an internal BMS battery management system, which can accurately control the charging and discharging of the module according to the actual needs of the battery, avoiding the loss of the battery during prolonged charging or discharging, thus improving the efficiency of the battery's use.
| No. | Items | EP-LFP280Ah STANDARD MODULE | Note | |||
| MS0302-22.4V280A | MS0302-25.6V280A | MS0302-32.0V280A | ||||
| 280AH1P7S | 280AH1P8S | 280AH1P10S | ||||
| 1 | Nominal voltage(V) | 22.4 | 25.6 | 32 | ||
| 2 | Operating voltage(V) | min | 17.5 | 20 | 25 | T＞0℃ |
| 3 | max | 25.55 | 29.2 | 36.5 | ||
| 4 | Nominal capacity(Ah) | 280 | 1/3C，100%DOD | |||
| 5 | Nominal energy（KWh ） | 6.272 | 7.168 | 8.96 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P7S | 1P8S | 1P10S | ||
| 7 | Maximum continuous charge current（A） | 140 | ||||
| 8 | Maximum continuous discharge current（A） | 140 | ||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 280 | ||||
| 10 | SOC operating range（%） | 10~90 | ||||
| 11 | Insulation requirements(MΩ) | ≥20 | ||||
| 12 | Module cooling method | Natural cooling | ||||
| 13 | Module heating film | No | Or heating film | |||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||
| 15 | Dimension L （mm） | 565.9 | 637.9 | 786.3 | ||
| Dimension B （mm） | 178 | 178 | 178 | |||
| Dimension H （mm） | 214 | 214 | 214 | |||
