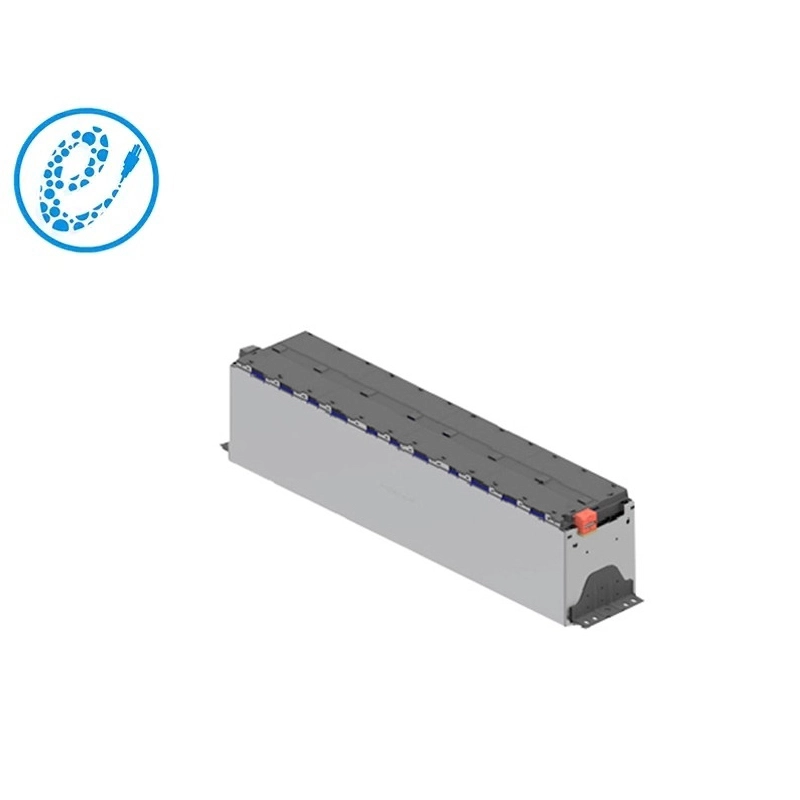

MS19XX-25.6V230A-(230Ah1P8S) Li-ion battery charging module has a capacity of 230Ah and a rated voltage of 25.6V, which can meet the needs of a wide range of applications, such as rear power supply, AGV power supply and so on.
| No. | Items | EP-LFP100Ah STANDARD MODULE | Note | |
| MS19XX-25.6V230A | ||||
| 230Ah1P8S | ||||
| 1 | Nominal Voltage | 25.6V | ||
| 2 | Operating voltage(V) | min | 21.6V | Cell 2.7V~3.65V |
| 3 | max | 29.2V | ||
| 4 | Nominal Capacity | 230AH | 25±2℃ | |
| 5 | Nominal energy (KWh) | 5.888 | 25±2℃ | |
| 6 | Cell Configuration | 1P8S | ||
| 7 | Max. Charge Current | 115/0.5C | ||
| 8 | Max. Discharge Current | 115/0.5C | ||
| 9 | Charge Temperature | 0-55/°C | ||
| 10 | Discharge Temperature | -30-55/°C | ||
| 11 | Cycle Life | 6000times | ||
| 12 | Battery Size(mm) | 495x 175x210 | ||
| 13 | Battery Weight | 38±2kg | ||
| 14 | Warranty | 2 Years | ||
Core Innovation
*Energy efficiency ≥ 94%@0.5P room temperature
*Flexible module process, easy maintenance
*Compact design, light weight
*Small internal resistance, stable discharge
